275VAC Polypropylene 100nF Film Capacitor X2 For Power Supply EMI Suppression
275VAC Polypropylene 100nF Film Capacitor X2 For Power Supply EMI Suppression
275VAC Polypropylene 100nF Film Capacitor X2 For Power Supply EMI Suppression
275VAC Polypropylene 100nF Film Capacitor X2 For Power Supply EMI Suppression
275VAC Polypropylene 100nF Film Capacitor X2 For Power Supply EMI Suppression
275VAC Polypropylene 100nF Film Capacitor X2 For Power Supply EMI Suppression
275VAC Polypropylene 100nF Film Capacitor X2 For Power Supply EMI Suppression
275VAC Polypropylene 100nF Film Capacitor X2 For Power Supply EMI Suppression
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCF18
Certification :
SGS( RoHS), UL
Place of Origin :
China
MOQ :
5000pcs
Price :
0.018~0.02 USD/pcs
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
12~15 working days
Packaging Details :

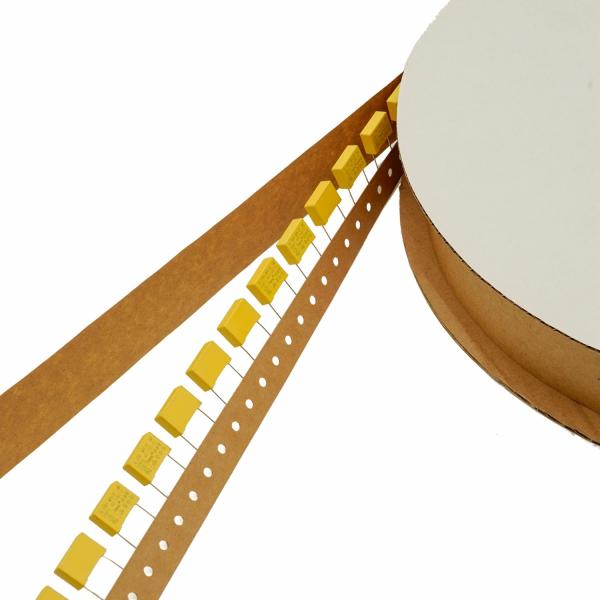

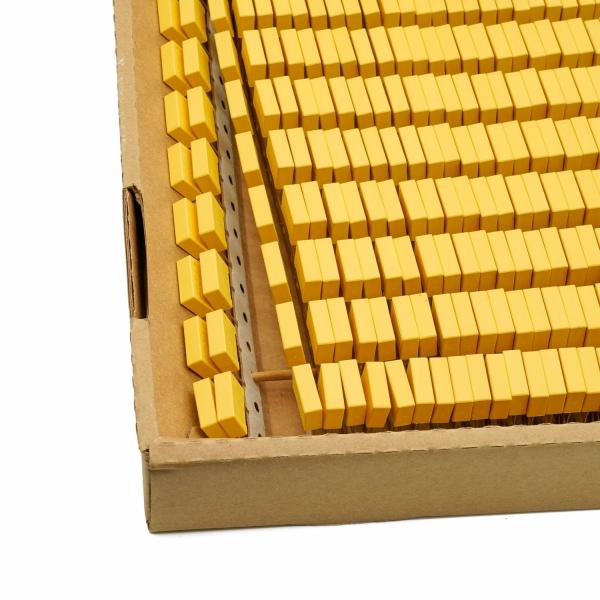

Bulk, Tape
Capacitance :
100nF
Voltage :
275VAC
Pitch :
15mm
Tolerance :
+/-10%
Description

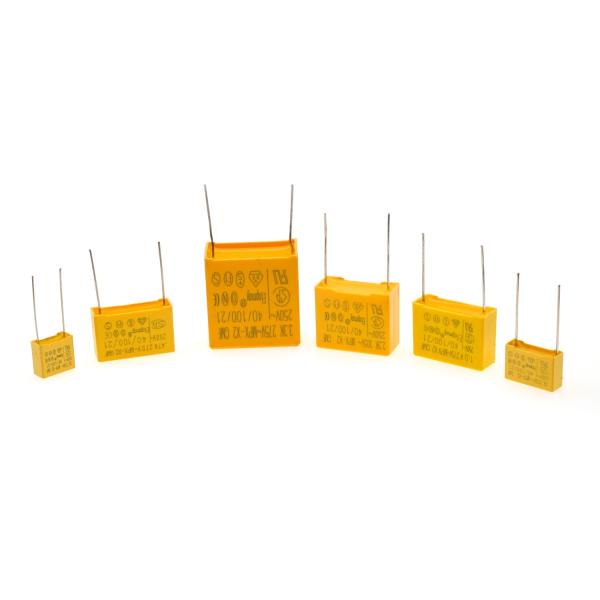

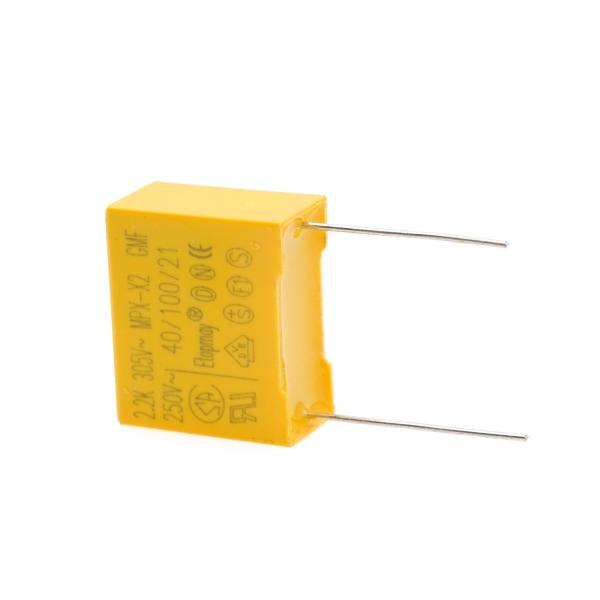

Metallized Polypropylene Film X2 Capacitor for Power Supply EMI Suppression 100nF 275VAC

Features

  • Box type provides the identical outer appearance
  • Very Low Loss at high frequency, suitable for high current
  • High Insulation resistance, long life due to self-healing effect
  • Withstanding 2.5kV impulse voltage, Class X2
  • As an across-the-line type noise suppression capacitor, and Suitable for AC purpose

Outline Drawing

Non-inductive, wound with metallized polypropylene film as the

dielectric/electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin.

Specifications

Reference Standard GB/T14472-1998 (IEC 60384-14)

275VAC Polypropylene 100nF Film Capacitor X2 For Power Supply EMI Suppression
Climatic Category 40/110/21
Rated Voltage 275VAC
Capacitance Range 0.1uF
Capacitance Tolerance 10%(K)
Voltage Proof 4.3UR(5s)
Dissipation Factor

≤0.15% CR ≤ 1.0uF

≤0.3% CR >1.0uF(20℃ ,10KHz)

Insulation Resistance

(20℃ ,1min)

≥30000MΩ (CR≤ 0.33 uF)

≥10000S (CR＞0.33 uF)

Dimensions

Capacitance

(uF)

W(mm)

±1.0

T(mm)

±1.0

H(mm)

±1.0

P(mm)

±1.0

d￠ ( mm)

±0.05
0.0047 18.0 5.0 10.0 15.0 0.8
0.0047 13.0 5.0 11.0 10.0 0.6
0.01 18.0 5.0 10.0 15.0 0.8
0.01 13.0 5.0 11.0 10.0 0.6
0.015 18.0 5.0 10.0 15.0 0.8
0.022 17.0 5.0 11.0 15.0 0.8
0.033 18.0 5.5 10.0 15.0 0.8
0.047 18.0 5.0 10.0 15.0 0.8
0.047 13.0 5.0 11.0 10.0 0.6
0.056 18.0 5.0 11.0 15.0 0.8
0.068 18.0 5.0 10.0 15.0 0.8
0.082 17.0 5.0 10.0 15.0 0.8
0.1 13.0 5.0 11.0 10.0 0.6
0.1 18.0 5.0 11.0 15.0 0.8
0.15 13.0 6.0 12.0 10.0 0.6
0.15 18.0 6.0 13.5 15.0 0.8
0.22 17.0 7.5 15.5 15.0 0.8
0.22 25.0 6.0 14.5 22.5 0.8
0.33 17.0 9.5 16.5 15.0 0.8
0.33 26.5 7.0 16.5 22.5 0.8
0.47 17..0 11 19.0 15.0 0.8
0.47 26.5 8.5 17.0 22.5 0.8
0.56 26.5 10.0 19.0 22.5 0.8
0.68 26.5 10.0 19.0 22.5 0.8
0.68 31.5 11.0 20.0 27.5 0.8
0.82 31.5 11.0 20.0 27.5 0.8
1.0 26.5 14.0 23.5 22.5 0.8
1.0 30.0 11.5 21.0 27.5 0.8
1.2 31.5 14.0 25.0 27.5 0.8
1.2 37.0 13.5 24.0 32.5 0.8
1.5 31.5 14.0 25.0 27.5 0.8
1.5 37.0 13.5 24.0 32.5 0.8
2.2 32.0 18.0 26.0 27.5 0.8
2.2 37.0 16.0 26.5 32.5 0.8
2.7 37.0 18.0 28.5 32.5 0.8
3.3 37.0 22.0 34.0 32.5 0.8
3.9 51.0 17.5 27.5 47.5 0.8
4.7 51.0 20.0 30.5 47.5 0.8
5.6 51.0 22.5 34.0 47.5 0.8
6.8 51.0 22.5 34.0 47.5 0.8
7.5 51.0 24.0 37.0 47.5 0.8
8.2 51.0 24.0 37.0 47.5 0.8

275VAC Polypropylene 100nF Film Capacitor X2 For Power Supply EMI Suppression

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details, Kindly contact us freely!
