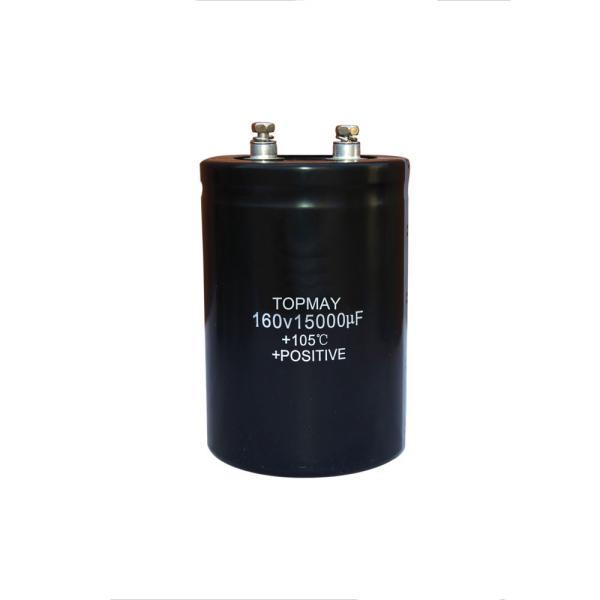

85℃ 2000H Screw Terminal Capacitor Aluminum Electrolytic 15000uF 160V
85℃ 2000H Screw Terminal Capacitor Aluminum Electrolytic 15000uF 160V
85℃ 2000H Screw Terminal Capacitor Aluminum Electrolytic 15000uF 160V
85℃ 2000H Screw Terminal Capacitor Aluminum Electrolytic 15000uF 160V
85℃ 2000H Screw Terminal Capacitor Aluminum Electrolytic 15000uF 160V
85℃ 2000H Screw Terminal Capacitor Aluminum Electrolytic 15000uF 160V
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCE21
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000pcs per months
Delivery Time :
15~20 working days
Packaging Details :
Bulk
Capacitance :
15000uF
Rated Voltage :
160V
Diameter :
64mm
Height :
130mm
Load Life :
2000hrs
Operating Temperature :
-40~+85℃
ESR(20℃, 100Hz) :
11mΩ
Ripple Current(40℃, 100Hz) :
38.6Arms
Description

85℃ 2000H Screw Terminal Aluminum Electrolytic Capacitor 15000uF 160V

Features:

  • Compliant to the Rohs directive.
  • 160WV~600WV extra-high voltage.
  • 85℃ 2000H for inverters

Applications:

UPS, Industrial power supply

Frequency converters, wind power converters

Switch-mode power supplies

Solar inverters

Professional power supplies

Specifications:

Items Specifications
Temperature range -25℃～+85℃
Rated voltage 160～600V.DC
Capacitance tolerance ±20% (20℃, 120Hz)
Leakage current 0.01CV (μA)or 5mA,whichever is smaller
[C=nominal capacitance (μF),V= rated voltage (V)]
Dissipation factor Less than the value specified in the standard products table.
Permissible ripple current As specified in the standard products table. (40℃, 120Hz)
High-temperature load

After the rated voltage with specified ripple current is applied at 85℃ for 2,000 hours :

Capacitance tolerance : ±20% or less of the initial value　

Dissipation factor : 200% or less of the specified initial value

Leakage current : Specified initial value or less
Standard JIS C 5101-4

Dimensions

85℃ 2000H Screw Terminal Capacitor Aluminum Electrolytic 15000uF 160V

unit mm

ΦD P S T Cap material
36 12.7 M5×10 6.0 Phenol
51 22.0 M5×10 5.5 Phenol
64 28.6 M5×10 5.5 Phenol
77 32.0 M5×10 4.5 Phenol
90 32.0 M5×10 4.0 Phenol
101 41.5 M8×17 10.0 Phenol

Ripple current correction coefficient
Temperature (℃) 40 60 70 85
Coefficient 1.0 0.75 0.62 0.37
Frequency (Hz) 50/60 120 300 1K ≥10K
Coefficient 0.7 1.0 1.1 1.3 1.4

Marking

Name of Brand : TOPMAY

Color of sleeve: Black

Color of marking: White

Rated Voltage:63VDC

Rated Capacitance:10000UF

Polarity 85℃ 2000H Screw Terminal Capacitor Aluminum Electrolytic 15000uF 160V

85℃ 2000H Screw Terminal Capacitor Aluminum Electrolytic 15000uF 160V

85℃ 2000H Screw Terminal Capacitor Aluminum Electrolytic 15000uF 160V

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

85℃ 2000H Screw Terminal Capacitor Aluminum Electrolytic 15000uF 160V

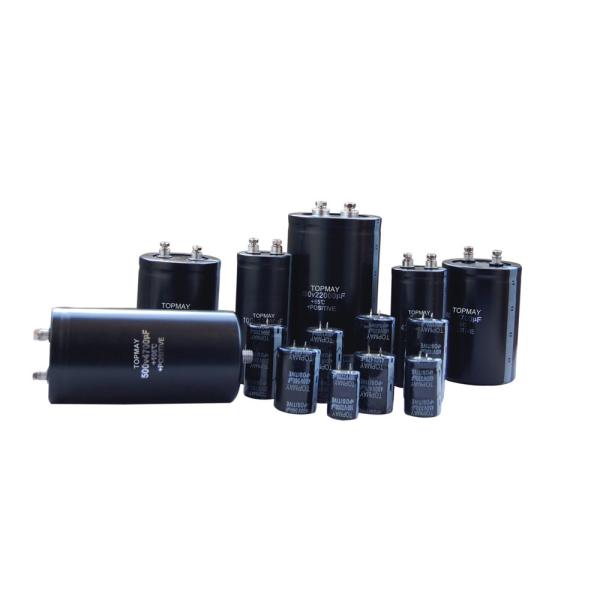

Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor

More details, kindly contact us freely!
