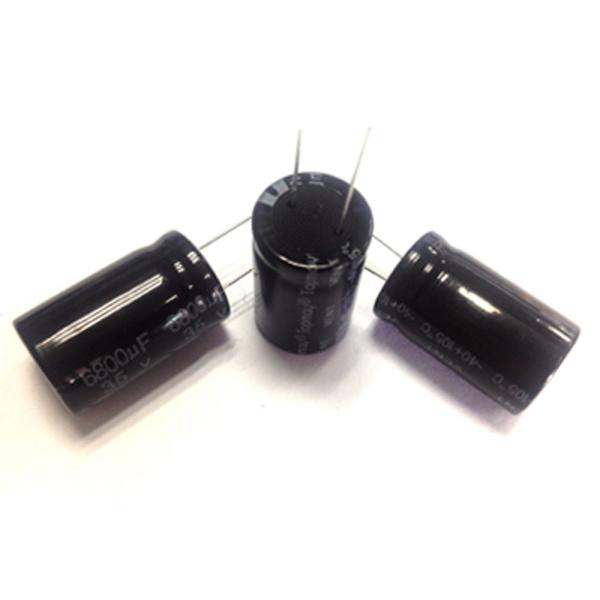

Radial Lead Type Aluminum Electrolytic Capacitor 6800uF 35V 18*36mm 2000 Hour
Radial Lead Type Aluminum Electrolytic Capacitor 6800uF 35V 18*36mm 2000 Hour
Radial Lead Type Aluminum Electrolytic Capacitor 6800uF 35V 18*36mm 2000 Hour
Radial Lead Type Aluminum Electrolytic Capacitor 6800uF 35V 18*36mm 2000 Hour
Radial Lead Type Aluminum Electrolytic Capacitor 6800uF 35V 18*36mm 2000 Hour
Radial Lead Type Aluminum Electrolytic Capacitor 6800uF 35V 18*36mm 2000 Hour
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCE02
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
10000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk, Tape
Terminal Type :
Radial
Capacitance :
6800uF
Rated Voltage :
35V
Diamter :
18mm
Length :
36mm
Lead Space :
7.5mm
Load Life :
2000hrs
Tolerance :
20%
Description

Radial Lead Type Aluminum Electrolytic Capacitor 6800uF 35V 18*36mm 2000 Hour

Features

  • Endurance 1000h~2000h at 105℃
  • Miniature size, High capacitance
  • Suitable for using for industrial equipment
  • RoHs compliant

Specifications

Category Temp. Range-55 ºC+105 ºC
Rated Voltage Range10V to 50V
Capacitance Range2.2uF to 22000uF
Capacitance tolerance±20%(M) (+20℃/ 120Hz)
Leakage CurrentI≤0.01CV(μ A) or 3(uA) After 2 minutes ( Whichever is greater)
Dissipation factor (tanδ)

(25℃,100 or 120Hz)
tanδ(Max.) ≤ 12 %

EnduranceAfter following life test with DC voltage and +105 ℃+2 ℃ripple current value applied (The sum of DC and ripple peak voltage shall not exceed the rated working voltage)when the capacitors are restored to 20 ℃, the capacitors shall meet the limits specified bellow. Duration Diameter 5mm to Diameter 8mm : 1000 h, Diameter 10mm to Diameter 18mm : 2000 h
Capacitance ChangeWithin ±20% of the initial value
Dissipation factor((tanδ)≤200% of the initial value
DC leakage currentWithin the initial limit
Shelf LifeAfter storage for 1000h at +105℃±2℃ with no voltage applied and then being stabilized at ±20℃, capacitors shall meet the limits specified in endurance.( with voltage treatment)



Dimension

Radial Lead Type Aluminum Electrolytic Capacitor 6800uF 35V 18*36mm 2000 Hour
Unit mm

D10131618
d0.60.60.8
F5.07.5
α0.5
β2.0








Size and Max. Ripple Current

Voltage

(V)

Cap.

(uF)

Size

ΦD×L(mm)

Tanδ max

Ripple Current

(mArms 120Hz)

35680018×360. 22050




TOPMAY PART NO. SYSTEM

TMCE02_688M35VP5B
Product CategorySub-Series　

Capacitance

688=6800uF

Tolerance-+/-20%VoltagePitchPacking-bulk


Radial Lead Type Aluminum Electrolytic Capacitor 6800uF 35V 18*36mm 2000 Hour

Radial Lead Type Aluminum Electrolytic Capacitor 6800uF 35V 18*36mm 2000 Hour
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor

More details, kindly contact us freely!
