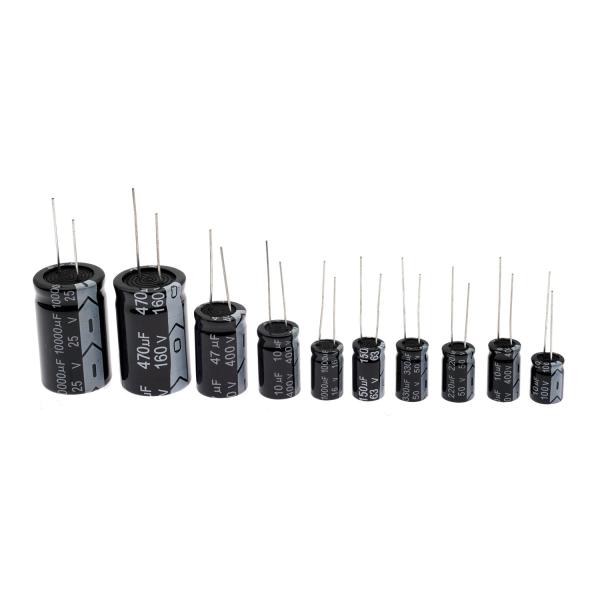

Radial Aluminum Electrolytic Capacitor 100uF 25V 2000hrs 5x11 LS 2mm
Radial Aluminum Electrolytic Capacitor 100uF 25V 2000hrs 5x11 LS 2mm
Radial Aluminum Electrolytic Capacitor 100uF 25V 2000hrs 5x11 LS 2mm
Radial Aluminum Electrolytic Capacitor 100uF 25V 2000hrs 5x11 LS 2mm
Radial Aluminum Electrolytic Capacitor 100uF 25V 2000hrs 5x11 LS 2mm
Radial Aluminum Electrolytic Capacitor 100uF 25V 2000hrs 5x11 LS 2mm
Radial Aluminum Electrolytic Capacitor 100uF 25V 2000hrs 5x11 LS 2mm
Radial Aluminum Electrolytic Capacitor 100uF 25V 2000hrs 5x11 LS 2mm
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCE02
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
10000
Price :
0.005~0.008USD/pcs
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk, Tape
Load Life :
2000hrs
Size :
5*11
Capacitance :
100uF
Voltage :
25V
Pitch :
2mm/ 2.5mm
Description

TMCE02 Aluminum Electrolytic Capacitors 105C

Features

Load life of 1,000 hours(for capacitors of case dia. 8mm or less) or 2,000 hours(for case dia. 10mm or more)at 105 .

Wide operating temperature range. Suitable to use for industrial equipment.

Case Size larger than 5mm diamter has safety vents.

Specifications

ItemCharacteristics
Operating temperature range-40 +105 (for 6.3V to 250V) -25 +105 (for 350V to 450V)
Rated voltage range6.3 450V
Capacitance range0.1-15,000 F
Capacitance tolerance (at20 ,120Hz)

20%(M)

Leakage current(I) (at20 )After 2 minute application of rated voltage. I 0.01CV or 3 A,whichever is greater (for 6.3v to 100v).After 2 minute application of rated voltage. I 0.02CV 20 A(for 160v to 450v).


Dissipation factor(Tan ) (at 20 ,120Hz)

Where C: Nominal capacitance in F,V:Rated voltage in V.
W.V.(V)6.3101625355063100160-250350-450
Tan (max.)0.240.200.160.140.120.100.090.080.150.20
For capcitance of more than 1,000 F,add 0.02 for every increase of 1,000 F.

Low temperature characteristics (at 120Hz)

W.V.(v) 6.31016 100160 250350 450
impedance ratio ZT/Z+20 (max)Z-25 /Z+2043246
Z-40 /Z+208648-



Load life

The following specifications shall be satisfied when the capacitors are restored to 20 after the rated voltage has been applied for 2,000 hours (1,000 hours for case dia, 8 mmor less)at 105
Capacitance change20% of the initial value
tan200% of the initial specified value
IThe initial specified value



Shelf life

The following specifications shall be satisfied when the capacitors are restored to 20 after exposing them at 105 for 500 hours without voltage applied
Capacitance change20% of the initial value
tan150% of the initial specified value
I200% of the initial specified value
OthersSatisfies characteristic W of JIS C5141

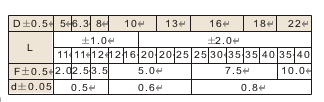

Dimension

Radial Aluminum Electrolytic Capacitor 100uF 25V 2000hrs 5x11 LS 2mm
Radial Aluminum Electrolytic Capacitor 100uF 25V 2000hrs 5x11 LS 2mm


TOPMAY PART NO. SYSTEM

TMCE02_338M10VP5B
Product CategorySub-Series　

Capacitance

338=3300uF

Tolerance-+/-20%VoltagePitchPacking-bulk



Radial Aluminum Electrolytic Capacitor 100uF 25V 2000hrs 5x11 LS 2mm
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor

More details, kindly contact us freely!
