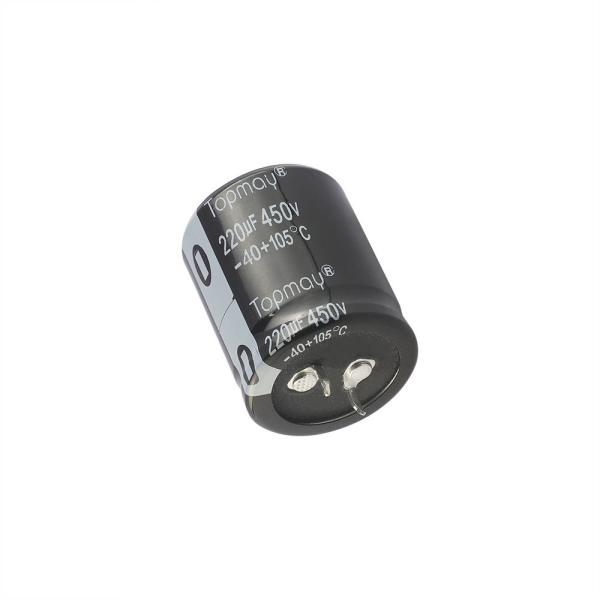

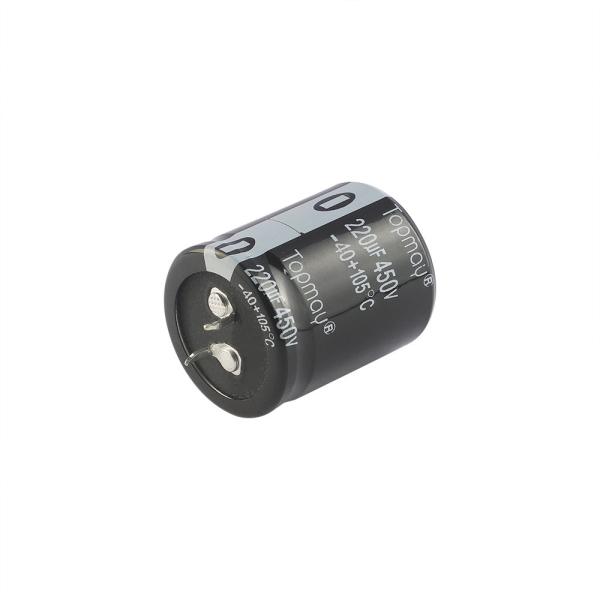

220uF Snap In Capacitor Electrolytic 450V 25*35 Aluminum 105C
220uF Snap In Capacitor Electrolytic 450V 25*35 Aluminum 105C
220uF Snap In Capacitor Electrolytic 450V 25*35 Aluminum 105C
220uF Snap In Capacitor Electrolytic 450V 25*35 Aluminum 105C
220uF Snap In Capacitor Electrolytic 450V 25*35 Aluminum 105C
220uF Snap In Capacitor Electrolytic 450V 25*35 Aluminum 105C
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCE18
Certification :
SGS( RHOS)
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000pcs per month
Delivery Time :
15~20 working days
Packaging Details :
Bulk
Capacitance :
220uF
Voltage :
450VDC
Terminal :
Snap-in
Diameter :
25mm
Height :
35mm
Operating temperature :
-40~+105C
Load Life :
2000hrs
Description

220uF 450V 25*35 Snap-in Aluminum Electrolytic Capacitor 105C

Features:

105℃,snap-in terminal

Load life of 2000hrs, high ripple current , PCB mounting.

Specifications:

Item Characteristics
Capacitance 560uF
Rated Voltage Range 450V.DC

Operating Temperature

Range

 －40℃～+105℃
Capacitance Tolerance ±20%(M) (25℃,100 or 120Hz)
Leakage Current

I≤ 0.01cv or 1.5mA. which is smaller After 5 minutes application of rated voltage.

Where, I: Max. leakage current (uA), C: Norminal capacitance(uF), V: Rated Voltage(V)
Dissipation Factor
UR(V) 16 25 35 50 63~100 160~400 450~500
Tgδ( Max.) 0.5 0.4 0.35 0.3 0.2 0.15 0.2

(25℃,100 or 120Hz)
Shelf Life(+ 105℃) After storage for 1000 hours at +105℃ with no voltage applied , the capacitor shall meet the specified limits for "Load Life"
Load Life(+ 105℃)

After 3000 hours application of rated voltage at 105℃
Capacitance Change Within ±20% of the initial specified value
D. F ( Tan δ)

≤ 200% of the

nitial specified value
Leakage Current Not more than the specified value

Temperature Stability(120Hz)
Rated Voltage 10~100 160~200 250~500
Impedance Ratio Z-25℃/Z+20℃ 4 4 4
Z-40℃/Z+20℃ 15 --- ----

220uF Snap In Capacitor Electrolytic 450V 25*35 Aluminum 105C

Dimensions

220uF Snap In Capacitor Electrolytic 450V 25*35 Aluminum 105C

D 22 25 30 35
F 10
G 6.0
α 1.0
β 2.0

Multiplier for Ripple Current

Frequency Coefficient

Frequency (Hz) 50 120 1K 10K 20K 100K
Coefficient ≤100 0.96 1.00 1.10 1.15 1.20 1.25
63~100V 0.85 1.00 1.07 1.13 1.19 1.40
160~450V 0.80 1.00 1.15 1.20 1.35 1.60

Size and Max Ripple Current

Working Voltage

(V.DC)

Capacitance

(mF)

Size

ΦD×L(mm)

 Tgδ @20℃, 120Hz

IR

(Arms,105℃,120Hz)

Leakage Current( uA, 5 minutes
450 220 25*35 0.15 2.7 924

TOPMAY Part No. System

TMCE 18 _ 227 M 450V B
Product Category Sub-Series 　

Capacitance

687=680uF

 Tolerance-+/-20% Voltage Packing-bulk

220uF Snap In Capacitor Electrolytic 450V 25*35 Aluminum 105C
