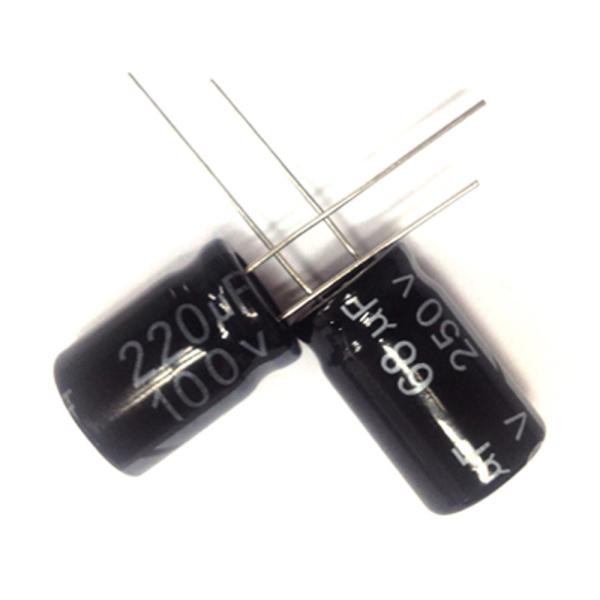

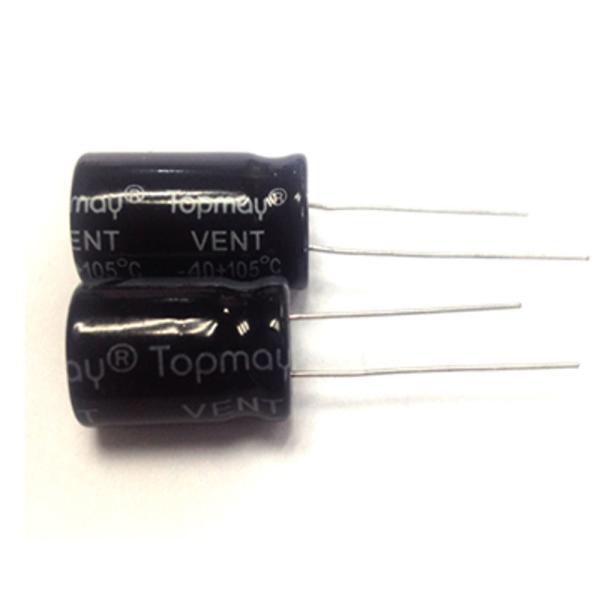

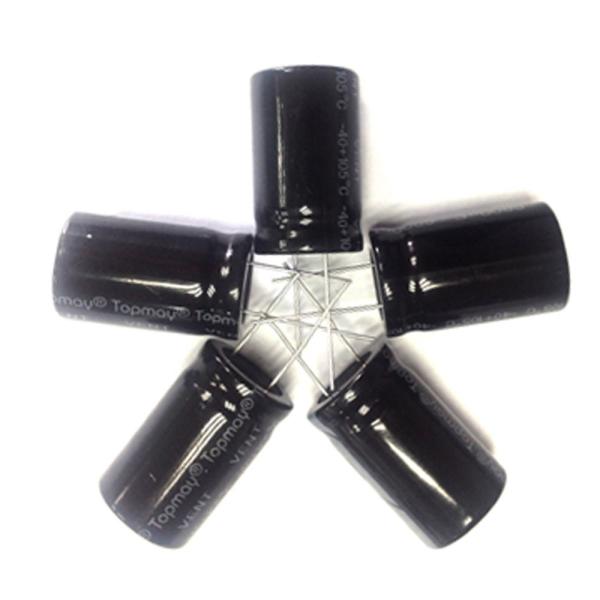

2000hrs Radial Aluminum Electrolytic Capacitor 68uF 250V 13*22 105℃
2000hrs Radial Aluminum Electrolytic Capacitor 68uF 250V 13*22 105℃
2000hrs Radial Aluminum Electrolytic Capacitor 68uF 250V 13*22 105℃
2000hrs Radial Aluminum Electrolytic Capacitor 68uF 250V 13*22 105℃
2000hrs Radial Aluminum Electrolytic Capacitor 68uF 250V 13*22 105℃
2000hrs Radial Aluminum Electrolytic Capacitor 68uF 250V 13*22 105℃
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCE02
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
10000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk, Tape
Capacitance :
68uF
Rated Voltage :
250VDC
Diameter :
13mm
Height :
22mm
Load Life :
2000hrs
Tolerance :
20%
Working temperature :
－40℃～＋105℃
DF :
0.15
Description

2000hrs Radial Aluminum Electrolytic Capacitor 65uF 250V 13*22 105℃

Features

  • Load life of 1000hrs ( for capacitor case dia.8mm or less) or 2000hrs ( for case diameter 10mm or more at 105℃
  • Wide operating temperature range.
  • Suitable for using for industrial equipment
  • Case size larger than 5mm diameter has safety vents.

Specifications

Items Characteristics
Rated Voltage Range 250V.DC
Capacitance 68uF
Operating Temperature Range －40℃～＋105℃
Capacitance Tolerance ±20%(M) (25℃,100 or 120Hz)
Leakage Current

I≤0.01CV(μ A)
Where,I:Max.leakage current(µA),C:Nominal capacitance(µF),V:Rated voltage(V) After 1 minutes at 25℃.

Dissipation Factor

(tanδ)

(25℃,100 or 120Hz)
tanδ(Max.) ≤ 12 %

Low Temperature

Characteristics

(Max.Impedance Ratio)

Capacitor put in temperature of -25ºC±3ºC( without adding voltage) for 96±4hours and released in normal environment for 6 hours to make the testing, it shall not exceed the values given in the below table.

Capacitance Change ≤+20％, -10% of the initial value
D.F. (tanδ) ≤25% of the initial specified value
Leakage Current Less than the initial specified value

Shelf Life

After storage at 105℃ for 500 hours, the capacitors shall meet the following requirements.

Capacitance Change ≤+20％,-10% of the initial value
D.F. (tanδ) ≤150% of the initial specified value

Leakage Cur
ent

 ≤200% of the initial specified value




Load Life

After application of rated voltage with rated ripple current for the specified period of time 1000Hours at +105℃,the following specification shall be satisfied.

Capacitance Change ≤+20％,-10%％ of the initial value
D.F. (tanδ) ≤150% of the initial specified value
Leakage Current ≤the initial specified value

Others Meet standard GB9608-88


















































Dimension

2000hrs Radial Aluminum Electrolytic Capacitor 68uF 250V 13*22 105℃
Unit mm

D 10 13 16 18
d 0.6 0.6 0.8
F 5.0 7.5
α 0.5
β 2.0








Size and Max. Ripple Current

Voltage

(V)

Cap.

(mF)

Size

ΦD×L(mm)

 Tanδ max

Ripple Current

(mArms,20℃,100KHz))
250 68 13×22 0. 2 270




TOPMAY PART NO. SYSTEM

TMCE 02 _ 686 M 250V P5 B
Product Category Sub-Series 　

Capacitance

686=68uF

 Tolerance-+/-20% Voltage Pitch Packing-bulk


2000hrs Radial Aluminum Electrolytic Capacitor 68uF 250V 13*22 105℃

2000hrs Radial Aluminum Electrolytic Capacitor 68uF 250V 13*22 105℃
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor

More details, kindly contact us freely!
