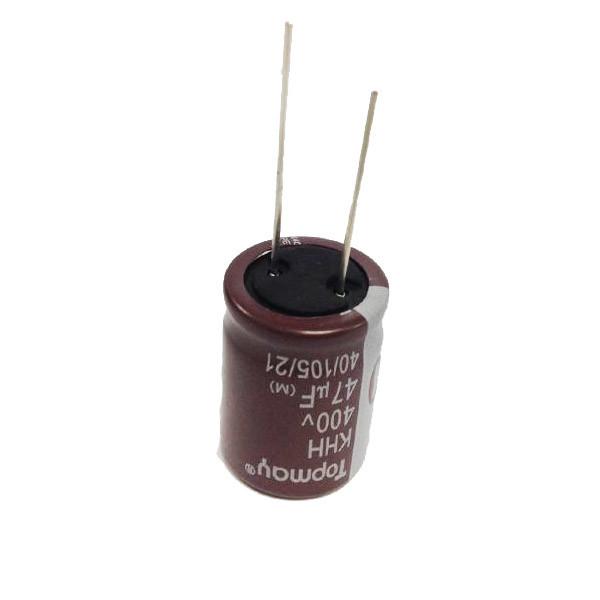

12000 Hours Aluminum Electrolytic Capacitor 47uF 400V Low ESR Capacitor
12000 Hours Aluminum Electrolytic Capacitor 47uF 400V Low ESR Capacitor
12000 Hours Aluminum Electrolytic Capacitor 47uF 400V Low ESR Capacitor
12000 Hours Aluminum Electrolytic Capacitor 47uF 400V Low ESR Capacitor
12000 Hours Aluminum Electrolytic Capacitor 47uF 400V Low ESR Capacitor
12000 Hours Aluminum Electrolytic Capacitor 47uF 400V Low ESR Capacitor
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCE3002
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
5000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk, Tape
Capacitance :
47uF
Rated Voltage :
400VDC
Diameter :
16mm
Height :
25mm
Load Life :
12000hrs
Tolerance :
20%
Working temperature :
－40℃～＋105℃
DF :
0.2
Description

12000 Hours 47uF 400V Low ESR Radial Aluminum Electrolytic Capacitor For LED LCD

Features

  • 105℃,12000 hours, high Ripple, Low impedance,

  • Long life.

  • Suitable for using in switching power,LCD TV,

  • LED,special Control power supply and smart meter.

Specifications

Items Characteristics
Rated Voltage Range 250～450V.DC
Operating Temperature Range －40℃～＋105℃
Capacitance Tolerance ±20%(M) (25℃,100 or 120Hz)
Leakage Current

I≤0.02CV+10(μ A)

Where,I:Max.leakage current(µA),C:Nominal capacitance(µF),V:Rated voltage(V) After 2 minutes at 25℃.

Dissipation Factor

(tanδ)
Rated voltage(Vdc) 250 350 400 450
tanδ(Max.) 0.20 0.20 0.20 0.22

(25℃,100 or 120Hz)

Low Temperature

Characteristics

(Max.Impedance Ratio)

Impedance ratio at 100Hz or 120Hz shall not exceed the values given in the below table.

Rated voltage(Vdc) 250～450
Z-40℃/Z+20℃ 7

Shelf Life

After storage at 105℃ for 1000 hours, the capacitors shall meet the following requirements.

Capacitance Change ≤±20％ of the initial value
D.F. (tanδ) ≤200% of the initial specified value
Leakage Current ≤200% of the initial specified value

Load Life

After application of rated voltage with rated ripple current for the specified period of time at +105℃,the following specification shall be satisfied.

Dia.(mm) Life Time
10 8000 hours
13 10000 hours
Over 16 12000 hours
Capacitance Change ≤±20％ of the initial value
D.F. (tanδ) ≤200% of the initial specified value
Leakage Current ≤the initial specified value

Others Meet Q/RME 46—2008, GB/T 5993-2003










































Dimension

12000 Hours Aluminum Electrolytic Capacitor 47uF 400V Low ESR Capacitor
Unit mm

D 10 13 16 18
d 0.6 0.6 0.8
F 5.0 7.5
α 0.5
β 2.0








Size and Max. Ripple Current

Voltage

(V)

Cap.

(mF)

Size

ΦD×L(mm)

 Tanδ max

Ripple Current

(mArms,20℃,100KHz))
400 47 16×25 0. 2 470




TOPMAY PART NO. SYSTEM

TMCE 3002 _ 476 M 400V P7.5 B
Product Category Sub-Series 　

Capacitance

686=68uF

 Tolerance-+/-20% Voltage Pitch Packing-bulk


12000 Hours Aluminum Electrolytic Capacitor 47uF 400V Low ESR Capacitor

12000 Hours Aluminum Electrolytic Capacitor 47uF 400V Low ESR Capacitor
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor

More details, kindly contact us freely!
