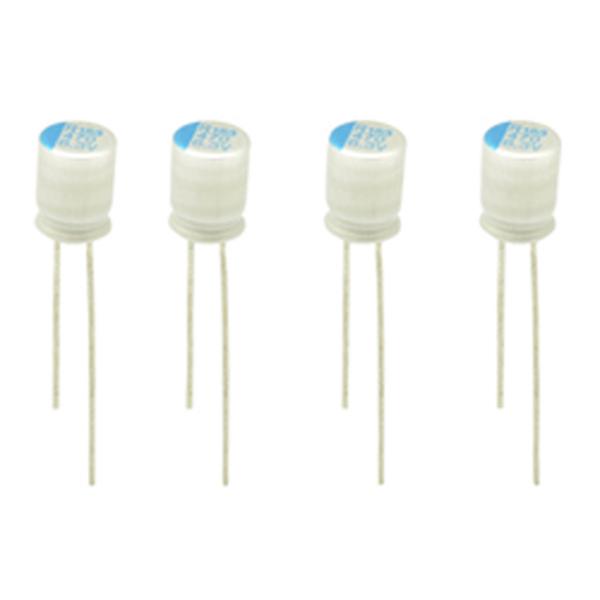

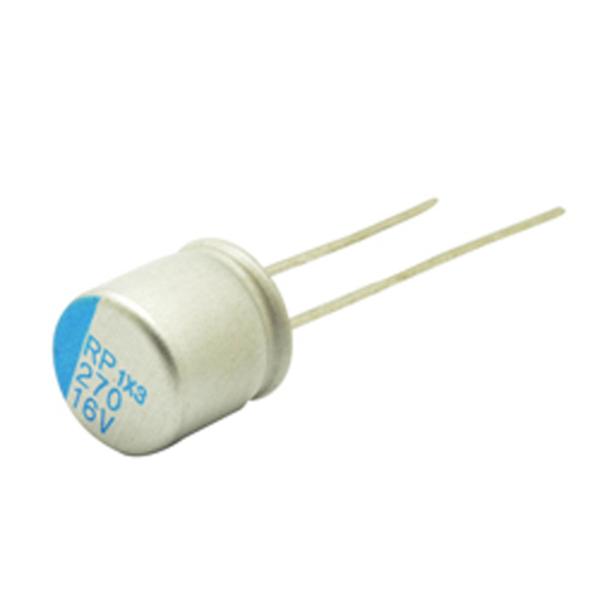

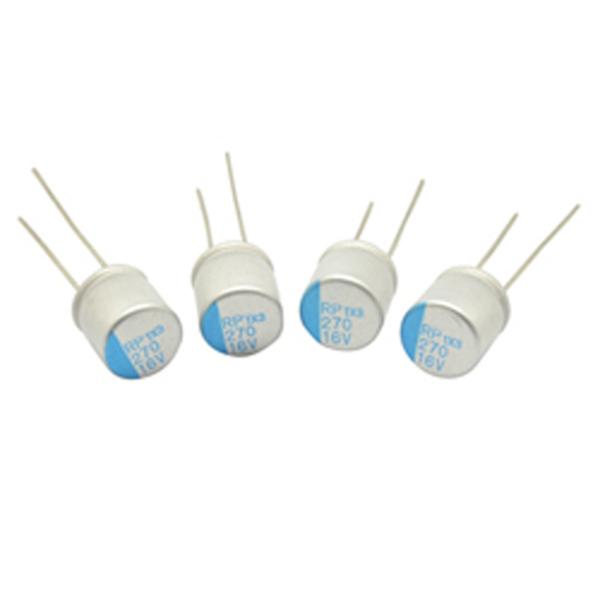

Solid Polymer Aluminum Electrolytic Capacitor 470uF 16V 10*12 2000hours

1. Scope

1. 1 SCOPE

This specification contains descriptions of the quality of aluminum electrolytic capacitors.

1. 2 APPLICABLE SPECIFICATION

This specification is made based on the Japanese Industrial Standard JISC-5141 Characteristics and JIS C-5102.

1. 3 OPERATING TEMPERATURE RANGE

Operating temperature range is the range of ambient temperature at which the capacitor can be operated continuously at rated voltage.

2. MARKING

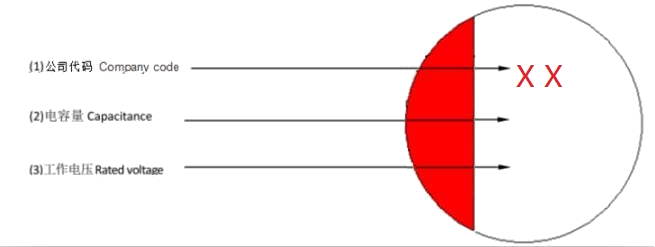

2. 1 The following items shall be marked indelibly on the surface of capacitor:

3. MAIN SPECIFICATIONS

4. PRODUCT STRUCTURE ( mm )

4. 1SHAPE AND DIMENSIONS

5. DIMENSIONS AND RIPPLE CURRENT

6. STORAGE METHODS

Storage life:1year,Unless otherwise specified, the standard range of atmospheric conditions for making measurements and tests are as follows.

Ambient temperature: 5 to 35℃ Relative humidity: 45 to 85% Air pressure: 86kpa to 106kpa.

If there may be doubt on the results, measurements shall be made within the following limits.

Ambient temperature: 20±2℃ Relative humidity: 60 to 70% Air pressure: 86kpa to 106kpa.

7. OTHERS

7. 1 Important information on the application of aluminium electrolytic capacitors

(1).When reverse voltage is applied on DC electrolytic capacitor, the capacitor will become short-circuited please use non-polarized capacitors in the circuit or the capacitor will be damage due to abnormal current flows through the capacitors since the circuit where the positive voltage may be applied to the cathode terminal.

(2).When capacitor is used at higher voltage than the rated voltage, leakage current increases, characteristics drastically deteriorate and damage in a short period may occur as a result. Please take extra caution that the peak voltage should not exceed the rated voltage.

(3). Charge and discharge application.

When aluminum electrolytic capacitors for general purpose are employed in rapid charge and discharge application, its life may be shorted by capacitance decreasing, heat rising, etc.

(4). Store the capacitor.

I creased leakage current is common in aluminum capacitors which have been stored for long period of time. The Higher the storage temperature, the higher the leakage current increase, therefore please take precautions concerning the storage location. The leakage current decreases gradually as voltage is applied to the capacitor. In cases where increased leakage current causes problems in the circuit, apply voltage (aging) before using.

(5). Ripple current applied to capacitor should not exceed the rated value.

Excessive heat will reduce capacitance and result in shortened life of capacitor if ripple currents exceeding the specified
