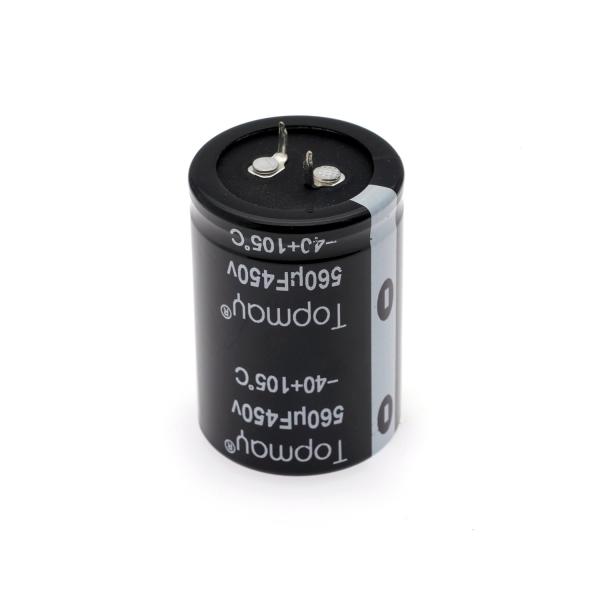

Aluminum Electrolytic Snap In Capacitor 560uF 450V For UPS Power Supply
Aluminum Electrolytic Snap In Capacitor 560uF 450V For UPS Power Supply
Aluminum Electrolytic Snap In Capacitor 560uF 450V For UPS Power Supply
Aluminum Electrolytic Snap In Capacitor 560uF 450V For UPS Power Supply
Aluminum Electrolytic Snap In Capacitor 560uF 450V For UPS Power Supply
Aluminum Electrolytic Snap In Capacitor 560uF 450V For UPS Power Supply
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCE18
Certification :
SGS( RHOS)
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000pcs per month
Delivery Time :
15~20 working days
Packaging Details :
Bulk
Capacitance :
560uF
Voltage :
450VDC
Terminal :
Snap-in
Size :
35(D)*50(H)mm
Load Life :
3000hrs
Operating temperature :
-40~+105C
Description

Snap-in Terminal Aluminum Electrolytic Capacitor 560uF 450V for UPS Power Supply

Features:

105℃,snap-in terminal

Load life of 2000hrs, high ripple current , PCB mounting.

Specifications:

Item Characteristics
Capacitance 560uF
Rated Voltage Range 450V.DC

Operating Temperature

Range

 －40℃～+105℃
Capacitance Tolerance ±20%(M) (25℃,100 or 120Hz)
Leakage Current

I≤ 0.01cv or 1.5mA. which is smaller After 5 minutes application of rated voltage.

Where, I: Max. leakage current (uA), C: Norminal capacitance(uF), V: Rated Voltage(V)
Dissipation Factor
UR(V) 16 25 35 50 63~100 160~400 450~500
Tgδ( Max.) 0.5 0.4 0.35 0.3 0.2 0.15 0.2

(25℃,100 or 120Hz)
Shelf Life(+ 105℃) After storage for 1000 hours at +105℃ with no voltage applied , the capacitor shall meet the specified limits for "Load Life"
Load Life(+ 105℃)

After 3000 hours application of rated voltage at 105℃
Capacitance Change Within ±20% of the initial specified value
D. F ( Tan δ)

≤ 200% of the

nitial specified value
Leakage Current Not more than the specified value

Temperature Stability(120Hz)
Rated Voltage 10~100 160~200 250~500
Impedance Ratio Z-25℃/Z+20℃ 4 4 4
Z-40℃/Z+20℃ 15 --- ----

Dimensions

Aluminum Electrolytic Snap In Capacitor 560uF 450V For UPS Power Supply

D 22 25 30 35
F 10
G 6.0
α 1.0
β 2.0

Multiplier for Ripple Current

Frequency Coefficient

Frequency (Hz) 50 120 1K 10K 20K 100K
Coefficient ≤100 0.96 1.00 1.10 1.15 1.20 1.25
63~100V 0.85 1.00 1.07 1.13 1.19 1.40
160~450V 0.80 1.00 1.15 1.20 1.35 1.60

Size and Max Ripple Current

Working Voltage

(V.DC)

Capacitance

(mF)

Size

ΦD×L(mm)

 Tgδ @20℃, 120Hz

IR

(Arms,105℃,120Hz)

ESR(mΩ, 20℃,120Hz)
450 560 35*50 0.15 2.7 293

TOPMAY Part No. System

TMCE 18 _ 567 M 450V B
Product Category Sub-Series 　

Capacitance

687=680uF

 Tolerance-+/-20% Voltage Packing-bulk

Aluminum Electrolytic Snap In Capacitor 560uF 450V For UPS Power SupplyAluminum Electrolytic Snap In Capacitor 560uF 450V For UPS Power Supply
