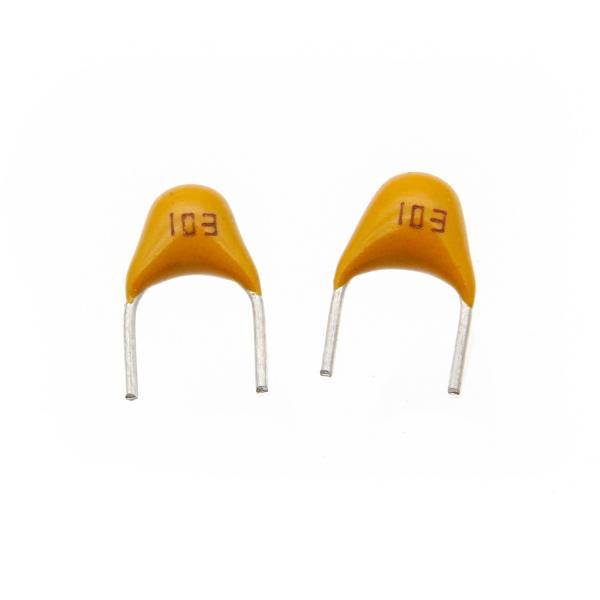

Radial Multilayer Ceramic Capacitor 10nF 50V 0603 X7R P5.08mm
Radial Multilayer Ceramic Capacitor 10nF 50V 0603 X7R P5.08mm
Radial Multilayer Ceramic Capacitor 10nF 50V 0603 X7R P5.08mm
Radial Multilayer Ceramic Capacitor 10nF 50V 0603 X7R P5.08mm
Radial Multilayer Ceramic Capacitor 10nF 50V 0603 X7R P5.08mm
Radial Multilayer Ceramic Capacitor 10nF 50V 0603 X7R P5.08mm
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCC03
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
10000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
10~12working days after payment
Packaging Details :
Bulk, Tape
Capacitance :
10nF
Rated Voltage :
50V
Tolerance :
+/-10%
Material :
X7R
Package Type :
Through the Hole
Temp. Range :
-55℃~+125℃
Description

Radial Multilayer Ceramic Capacitor 10nF 50V 0603 X7R P5.08mm

Feature

  • Miniature size, wide capacitance, tape and reel packing available for auto-placement.
  • Coating with epoxy resin, creates the excellent humidity resistance and prevents body from damage during soldering and washing.
  • Industry standard size and various lead spacing available
T.C NPO/COG X7R Y5V Z5U
Dielectric type Stable class I Dielectric Stable class II Dielectric
Electrical properties

With negligible dependence of electrical properties on temperature voltage frequency and time

 With predictable change of properties with temperature voltage, frequency and time, this dielectric is ferroelectric and offers high capacitance ranges than class I With high twist dielectric constant and greater variation of properties with temperature and test conditions, very high capacitance per unit volume.
Application Use in Circuits requiring stable performance Use as blocking, by-passing discriminating element Suited for by-passing and coupling application such as store power and memory circuit.

General Specification

A

Product Type

 B

Nominal Body Size(Length ×Width±0.05)
TMCC03

Class 1 radial lead monolithic capacitors

 0805 2.0×1.25mm
C

Temperature Characteristic

 D

Nominal Capacitance C
X7R ±15% -55～+125℃ 103 10nF
E

Tolerance

 F

Rated Voltage
K ±10% 50V
G

Packaging Style

 H

Lead Space(Unit:mm)
Blank

Bulk 1000PCS/BAG

 F3 5.08mm
I

Wire material

Specifications

Wire diameter

Line conductivity

Tin plated copper clad steel wire

 Φ0.45~0.5mm 16.6% (±0.5)

Tin plated copper wire

Packing

Bulk or Tape

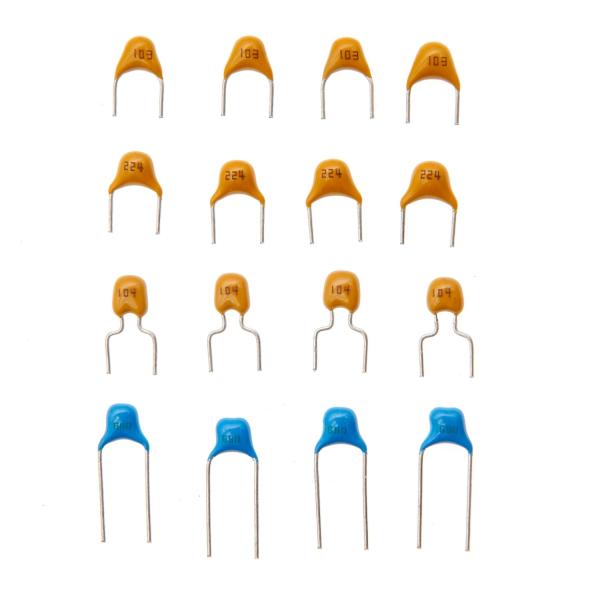

Radial Multilayer Ceramic Capacitor 10nF 50V 0603 X7R P5.08mm

Radial Multilayer Ceramic Capacitor 10nF 50V 0603 X7R P5.08mm

Applications

Multilayer ceramic capacitors are widely used in electronic precision instruments. Various small electronic devices are used for resonance, coupling, filtering, and bypassing.

Radial Multilayer Ceramic Capacitor 10nF 50V 0603 X7R P5.08mm

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details, kindly contact us freely!
