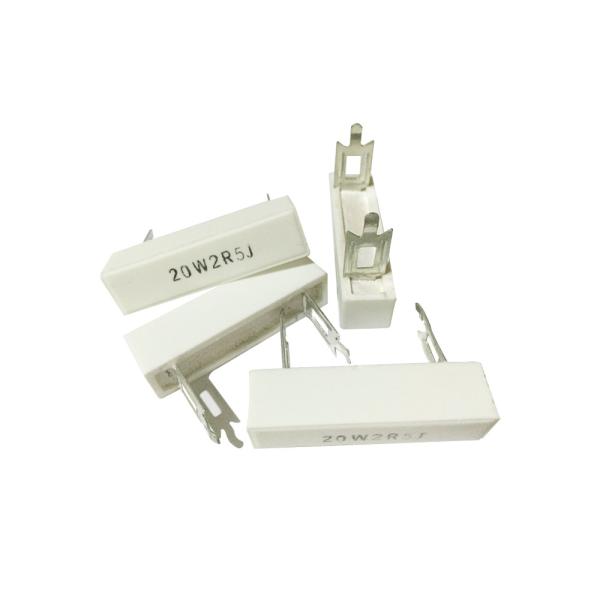

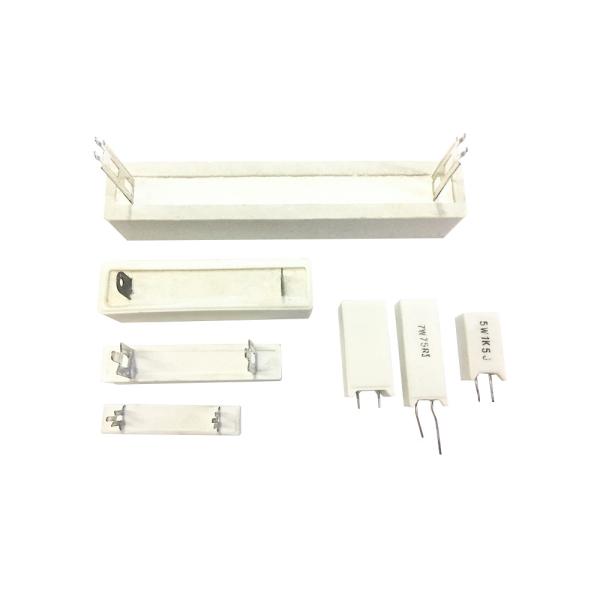

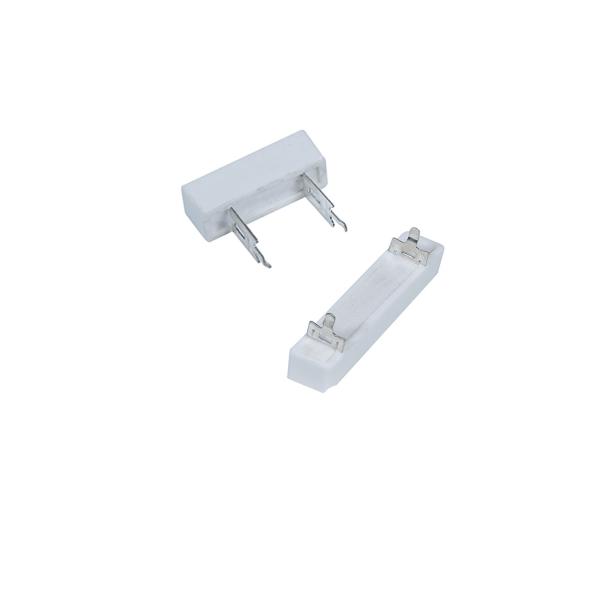

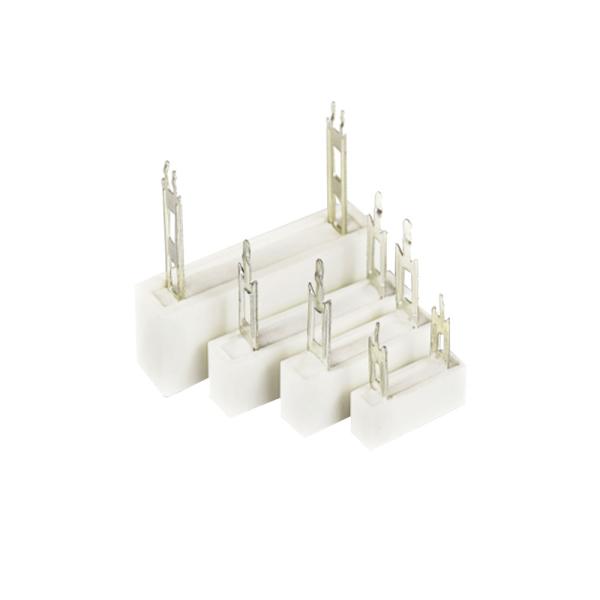

SQZ Vertical Ceramic Cement Resistor For Power Supply 10W 20W 30W 2R5 J 5%
SQZ Vertical Ceramic Cement Resistor For Power Supply 10W 20W 30W 2R5 J 5%
SQZ Vertical Ceramic Cement Resistor For Power Supply 10W 20W 30W 2R5 J 5%
SQZ Vertical Ceramic Cement Resistor For Power Supply 10W 20W 30W 2R5 J 5%
SQZ Vertical Ceramic Cement Resistor For Power Supply 10W 20W 30W 2R5 J 5%
SQZ Vertical Ceramic Cement Resistor For Power Supply 10W 20W 30W 2R5 J 5%
SQZ Vertical Ceramic Cement Resistor For Power Supply 10W 20W 30W 2R5 J 5%
SQZ Vertical Ceramic Cement Resistor For Power Supply 10W 20W 30W 2R5 J 5%
Specifications
Brand Name :
ETOPMAY
Model Number :
TMRSQ02
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
5000pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk
Resistance :
2.5Ω
Power :
10W 20W 30W
Tolerance :
5%
TYPE :
SQZ
Description

SQZ Vertical Cement Resistor For Power Supply 10W 20W 30W 2R5 J 5%

Feature:

High Load Stable high voltage performance Heat-sink performance, non-flame RoHS compliant, hlogen free, lead free

Application:

Entertainmentsystem, Power supply,Meter/Instruments system

Electrical Characteristics

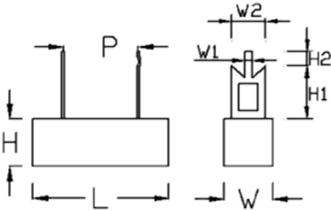

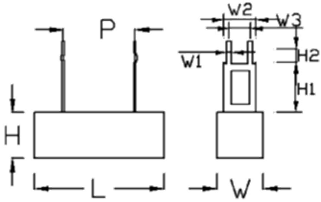

Z typeSQZ Vertical Ceramic Cement Resistor For Power Supply 10W 20W 30W 2R5 J 5%ZA type SQZ Vertical Ceramic Cement Resistor For Power Supply 10W 20W 30W 2R5 J 5%

Rated Power At 70℃ Max Working Voltage Max Overload voltage Insulation Voltage Resistance Range Operating Temperature H±1.5 W±1 H±1 P±3 H1±1 H2±0.5 W1±0.5 W2±0.5 W3±0.5
5W 350V 600V 1KV 0.1Ω~820KΩ -55℃~+275
℃		 28 10 9 15 4.5 1.5 1.5 7.0 5.0
7W 500V 700V 1KV 0.1Ω~820KΩ 36 10 9 20 4.5 1.5 1.5 7.0 5.0
10W 750V 850V 1KV 0.1Ω~820KΩ 48 10 9 30 4.5 1.5 1.5 7.0 5.0
15W 1KV 1KV 1KV 0.1Ω~820KΩ 48 12.5 12 30 4.5 3.0 3.0 10.0 8.0
20W 1KV 1KV 1.5KV 0.1Ω~820KΩ 63 15 13 42 4.5 3.0 3.0 10.0 8.0
25W 1KV 1KV 1.5KV 0.1Ω~820KΩ 63 15 13 42 4.5 3.0 3.0 10.0 8.0
50W 1KV 1KV 1.5KV 0.1Ω~820KΩ 88 19 19 72 4.5 3.0 3.0 10.0 8.0

Outdrawing and Constraction

SQZ Vertical Ceramic Cement Resistor For Power Supply 10W 20W 30W 2R5 J 5%

NO. Components
A Terminal
B Padding materials
C Ceramic shell
D Resistance wire or ceramic core
E Fiberglass or ceramic core or resistors film

How to order

TMRSQ02 - 1 2 3 4 5 6 7 8 9
↓ 　 ↓ ↓ ↓ ↓ ↓
　 　 　 　 　 　 　 　
Produce Code TMRSQ02: SQM Vertical Cenment Resistor Resistance Value Code: Three digits: The first two digits are significant figures and the third one denotes number of zeros. 394=390KΩ Tolerance J=±5% K=±10% Rated Power: Two digits or three digits: 01=1W,30=30W,50=50W 70=70W…. 100=100W 200=200W 250=250W ... Packaging T:tape&reel B:bulk Type: M,Z,ZA,H,HA,G
-

SQZ Vertical Ceramic Cement Resistor For Power Supply 10W 20W 30W 2R5 J 5%

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor
