8K2 1/8W 0805 1% SMD Chip Resistor Thick Film For Automatic SMT
8K2 1/8W 0805 1% SMD Chip Resistor Thick Film For Automatic SMT
8K2 1/8W 0805 1% SMD Chip Resistor Thick Film For Automatic SMT
8K2 1/8W 0805 1% SMD Chip Resistor Thick Film For Automatic SMT
8K2 1/8W 0805 1% SMD Chip Resistor Thick Film For Automatic SMT
8K2 1/8W 0805 1% SMD Chip Resistor Thick Film For Automatic SMT
Specifications
Brand Name :
ETOPMAY
Model Number :
TMRM
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
10000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk, Tape
Product Name :
Chip Resistor
Resitance Vlue :
8K2
Rated Power :
1/8W
Size :
0805
Tolerance :
+-1%
Package :
Surface Mount
Description

8K2 1/8W 0805 1% SMD Chip Resistor Thick Film Resistor For Automatic SMT


The dimension type for chip resistor including 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512, and the features are as below:

  • Miniature and light weight
  • Stable electrical capability and high reliability
  • Superior mechanical and frequency
  • Low assembly cost, suitable for automatic SMT
  • Suit for reflow and wave reflow soldering
  • Compliant with RoHS directive
  • Compliant with halogen free requirement

Application:
The applications for the chip resistor are widely used in computer, communication, industry automatization, aviation, military, digital TV, digital acoustics and consume electronics,etc.

Features:

Product Name SMD Chip Resistors
Size 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512
Certificates SGS
Series SMD
Characteristic Moisture-proof, good stability, a variety of B values to choose from
Material NTC Thermal Ceramic Body glass protective film silver electrode Tin coating
Application Communication equipment such as mobile phone, car phone, etc; Office equipment such as printer, fax machine, projector, desktop
computer, etc; Consumer electronic devices such as video recorders, laptops, intelligent wearable devices, etc; Others, such as
power supply, secondary battery and charger, LED lighting equipment, etc.
Features The surface of the porcelain body is encapsulated by glass, which has good moisture resistance, high reliability and stability;
Small size, no lead, excellent welding performance, suitable for high-density surface mount; Wide operating temperature range:
-40℃～+125℃; A variety of B values are available to suit a variety of applications.
Quality High Quality

Specification

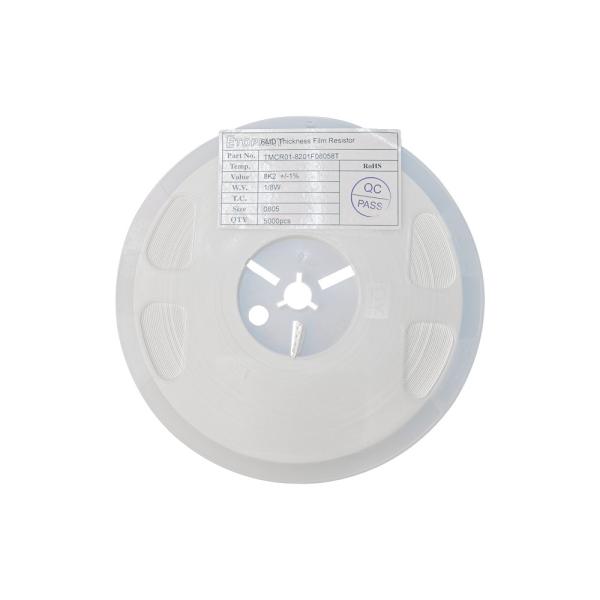

Product Name

SMD Thick Film Resistor

Part Number

TMCR01-8201F08058T

Resistance Value

8.2Kohm

Tolerance

+/-1%

Size code

 1/8W
Size/Dimension 2.00*1.25*0.55mm

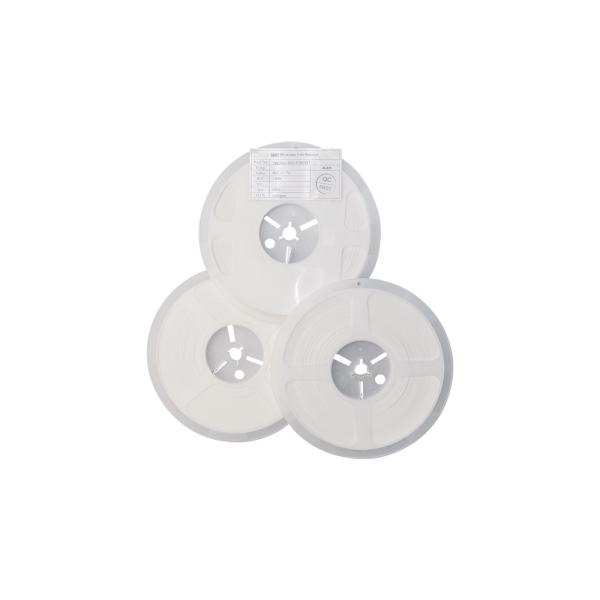

Package

Tape & Reel


Part Number:

TMCR01 - 1 2 3 4 5 6 7 8 9 10 11
↓ 　 ↓ ↓ ↓ ↓ ↓
Produce Code TMCR01: Thick Film Chip Capacitor Resistance Value Code Three digits:The first two digits are significant figures and the third one denotes number of zeros. 394=390K Ω Four digits:The first three digits are Significant figures and the fourth one denotes number of zeros. 1201=1.2K Ω Tolerance F=±1% G=±2% J=± 5% Size: 0201 0402 0603
0805 1206
1210 1812
2010 2512		 Rated Power 1= 1W 2= 1/2W
3= 3/4W
4= 1/4W
8= 1/8W
L= 1/10W
M= 1/16W
N=1/20W
O=1/32W		 Packaging T:tape&reel B:bulk
-


Construction:
8K2 1/8W 0805 1% SMD Chip Resistor Thick Film For Automatic SMT

No. Construction　 Material
1 Marking Epoxy
2 Outer Protective layer Epoxy
3 Inner Protective layer Glass
4 Resistive layer RuO2+glass
5 Conductive layer　 Ag
6 Side conductive layer NiCr
7 Ni Plating layer Ni
8 Sn Plating layer Matte Tin
9 Ceramic Substrate Al2O3

Dimension(mm):

Type(inch) L(mm) W(mm) T(mm) l1(mm) l2(mm)
0402 1.00±0.05 0.50±0.05 0.35±0.05 0.20±0.10 0.25±0.10
0603 1.60±0.10 0.80±0.10 0.45±0.10 0.30±0.20 0.30±0.20
0805 2.00±0.15 1.25±0.15 0.55±0.10 0.30±0.20 0.40±0.20
1206 3.10±0.15 1.60±0.15 0.55±0.10 0.40±0.20 0.45±0.20
1210 3.10±0.15 2.50±0.15 0.55±0.10 0.40±0.20 0.45±0.20
2010 5.00±0.20 2.50±0.20 0.55±0.10 0.50±0.25 0.50±0.20
2512 6.25±0.20 3.10±0.20 0.55±0.10 0.50±0.25 0.50±0.20

Marking on the Resistor's Body

1. For 0201 and 0402 size, no marking on the body due to the small size of the resistor

2. ±5% tolerance product: the marking is 3 digits, the first 2 digits are significant figures of resistance value and the 3rd one denotes the power number of 10, (10X)

3.±1%,±2% tolerance product: the marking is 4 digits, the first 3 digits are significant figures of resistance value and the 4th one denotes the power number of 10, (10X) 4.Standard E96 series values of 0603 ±1%: due to the small size of the resistor’s body, use 3digits code to indicate the resistance value.

 8K2 1/8W 0805 1% SMD Chip Resistor Thick Film For Automatic SMT

472=47×102=4.7KΩ

5R6=5.6Ω
Below 10Ω: 5R6=5.6Ω
4992=499×102=49.9KΩ
Below 100Ω: 6R81=6.81Ω

Packing dimension

Dimensions A B D F P0 P1 P2 W
0201 0.38±0.05 0.68±0.05 1.50±0.10 3.50±0.05 4.00±0.10 2.00±0.10 2.00±0.05 8.00±0.20
0402 0.65±0.10 1.15±0.10 1.50±0.10 3.50±0.05 4.00±0.10 2.00±0.10 2.00±0.05 8.00±0.20
0603 1.10±0.10 1.90±0.10 1.50±0.10 3.50±0.05 4.00±0.10 4.00±0.10 2.00±0.05 8.00±0.20
0805 1.65±0.20 2.40±0.20 1.50±0.10 3.50±0.05 4.00±0.10 4.00±0.10 2.00±0.05 8.00±0.20
1206 1.90±0.20 3.50±0.20 1.50±0.10 3.50±0.05 4.00±0.10 4.00±0.10 2.00±0.05 8.00±0.20
1210 2.80±0.20 3.50±0.20 1.50±0.10 3.50±0.05 4.00±0.10 4.00±0.10 2.00±0.05 8.00±0.20
1812 3.30±0.20 4.60±0.20 1.50±0.10 5.50±0.05 4.00±0.10 4.00±0.10 2.00±0.05 12.0±0.10
2010 2.90±0.10 5.30±0.10 1.50±0.10 5.50±0.05 4.00±0.10 4.00±0.10 2.00±0.05 12.0±0.10
2512 3.40±0.10 6.60±0.10 1.50±0.10 5.50±0.05 4.00±0.10 4.00±0.10 2.00±0.05 12.0±0.10




8K2 1/8W 0805 1% SMD Chip Resistor Thick Film For Automatic SMT

Shenzhen Topmay Electronic Co., Ltd is specialized in manufacturing a wide range of capacitors and resistors. The company headquarter is located in Shenzhen, a flourishing southern city that is recognized as one of the economic centers of China. Since established in 1998, Topmay deal globally based on the most competitive price and excellent service. Through many years’ hard work, it has gradually grown up to be an outstanding enterprise in the field of capacitors and resistors.

By closely following the latest market trends, we provide “one-stop” capacitors and resistors solution, which are applied in almost all kinds of PCB, communications, lighting, home appliance, industrial control, green energy, etc.


FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

8K2 1/8W 0805 1% SMD Chip Resistor Thick Film For Automatic SMT
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor
And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
8K2 1/8W 0805 1% SMD Chip Resistor Thick Film For Automatic SMT
