Adjustable Pre-Set Chip Ceramic Capacitors 4mm Green 30pf Trimmer Capacitor
Adjustable Pre-Set Chip Ceramic Capacitors 4mm Green 30pf Trimmer Capacitor
Adjustable Pre-Set Chip Ceramic Capacitors 4mm Green 30pf Trimmer Capacitor
Adjustable Pre-Set Chip Ceramic Capacitors 4mm Green 30pf Trimmer Capacitor
Adjustable Pre-Set Chip Ceramic Capacitors 4mm Green 30pf Trimmer Capacitor
Adjustable Pre-Set Chip Ceramic Capacitors 4mm Green 30pf Trimmer Capacitor
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCV01
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk
Color :
Green
Capacitance max. :
6.5pF~30pF
Working Voltage :
100V
Size/Dimensions :
0.177" L x 0.157" W (4.50mm x 4.00mm)
Package :
SMD
Ajdustment Type :
Top
Description

Chip Type Adjustable Pre-set Ceramic Capacitors 4mm Green 6.5pF~30pF

Chip Type Adjustable Pre-set Ceramic Capacitors Series J are miniature in size, thin type surface mounting devices and encased in a thermosetting plastic case.


Features

  • Minature and thin type SMD: 4.0 x 4.5 x 2.7 mm

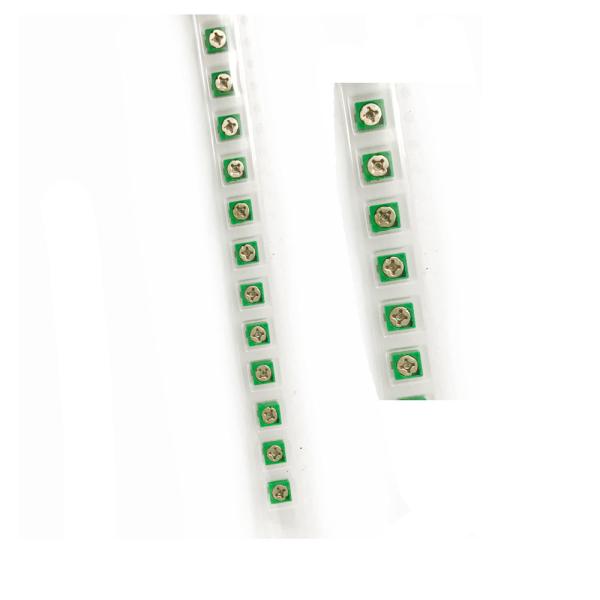

  • Embossed carrier taping types are available for automatic insertion machines
  • Easy reading of capacitance with colored-coded case

Recommended Applications

  • Hybrid IC and micromodules
  • Portable radios and cassette tape players
  • VTR cameras
  • Paging systems

Specifications

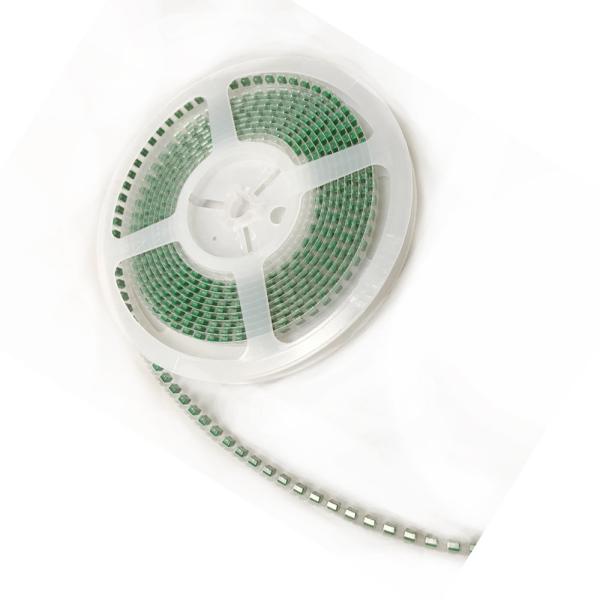

Packaging Tape & Reel (TR)
Capacitance Range 6.5pF~30pF
Adjustment Type Top
Rated Voltage 100VDC
Dielectric Withstanding Voltage 220VDC
Insulation Resistance (at C max.) 104 MΩ min. at 100 VDC and 1 minute electrifi cation
Rotation Torque 1.47 to 9.81 mN · m
Operating Temperature Range -25°C ~ 85°C
Height - Seated (Max) 0.126" (3.20mm)
Size/Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Mounting Type Surface Mount
Features General Purpose

Charateristics

Capacitance(pF) Temperature coefficient(ppm/℃) Q factor( 1MHz, Cmax) Marking color
Min Max
1.7 max.

3.0+50

0%

 NP0±200 300 min.(10 MHz) White
2.5 max. 6.0+50% NP0±200 500 min.(10 MHz) Blue
3.5 max. 10.0+50% N750±300 White
5.5 max. 20.0+50% N750±350 Red
7.5 max. 30.0+50% N1200±450 300 min.(10 MHz) Green
15.0 max. 50.0+100% N1200±600 200 min.(10 MHz) Orange

Adjustable Pre-Set Chip Ceramic Capacitors 4mm Green 30pf Trimmer Capacitor

Adjustable Pre-Set Chip Ceramic Capacitors 4mm Green 30pf Trimmer Capacitor


Adjustable Pre-Set Chip Ceramic Capacitors 4mm Green 30pf Trimmer Capacitor

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

Adjustable Pre-Set Chip Ceramic Capacitors 4mm Green 30pf Trimmer Capacitor
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
