Adjustable 6mm Ceramic Trimmer Capacitor Green 30pF 100V
Adjustable 6mm Ceramic Trimmer Capacitor Green 30pF 100V
Adjustable 6mm Ceramic Trimmer Capacitor Green 30pF 100V
Adjustable 6mm Ceramic Trimmer Capacitor Green 30pF 100V
Adjustable 6mm Ceramic Trimmer Capacitor Green 30pF 100V
Adjustable 6mm Ceramic Trimmer Capacitor Green 30pF 100V
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCV01
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk
Color :
Green
Capacitance max. :
30pF
Voltage :
100V
Diameter :
6mm
Package :
Through Hole
Type :
Variable
Description

Adjustable Capacitor 6mm Ceramicr Trimmer Capacitor Green 30pF 100V

Ceramic trimmer capacitor uses ceramic as the medium, is the more common variable capacitor. The semi-circular silver layer is plated on the moving plate (porcelain plate) and fixed plate (porcelain plate), and the electric capacity can be changed by rotating the moving plate to change the distance between the two silver plates

Quick View

Capacity range: 3pF through 120pF
Insulation resistance: 104 minutes
Withstanding voltage: 220V DC
Working voltage: 100V DC
Rotational torque: 30 to 100g/cm
Operating temperature range: -25 to 85° C


Features

  1. Small and thin size.
  2. New shape of cover can improve the flux invasion compared with current products.
  3. Improvement of the adhesion between rotor and stator leads to superior stability.
  4. Unique construction with no plastic material provides superior soldering heat resistance to maintain excellent characteristic performance after reflow soldering.
  5. Suitable for high frequency circuit due to high self-resonant frequency.

Application
Crystal oscillators, Crystal filters, pagers, cordless telephones, PHS, hand radios, cellular telephones, remote keyless entry systems, W-LAN, etc.

Specifications

Adjustable 6mm Ceramic Trimmer Capacitor Green 30pF 100VAdjustable 6mm Ceramic Trimmer Capacitor Green 30pF 100V

Capacitance(pF) Temperature coefficient(ppm/℃) Q factor( 1MHz, Cmax) Marking color
Min Max
1.6 or less 4.0+50% NP0±300 ≥500 Black
2.0 or less 5.0+50% NP0±300 ≥500 Blue
3.0 or less 10.0+50% N750±300 ≥500 White
5.5 or less 20.0+50% N750±300 ≥500 Red
6.5 or less 30.0+50% N1200±300 ≥500 Green
12.0 or less 50.0+50% N1200±300 ≥300 Yellow
15.0 or less 60.0+50% N2200±300 ≥300 Brown

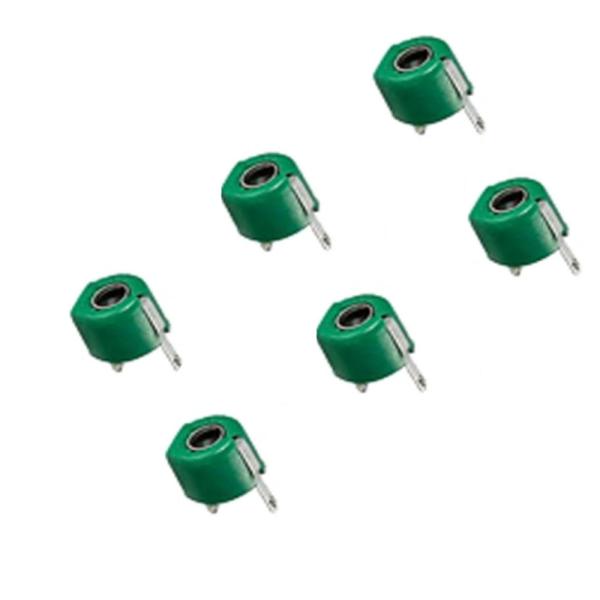

Product Photo for reference
Adjustable 6mm Ceramic Trimmer Capacitor Green 30pF 100V


Adjustable 6mm Ceramic Trimmer Capacitor Green 30pF 100V

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

Adjustable 6mm Ceramic Trimmer Capacitor Green 30pF 100V
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
