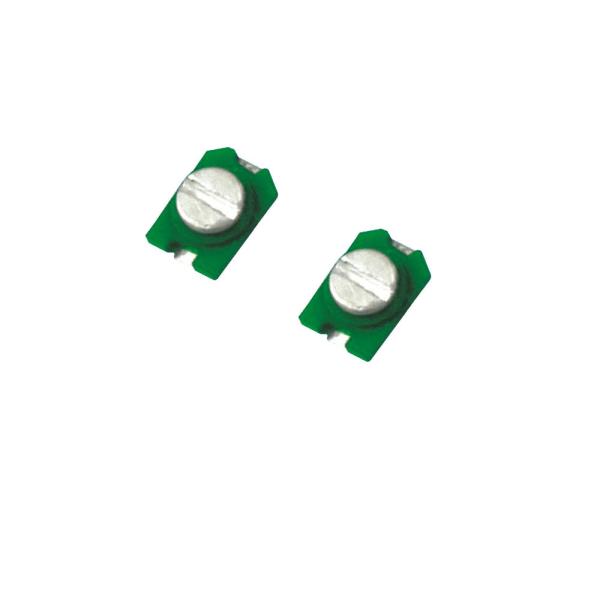

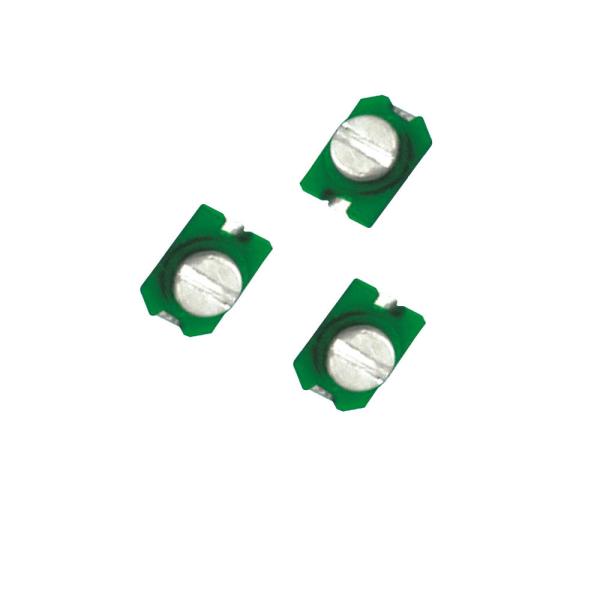

3mm SMD Ceramic Variable Trimmer Capacitor Green Surface Mount 30pF 100V

Ceramic trimmer capacitor uses ceramic as the medium, is the more common variable capacitor. The semi-circular silver layer is plated on the moving plate (porcelain plate) and fixed plate (porcelain plate), and the electric capacity can be changed by rotating the moving plate to change the distance between the two silver plates

Features

1. Small and thin size.
2. New shape of cover can improve the flux invasion compared with current products.
3. Improvement of the adhesion between rotor and stator leads to superior stability.
4. Unique construction with no plastic material provides superior soldering heat resistance to maintain excellent characteristic performance after reflow soldering.
5. Suitable for high frequency circuit due to high self-resonant frequency.

Application
Crystal oscillators, Crystal filters, pagers, cordless telephones, PHS, hand radios, cellular telephones, remote keyless entry systems, W-LAN, etc.

Specifications

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
