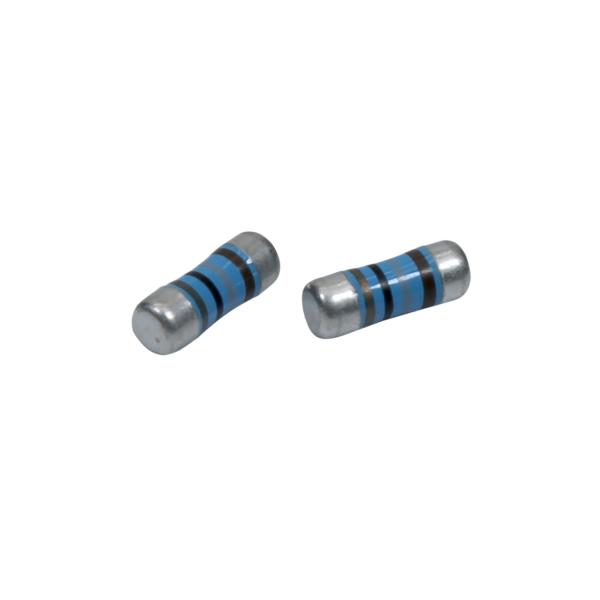

MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor
MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor
MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor
MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor
MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor
MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor
MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor
MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor
MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor
MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor
Specifications
Brand Name :
ETOPMAY
Model Number :
TMRL01
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
10000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
20~25 working days
Packaging Details :
Bulk, Tape
Product Name :
Metal Film Leadless Resistor
Resitance Range :
1Ω-10MΩ
Rated Power :
1/6W 1/4W 1/2W 1W
Tolerance :
±0.1% ±0.25% ±0.5% ±1% ±5%
Package Type :
Leadless, Surface Mount
Operating Temperature :
-55~+155℃
Application :
Telecommunication, Medical Equipment
Modle :
MELF
Description

MELF Metal Film Leadless Resistor High Presion Resistor 0204 0207 0309 1Ω-1MΩ

Features:

  • High precision, good frequency
  • Excellent overall stability.
  • Tight tolerance down to ±0.1%.
  • Low temperature coefficient , TCR down to ±10 PPM/°C.
  • High power rating up to 1 Watts.
  • Suitable for surface mount

Application:

  • Telecommunication
  • Medical Equipment
  • Measurement/Testing Equipment

Part Number:

TMRL01 - 1 2 3 4 5 6 7 8 9 10 11 12
↓ 　 ↓ ↓ ↓ ↓ ↓ ↓
Produce Code TMRL01: MELF Resistor Resistance Value Code: Three digits: The first two digits are significant figures and the third one denotes number of zeros. 394=390KΩ Four digits: The first three digits are Significant figures and the fourth one denotes number of zeros.1201=1.2K Ω Tolerance B=±0.1%
C=±0.25%
D=±0.5%
F=±1%
J=±5%
Z=Jumper		 Rated Power: 0204=1/6W(1/4WS)
0207=1/4W(1/2WS)(1WSS)
0309=1/2W(1WS)(2WSS)
0411=1W(2WS)
0515=3W		 Packaging T:tape&reel B:bulk T.C.R: K=±100ppm℃
Y=±50ppm℃
P=±25ppm℃
T=±15ppm℃
H=±10ppm℃		 Deep Power: S= +power SS=++ power
-

Electrical Characteristics:

Type Rated Power Max Working Voltage Max Overload voltage Resistance Range Operating temperature range T.C.R.
PPM/℃
±0.1% ±0.25% ±0.5% ±1% ±5%
0204 1/6W 150V 300V 33Ω-100KΩ(±10/15PPM) 33Ω-510KΩ(±25PPM) -55℃~+155
℃		 ±10,±15,±25
33Ω-1MΩ 1Ω-1MΩ 1Ω-5MΩ ±50
- 0.1Ω-5MΩ ±100
0207 1/4W 200V 400V 33Ω-100KΩ(±10/15PPM) 33Ω-1MΩ(±25PPM) ±10,±15,±25
33Ω-1MΩ 1Ω-1MΩ 1Ω-5MΩ ±50
- 0.1Ω-10MΩ ±100
0309 1/2W 500V 1KV 1Ω-1MΩ ±50,±100
0411 1W 500V 1KV 1Ω-1MΩ ±50,±100
0515 3W 500V 1KV 1Ω-1MΩ ±50,±100
0204 1/4WS 200V 400V 33Ω-1MΩ -55℃~+155
℃		 ±25
33Ω-1MΩ 1Ω-1MΩ 1Ω-5MΩ ±50
- 0.1Ω-5MΩ ±100
0207 1/2WS 300V 600V 33Ω-1MΩ ±25
33Ω-1MΩ 1Ω-1MΩ 1Ω-5MΩ ±50
- 0.1Ω-10MΩ ±100
0207 1WSS 350V 700V - 1Ω-5MΩ ±50,±100
0309 1WS 500V 1KV - 1Ω-5MΩ ±50,±100
0411 2WSS 500V 1KV - 1Ω-5MΩ ±50,±100
0515 2WS 500V 1KV - 1Ω-5MΩ ±50,±100

Dimension(mm):

MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor

Type Dimensions
L D K
0204 3.5±0.5 1.4±0.15 0.7
0207 5.9±0.5 2.2±0.2 0.8
0309 8.5±0.5 3±0.3 1.7
0411 10.5±0.5 4±0.3 2.3
0515 14.5±0.5 4.5±0.3 2.3

Construction:

MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor

No. Components
A Epoxy resin painting
B Color code
C High stability electric conduction film
D Cutline
E Ceramic core
F Caps

Packing dimension:

MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor

MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

MELF Leadless Metal Fixed Film Resistor 0204 0207 0309 1 Ohm Precision Resistor
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
