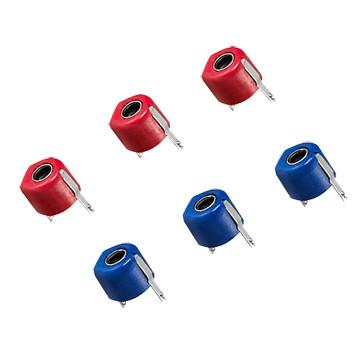

5pF 100V Ceramic Trimmer Capacitor Blue For Crystal Filter
5pF 100V Ceramic Trimmer Capacitor Blue For Crystal Filter
5pF 100V Ceramic Trimmer Capacitor Blue For Crystal Filter
5pF 100V Ceramic Trimmer Capacitor Blue For Crystal Filter
5pF 100V Ceramic Trimmer Capacitor Blue For Crystal Filter
5pF 100V Ceramic Trimmer Capacitor Blue For Crystal Filter
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCV01
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
1000pcs
Price :
0.09~0.1USD/pcs
Payment Terms :
T/T
Supply Ability :
100000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk
Color :
Blue
Capacitance :
2~5pF
Voltage :
100V
Diameter :
6mm
Description

Ceramic Capacitor Trimmer Capacitor Blue 5pF 100V for Crystal filter
Features

  1. Small and thin size.
  2. New shape of cover can improve the flux invasion compared with current products.
  3. Improvement of the adhesion between rotor and stator leads to superior stability.
  4. Unique construction with no plastic material provides superior soldering heat resistance to maintain excellent characteristic performance after reflow soldering.
  5. Suitable for high frequency circuit due to high self-resonant frequency.

Application
Crystal oscillators, Crystal filters, pagers, cordless telephones, PHS, hand radios, cellular telephones, remote keyless entry systems, W-LAN, etc.

Specifications

5pF 100V Ceramic Trimmer Capacitor Blue For Crystal Filter5pF 100V Ceramic Trimmer Capacitor Blue For Crystal Filter

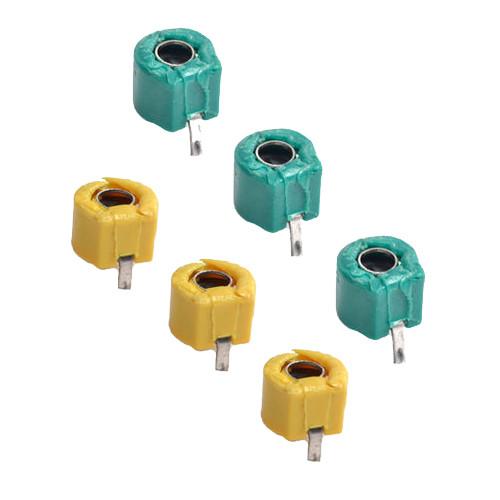

Capacitance(pF)Temperature coefficient(ppm/℃)Q factor( 1MHz, Cmax)Marking color
MinMax
1.6 or less4.00+50%NP0±300≥500Black
2.0 or less5.00+50%NP0±300≥500Blue
3.0 or less1000+50%N750±300≥500White
5.5 or less20.00+50%N750±300≥500Red
6.5 or less300+50%N1200±300≥500Green
12.0 or less500+50%N1200±300≥300Yellow
15.0 or less600+50%N2200±300≥300Brown



5pF 100V Ceramic Trimmer Capacitor Blue For Crystal Filter
5pF 100V Ceramic Trimmer Capacitor Blue For Crystal Filter

Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor

5pF 100V Ceramic Trimmer Capacitor Blue For Crystal Filter
