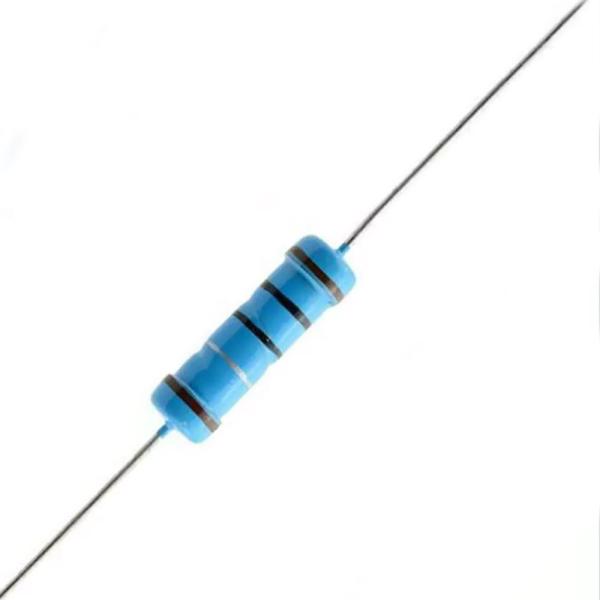

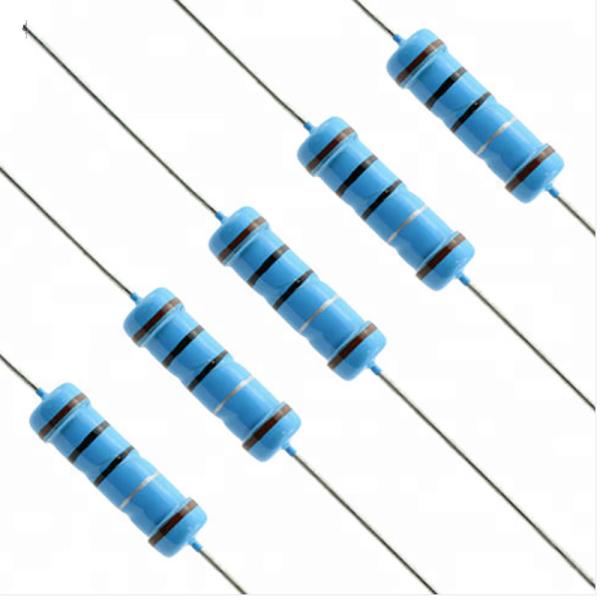

3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances
3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances
3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances
3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances
3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances
3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances
3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances
3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances
Specifications
Brand Name :
ETOPMAY
Model Number :
TMRM
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
10000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk, Tape
Product Name :
Metal Film Resistor
Resitance Vlue :
0.1ohm-10Mohm
Rated Power :
1/8W 1/6W 1/4W 1/2W 1W 2W 3W
Tolerance :
+-1%
Package :
Through the hole
Operating Temperature :
-55~+155℃
Temperature Coefficient :
100 PPM/C
Lead Material :
Copper, Iron
Description

MF 3W 0.1Ω-10MΩ 1% Fixed Resistor Metal Film Resistor For Household Appliances

Features:

  • Small volume, low noise
  • Good stability and high frequency performance
  • High heat conduction porcelain core
  • High stability metal skin film
  • High reliability end cap with good pressing
  • Epoxy paint with high insulation and solvent resistance

Application:

Because it is a lead type resistance, simple and light structure, convenient manual installation and maintenance, often used in a variety of household appliances, communications, instrumentation and radio resistance equipment.

Part Number:

TMRM - 1 2 3 4 5 6 7 8 9 10
Produce Code TMRM: Precision Metal Film Resistor Resistance Value Code: Three digits: The first two digits are significant figures and the third one denotes number of zeros. 394=390KΩ Four digits: The first three digits are Significant figures and the fourth one denotes number of zeros.1201=1.2K Ω Tolerance F=±1% G= ±2% J=± 5% Rated Power: One digits: 1= 1W 2= 1/2W 3= 3/4W 4= 1/4W 8= 1/8W L= 1/10W M=1/16W N=1/20W O=1/32W Two digits: XS=2WS YS=3WS... Packaging T:tape&reel B:bulk Terminal: empty value: general type F:Vertical form M:Horizontal form
-

Electrical Characteristics:

3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances

Power Rating Dimensioins(mm) Resistance Range(Ω) Max. Working Voltage Max. Overload Voltage Dielectric Withstanding Voltage
D L H d±0.05
1/6W 1/8W 1.8±0.2 3.2±0.5 28±2 0.4 1-10MΩ 300V 300V 300V
1-10MΩ 500V 500V 300V
1/4W 2.3±0.5 6.5±0.5 28±2 0.45 1-10MΩ 500V 500V 500V
1/2WS 2.3±0.5 6.5±0.5 28±2 0.45 1-10MΩ 700V 700V 500V
1/2W 3.2±0.5 9.0±0.5 26±2 0.5 1-10MΩ 700V 700V 700V
1WS 3.2±0.5 9.0±0.5 26±2 0.5 1-10MΩ 800V 800V 700V
1W 4.5±1.0 11.5±1.0 35±3 0.7 1-10MΩ 800V 800V 900V
2WS 4.5±1.0 11.5±1.0 35±3 0.7 1-10MΩ 800V 800V 900V
2W 5.0±1.0 15.5±1.0 33±3 0.7 1-10MΩ 800V 800V 1000V
3WS 5.0±1.0 15.5±1.0 33±3 0.7 1-10MΩ 500V 1000V 1000V

Taped Packing Dimension(mm):

3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances

Power Dimension(mm)
L±1 D±0.5 d±0.05 P±1 W1±1 W2±1
1/8W(1/4WS) 3.50 1.70 0.40 5.00 52.00 64.00
1/4W(1/2WS) 6.00 2.30 0.40 5.00 52.00 64.00
1/2W(1WS) 9.00 3.20 0.48 5.00 52.00 64.00
1W(2WS) 11.00 4.50 0.68 5.00 63.00 75.00
2W(3WS) 15.00 5.00 0.68 5.00 68.00 80.00
3W(5WS) 17.00 6.00 0.68 10.00 71.00 83.00

Construction:

3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances

No. Components
A Ceramic core
B Metal Film
C Caps
D Epoxy resin painting
E Color code
F Soldered or tinned annealed wire.

Packing: Bulk, Tape

3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances

Color Code
3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances

3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances

3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

3W 0.1Ω-10MΩ 1% Fixed Metal Film Resistor For Household Appliances
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
