Fixed Metal Film Resistor Color Ring Coating 1/4W 1/2W 3W
Fixed Metal Film Resistor Color Ring Coating 1/4W 1/2W 3W
Fixed Metal Film Resistor Color Ring Coating 1/4W 1/2W 3W
Fixed Metal Film Resistor Color Ring Coating 1/4W 1/2W 3W
Fixed Metal Film Resistor Color Ring Coating 1/4W 1/2W 3W
Fixed Metal Film Resistor Color Ring Coating 1/4W 1/2W 3W
Specifications
Brand Name :
ETOPMAY
Model Number :
TMRM
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
10000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk, Tape
Product Name :
Metal Film Resistor
Tolerance :
+-1%
Package :
Through the hole
Type :
Fixed Resistor
Rated Power :
1/8W 1/6W 1/4W 1/2W 1W 2W 3W
Resitance Vlue :
0.1Ω-10MΩ
Coating :
Color ring coating
Operating Temperature :
-55~+155℃
Description

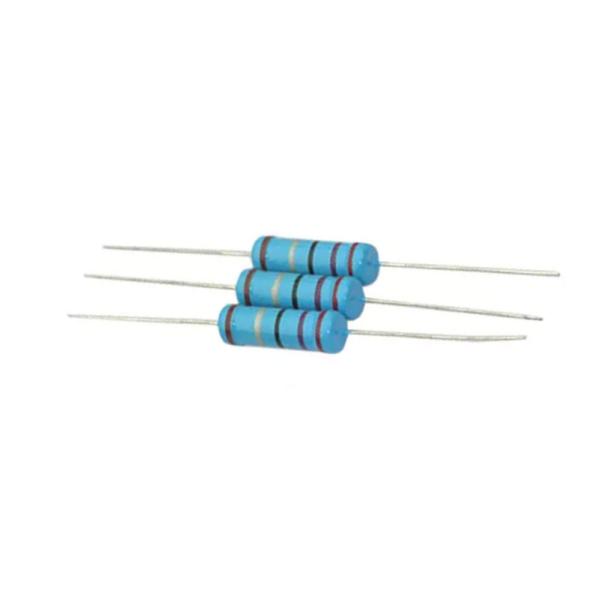

Metal Film Fixed Resistor 1/8W 1/6W 1/4W 1/2W 1W 2W 3W Color Ring Resistor

Features:

  • Small volume, low noise
  • Good stability and high frequency performance
  • High heat conduction porcelain core
  • High stability metal skin film
  • High reliability end cap with good pressing
  • Epoxy paint with high insulation and solvent resistance

Application:

Because it is a lead type resistance, simple and light structure, convenient manual installation and maintenance, often used in a variety of household appliances, communications, instrumentation and radio resistance equipment.

Main Parameters

Resistance type: metal film resistor

Rated power : 1/8w,1/4W,1/2w,1W,2W,3wPrecision resistance :±1%

Temperature coefficient: ±100ppm/°c

Production process: porcelain tube plating on alayer of alloy material

Resistance shape: cylindrical

Number of color rings :5 color rings

Operating Temperature: -55℃~+155℃

Part Number:

TMRM - 1 2 3 4 5 6 7 8 9 10
Produce Code TMRM: Precision Metal Film Resistor Resistance Value Code: Three digits: The first two digits are significant figures and the third one denotes number of zeros. 394=390KΩ Four digits: The first three digits are Significant figures and the fourth one denotes number of zeros.1201=1.2K Ω Tolerance F=±1% G= ±2% J=± 5% Rated Power: One digits: 1= 1W 2= 1/2W 3= 3/4W 4= 1/4W 8= 1/8W L= 1/10W M=1/16W N=1/20W O=1/32W Two digits: XS=2WS YS=3WS... Packaging T:tape&reel B:bulk Terminal: empty value: general type F:Vertical form M:Horizontal form
-

Electrical Characteristics:

Type Rated Power Max Working Voltage Max Overload voltage Dielectric withstanding voltage Resistance Range Operation
Temperature		 T.C.R. PPM/℃
8(1/8W) 0.125W 150V 300V 300V 1Ω~10MΩ -55℃~+155
℃		 R≤10: 200
R>10: 100
4/1/4W) 0.25W 200V 500V 350V 1Ω~10MΩ
2(1/2W) 0.5W 300V 700V 400V 1Ω~10MΩ
1(1W) 1W 350V 800V 450V 1Ω~10MΩ
X(2W) 2W 500V 800V 450V 1Ω~10MΩ
Y(3W) 3W 500V 800V 500V 1Ω~10MΩ
Z(5W) 5W 500V 1000V 500V 1Ω~10MΩ
4S(1/4WS) small size 0.25W 150V 300V 300V 1Ω~10MΩ
2S(1/2WS) small size 0.5W 250V 700V 350V 1Ω~10MΩ
1S(1WS) small size 1W 350V 800V 400V 1Ω~10MΩ
XS(2WS) small size 2W 500V 800V 450V 1Ω~10MΩ
YS(3WS) small size 3W 500V 1000V 450V 1Ω~10MΩ
ZS(5WS) small size 5W 500V 1000V 500V 1Ω~10MΩ

Parameter Performance

Item Performance
Operating Temp. Range -55℃ ~ +155℃
Temperature Coefficient 10Ω:±100PPM/℃
<10Ω:±200PPM/℃
Short Time Overload Within ±(0.5%+0.05Ω), no evidence of mechanical damage.
Insulation Resistance 104MΩ or more
Dielectric Withstanding Voltage No evidence of flashover mechanical damage, arcing or insulation breakdown.
Pulse Overload Within ±(0.5%+0.05Ω)
Terminal Strength No evidence of mechanical damage.
Resistance to Soldering Heat Within ±(0.5%+0.05Ω), no evidence of mechanical damage.
Solderability Covered with new solder by 95% at least.
Resistance to Solvent No deterioration of protective coating and markings.
Temperature Cycle Within ±(1%+0.05Ω), no evidence of mechanical damage.
Load Life in Humidity Within ±(1%+0.05Ω)
Load Life Within ±(2%+0.05Ω)

Dimension(mm):

Fixed Metal Film Resistor Color Ring Coating 1/4W 1/2W 3W

Power Dimension(mm)
L±1 D±0.5 d±0.05 P±1 W1±1 W2±1
1/8W(1/4WS) 3.50 1.70 0.40 5.00 52.00 64.00
1/4W(1/2WS) 6.00 2.30 0.40 5.00 52.00 64.00
1/2W(1WS) 9.00 3.20 0.48 5.00 52.00 64.00
1W(2WS) 11.00 4.50 0.68 5.00 63.00 75.00
2W(3WS) 15.00 5.00 0.68 5.00 68.00 80.00
3W(5WS) 17.00 6.00 0.68 10.00 71.00 83.00

Fixed Metal Film Resistor Color Ring Coating 1/4W 1/2W 3W

Power Dimension(mm)
L±1 D±0.5 d±0.05 H±2
1/8W(1/4WS) 3.50 1.70 0.40 27.00
1/4W(1/2WS) 6.00 2.30 0.40 26.00
1/2W(1WS) 9.00 3.20 0.48 24.00
1W(2WS) 11.00 4.50 0.68 29.00
2W(3WS) 15.00 5.00 0.68 30.00
3W(5WS) 17.00 6.00 0.68 30.00

Construction:

Fixed Metal Film Resistor Color Ring Coating 1/4W 1/2W 3W

No. Components
A Ceramic core
B Metal Film
C Caps
D Epoxy resin painting
E Color code
F Soldered or tinned annealed wire.

Fixed Metal Film Resistor Color Ring Coating 1/4W 1/2W 3W

Fixed Metal Film Resistor Color Ring Coating 1/4W 1/2W 3W
