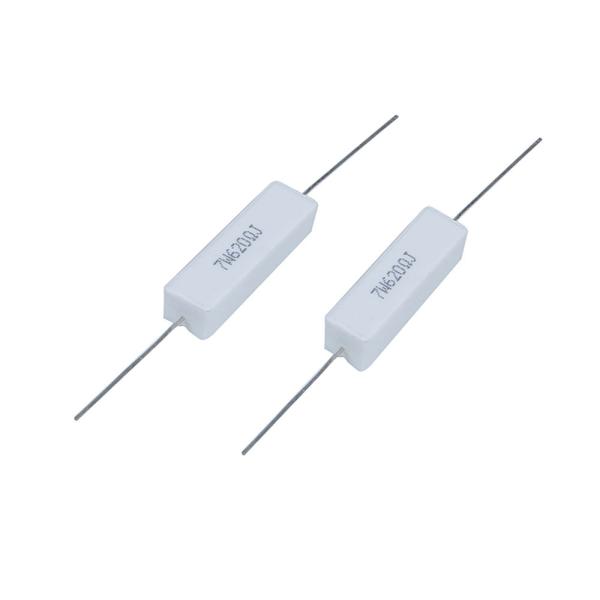

Fixed Meter SQP Ceramic Cement Resistor 7W 620Ω J 5% Low Noise
Fixed Meter SQP Ceramic Cement Resistor 7W 620Ω J 5% Low Noise
Fixed Meter SQP Ceramic Cement Resistor 7W 620Ω J 5% Low Noise
Fixed Meter SQP Ceramic Cement Resistor 7W 620Ω J 5% Low Noise
Fixed Meter SQP Ceramic Cement Resistor 7W 620Ω J 5% Low Noise
Fixed Meter SQP Ceramic Cement Resistor 7W 620Ω J 5% Low Noise
Specifications
Brand Name :
ETOPMAY
Model Number :
TMRSQ01
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
5000
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
15~20 working days
Packaging Details :
Bulk
Power Rate :
7W
Resitance Value :
620Ω
Resistance Tolerance :
±5%
Component :
Ceramic
Lead Style :
SQP
Operating Temperature :
- 55℃ ~ + 155℃
Description

Fixed Resistor For Meter SQP Ceramic Cement Resistor 7W 620Ω J 5%

Feature:

  • Low noise.
  • Excellent insulation being used in PCB.
  • In stand overload capability.
  • Long term stability.
  • Excellent heat dissipation.
  • Small linear temperature coefficient.
  • Metal oxide film cutting core can offer high range resistance (1Ω~100KΩ)
  • Operating temperature range Wire wound: - 40℃ ~ + 155℃
  • Metal oxide film: - 55℃ ~ + 155℃
  • Temperature around freezing lattice: 1W~10W 70℃ 15W above 25℃

Application:

Entertainment system, Power supply,Meter/Instruments system

Electrical Characteristics:

Power Rating Max Working Voltage Max Overload Voltage Max Intermittence Voltage Dielectric Withstanding Voltage Resistance Tolerance2
2W 350V(DC) 700V(DC) 1500V(DC) 1000V(DC) J(±5%)
3W 500V(DC) 1000V(DC) 1500V(DC) 1000V(DC) J(±5%)
5W 750V(DC) 1500V(DC) 1500V(DC) 1000V(DC) J(±5%)
7W 1000V(DC) 1500V(DC) 1500V(DC) 1000V(DC) J(±5%)
10W 1000V(DC) 1500V(DC) 1500V(DC) 1000V(DC) J(±5%)
15W 1000V(DC) 1500V(DC) 1500V(DC) 1000V(DC) J(±5%)
20W 1000V(DC) 1500V(DC) 1500V(DC) 1000V(DC) J(±5%)
30W 1000V(DC) 1500V(DC) 1500V(DC) 1000V(DC) J(±5%)
40W 1000V(DC) 1500V(DC) 1500V(DC) 1000V(DC) J(±5%)

Dimensions:

Fixed Meter SQP Ceramic Cement Resistor 7W 620Ω J 5% Low Noise

Power Rating Dimensions (mm) Resistance Range(Ω)
D L H I±1.5 d SQP( Wire Wound) SQP( Metal Oxide Film)
2W 18 7 7 20 0.5 0.1Ω-100Ω 100Ω-100K
3W 22 8 8 20 0.6 0.1Ω-200Ω 200Ω-100K
5WS 22 9.5 9.5 22 0.6 0.1Ω-500Ω 500Ω-100K
7W 35 9.5 9.5 25 0.7 0.1Ω-1K 1K-100K
10W 48 9.5 9.5 25 0.7 0.5Ω-1K 1K-100K
15W 48 13 13 25 0.7 1Ω-1K 1K-100K
20W 63 13 13 30 0.8 1Ω-2K 2K-100K
30W 75 19 19 35 0.8 0.1Ω-2K 2K-100K
50W 90 19 19 35 0.8 0.1Ω-3K 3K-100K
80W 109 19 19 35 0.8 0.1Ω-3K 3K-100K
100W 135 22 22 35 0.8 0.1Ω-3K 3K-100K

Fixed Meter SQP Ceramic Cement Resistor 7W 620Ω J 5% Low Noise

Fixed Meter SQP Ceramic Cement Resistor 7W 620Ω J 5% Low Noise

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

Fixed Meter SQP Ceramic Cement Resistor 7W 620Ω J 5% Low Noise
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor

Fixed Meter SQP Ceramic Cement Resistor 7W 620Ω J 5% Low Noise
