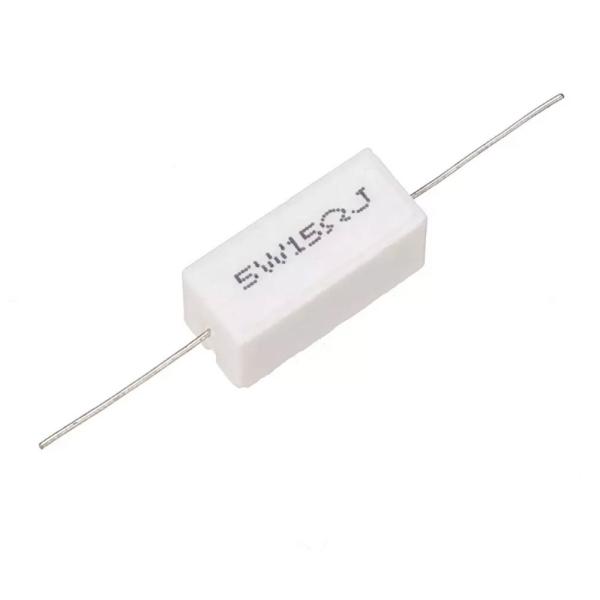

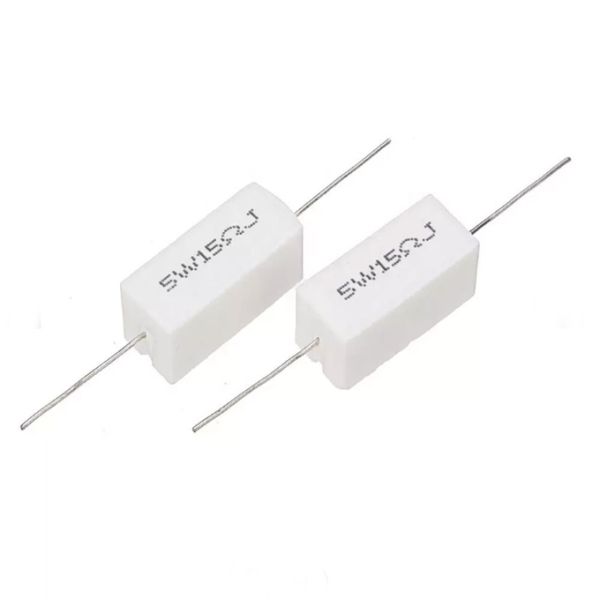

Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5%
Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5%
Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5%
Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5%
Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5%
Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5%
Specifications
Brand Name :
ETOPMAY
Model Number :
TMRSQ01
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
5000
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
15~20 working days
Packaging Details :
Bulk
Resitance Value :
15ohm
Resistance Tolerance :
±5%
Package Type :
Throught Hole
Component :
Ceramic
Lead Style :
Axial Horizontal
Operating Temperature :
- 55℃ ~ + 155℃
Description

Wirewound Resistor 5W15ΩJ SQP Ceramic Cement Resistor 5W 15ohm 5%

Feature:

  • Low noise.
  • Excellent insulation being used in PCB.
  • In stand overload capability.
  • Long term stability.
  • Excellent heat dissipation.
  • Small linear temperature coefficient.
  • Metal oxide film cutting core can offer high range resistance (1Ω~100KΩ)
  • Operating temperature range Wire wound: - 40℃ ~ + 155℃
  • Metal oxide film: - 55℃ ~ + 155℃
  • Temperature around freezing lattice: 1W~10W 70℃ 15W above 25℃

Application:

Entertainmentsystem, Power supply,Meter/Instruments system

Rating Power Dimensions
L±1.0 W±0.5 H±0.5 A±2.0 B±2.0 D±2.0
1W 14.50 6.50 6.50 20.00 20 0.55
3W 22.00 8.00 8.00 22.00 22 0.65
5W 22.00 9.50 9.50 25.00 25 0.75
7W 35.00 9.50 9.50 25.00 25 0.75
10W 48.00 9.50 9.50 25.00 25 0.75
15W 48.00 12.50 12.50 25.00 25 0.75
20W 63.00 12.50 12.50 25.00 25 0.75
30W 75.00 19.50 19.50 25.00 25 0.75
50W 90.00 19.50 19.50 22.00 22 0.75
100W 133.00 24.00 21.00 22.00 22 0.75

Construction:

NO. Components
A Padding materials
B Tinned copper lead wire
C Ceramic shell
D Fiberglass or ceramic core or resistors film
E Resistance wire or ceramic core
F Iron cap

Electrical Characteristics:

Rated Power At 70℃ Max Working Voltage Max Overload voltage Insulation Voltage Resistance Range Operating Temperature T.C.R
1W 150V 250V 1KV 0.1Ω~500KΩ -55℃~+275
℃		 T50:±50PPM/℃
T100:±100PPM/℃
T200:±200PPM/℃
T350:±350PPM/℃
T500:±500PPM/℃
3W 250V 350V 1KV 0.1Ω~500KΩ
5W 350V 500V 1KV 0.1Ω~500KΩ
7W 350V 500V 1KV 0.1Ω~500KΩ
10W 500V 750V 1.5KV 0.1Ω~500KΩ
15W 500V 750V 1.5KV 0.1Ω~500KΩ
20W 500V 750V 1.5KV 0.1Ω~500KΩ
30W 750V 1000V 1.5KV 0.1Ω~500KΩ
50W 750V 1000V 1.5KV 0.1Ω~500KΩ
100W 750V 1000V 1.5KV 0.1Ω~500KΩ

Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5%

Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5%

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5%
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor

Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5%
