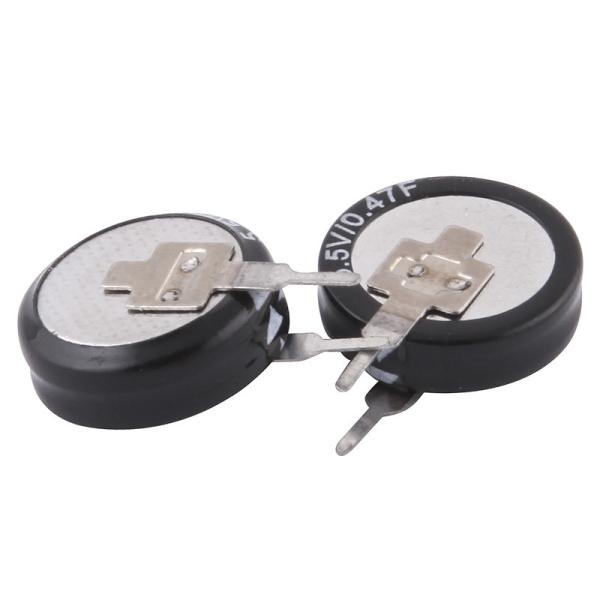

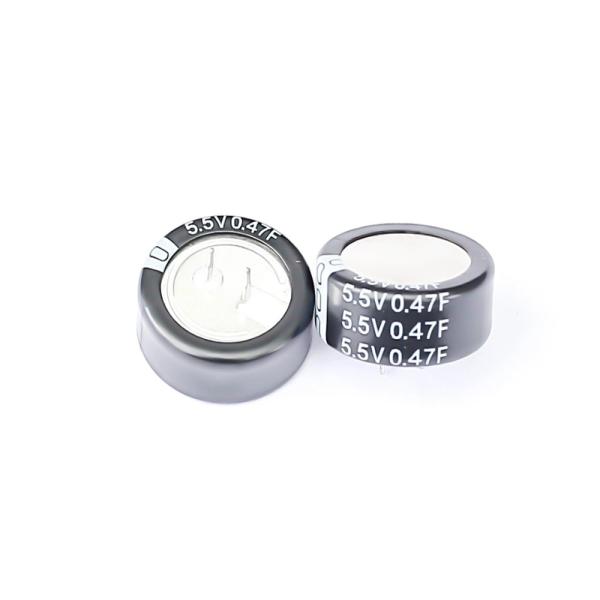

Ultra Farad Super Capacitor 0.47F 5.5V Cylindrical For Solar Energy Storage
Ultra Farad Super Capacitor 0.47F 5.5V Cylindrical For Solar Energy Storage
Ultra Farad Super Capacitor 0.47F 5.5V Cylindrical For Solar Energy Storage
Ultra Farad Super Capacitor 0.47F 5.5V Cylindrical For Solar Energy Storage
Ultra Farad Super Capacitor 0.47F 5.5V Cylindrical For Solar Energy Storage
Ultra Farad Super Capacitor 0.47F 5.5V Cylindrical For Solar Energy Storage
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCS02
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk
Capacitance :
0.47F
Rated Voltage :
5.5V
Surge Voltage :
6.0V
AC Impedance :
65Ω
DC Impedance :
100Ω
Terminal Type :
Cylindrical
Description

Ultra Capacitor Super Capacitor 0.47F 5.5V Cylindrical For Solar Energy Storage

1. Application

It is widely used in electricity meter, smart water meter, smart gas meter, tax controller, LED lawn lamp, LED spike lamp, solar energy storage products, industrial control equipment, consumer electronics and other products

2. Standard Test Conditions
All test and measurements shall be made under standard atmospheric conditions (Temperature: 15~35 ℃, Relative humidity: 25%~75% ) for testing. Before the measurements are made, the supercapacitor shall be store at the measuring temperature for a time sufficient to allow the entire supercapacitor to reach this temperature. All tests of the specification book were carried out under the following environmental conditions: Temperature: 25±1℃ Humidity: (60±15) % RH Air pressure:86 ~ 106 KPa

3. General Charateristics

Item Specification
1 Model TMCS02-474Z5.5VB-C
2 Rated discharge capacitance 0.47F
3 Capacitance tolerance -20 % ~ + 80 %
4 Rated voltage 5.5 V
5 Surge voltage 6.0V
6 Nominal impedance AC Imp 65Ω
DC Imp 100Ω
7 Weight 7.2±0.5 g
8 Leakage current (24 h) ≤ 0.005 mA
9 Working temperature range -25~ 70℃
10 Storage temperature range -40 ~ 85℃
11 Cycle life Standard charge-discharge mode ＞ 500000 cycles,︱△ C/C︱≤30%, ESR≤ 4 times of specified ESR


4. Packing

Model Quantity(PCS) Size of Packaging(L×W×H, mm) Weight (Kg)
Tray Inner box Box Inner box Box
TMCS02-474Z5. 5VB-C 80 400 1600 331×228×117 485×355×265 14± 0.5

5. Environmental Characteristics

ITEM Specification
1 Temperature Characteristics Temperature +85℃,|△C/C| ≤30%,ESR≤specified value(25 ℃); Temperature -25 ℃,|△C/C|≤50%,ESR≤ 4 times initial value(25 ℃)
2 High temperature load Temperature +85 ℃ added rated voltage, after 1000h,|△C/C|≤30%,ESR≤ 4 times specified value.
3 High temperature without load Temperature +85 ℃added rated voltage, after 1000±4h,|△C/C|≤30%,ESR≤ 2 times specified value.
4 The steady state damp heat test Temperature +40 ℃, 90-95% RH, 240hrs later, |△C/C|≤30%, ESR≤ 4 times specified value.
5 Cycle life Expectancy

added rated voltage, under room temperature, cycling charge and discharge testing for 500000 times, |△C/C|≤30%,ESR≤ 4 times initial value(25 ℃)

6. Product Dimensions

Ultra Farad Super Capacitor 0.47F 5.5V Cylindrical For Solar Energy Storage

ΦD H h P E B C
20.5±0.5mm 12.5±0.5mm 7±0.5mm 5±0.5mm 1.2±0.2mm 0.4±0.05mm 0.8±0.1mm



Ultra Farad Super Capacitor 0.47F 5.5V Cylindrical For Solar Energy Storage

Ultra Farad Super Capacitor 0.47F 5.5V Cylindrical For Solar Energy Storage


Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
