CBB60 AC Motor Run Capacitor 3.5uF 450VAC Wire Leads Terminal For Washing Machine
CBB60 AC Motor Run Capacitor 3.5uF 450VAC Wire Leads Terminal For Washing Machine
CBB60 AC Motor Run Capacitor 3.5uF 450VAC Wire Leads Terminal For Washing Machine
CBB60 AC Motor Run Capacitor 3.5uF 450VAC Wire Leads Terminal For Washing Machine
CBB60 AC Motor Run Capacitor 3.5uF 450VAC Wire Leads Terminal For Washing Machine
CBB60 AC Motor Run Capacitor 3.5uF 450VAC Wire Leads Terminal For Washing Machine
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCF23
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
15~20 working days
Packaging Details :
Bulk
Capacitance :
3.5uF
Rated Voltage :
450VAC
Material :
Polypropylene, PP
Operating Temperature :
25/85/21
Tolerance :
+/-5%
Application :
motor, pump,washing machine, etc.
Description

CBB60 AC Motor Run Capacitor For Washing Machine 3.5uF 450VAC Wire Leads Terminal

Brief Introduction

CBB60 motor run capacitors utilize low-loss metalized polypropylene film for dielectric. The CBB60 motor run capacitors are encapsulated with resin and housed in a self-extinguishing plastic case which allows for superior reliability and a high mechanical shock and vibration strength. The CBB60 series of motor run capacitors is ideal for start and run applications in single-phase asynchronous motors and general A.C. applications at industrial frequencies. The motor run capacitor is small in bulk, has long life-span and good self-healing characteristic. The motor run capacitor is widely used as the start up and running capacitor that is special for micro water pump, cleaning machine, washing machine, and single-phase water pump motor.

Features

  • ABS, poly (propylene), aluminum shell, etc.,
  • Good stability, impact current resistance
  • Strong overload capacity
  • Small loss, high insulation reistance
  • Long rated working life
  • Excellent self-healing performance
  • Built-in flame retardant epoxy resin filling safety and reliablity

Applications

Mainly used in refrigerators, air conditioners, AC motors, water pumps, generators, cleaning machines, household appliances, electronic products and so on.

Specifications

No. Items Specifications
01 Capacitance 3.5μF ±5%
02 Rated Voltage 450VAC
03 Life Class C
04 Dielectric Material Metallized Polypropylene Film
05 Rated Frequency 50/60Hz
06 Between Terminals Withstand voltage Applied voltage of 900VAC between two terminals for 60s, no phenomenon of breakdown and spark over.
07 Terminals to case Withstand voltage Applied voltage of 2500VAC to terminals to case for 60s, no phenomenon of breakdown and spark over.
08 Loss Tangent Less than 0.002(100Hz)
09 Size(mm) 30*60
10 Terminals 2+2 Lug Pin or Flexible Wire leads
11 Case material PP
12 Explosion-proof S0
13 Climatic Category 40/85/21

Mechanical Property

No. Items Standard Reference
1 Lead-end Strength: The capacitor has been subjected to the following test, and the exterior should not be damaged. .Tensile Force: 20N, 0.5 square mm at least for external lead The exterior should not be damaged.
2 Vibration: vibration frequency 10-55Hz, amplitude 0.35mm X.Y.Z, Each axis has 10 frequency cycles per minute, 1 times per minute No change for capacitance value
3 Damp heat test :Severity 21days The change of capacitance value is less than 0.5%

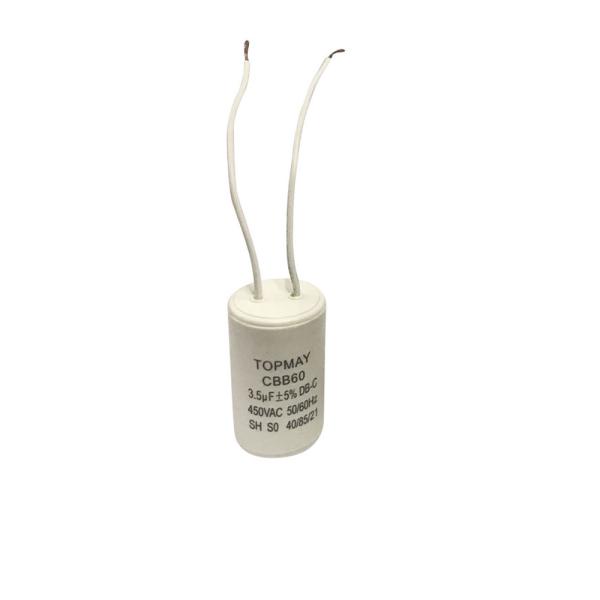

Product Photos

CBB60 AC Motor Run Capacitor 3.5uF 450VAC Wire Leads Terminal For Washing MachineCBB60 AC Motor Run Capacitor 3.5uF 450VAC Wire Leads Terminal For Washing Machine

CBB60 AC Motor Run Capacitor 3.5uF 450VAC Wire Leads Terminal For Washing Machine

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

CBB60 AC Motor Run Capacitor 3.5uF 450VAC Wire Leads Terminal For Washing Machine

Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor

More details, kindly contact us freely!
