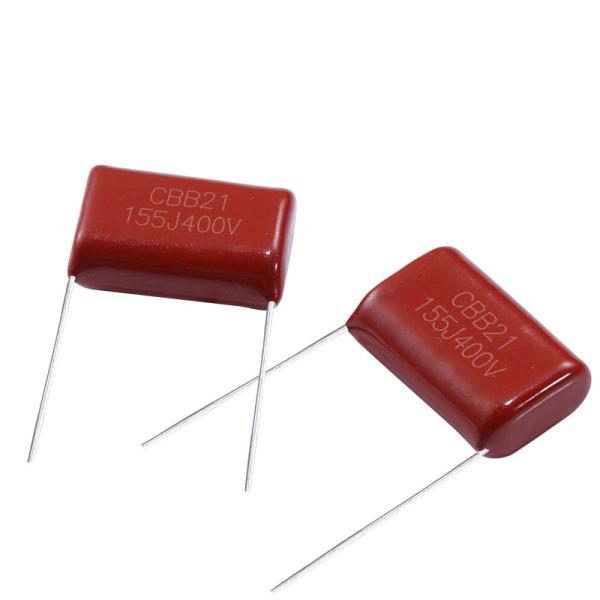

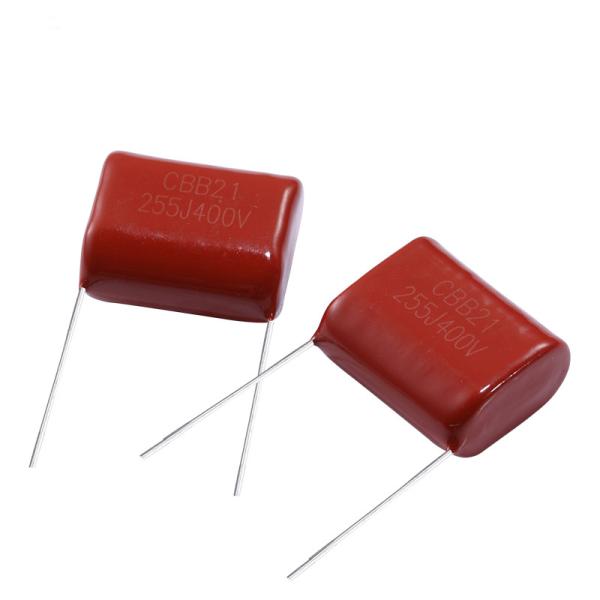

CBB21 105 155 255J 400V Metallized Polypropylene Film Capacitor For Energy Saving Lamps
Product Features
 | CBB21 - Metallized Polypropylene Film CapacitorThe capacitor is made of polypropylene film as the medium and is wound by depositing aluminum on the film as the electrode by means of vacuum evaporation. It has good charateristics as below: Very low loss at high frequency, suitable for high current. High Insulation resistance, long life due to self-healing effect. Widely used in high frequency, DC, AC and pulse circuits. |
Applications
It is widely used for DC pulsation, pulse, and AC voltage reduction in instruments, meters, TV sets and household electrical appliances. It is especially suitable for various types of energy-saving lamps and electronic rectifiers.
Specifications & Outline Drawing
| Product Name | Metallized Polypropylene Film Capacitor |
| ||||||||||||||
| Climatic Category | -40~+105℃ | |||||||||||||||
| Rated Voltage | 400VDC | |||||||||||||||
| Capacitance Range | 1uF, 1.5uF, 2.5uF | |||||||||||||||
| Capacitance Tolerance | ±5%(J) | |||||||||||||||
| Voltage proof | 1.6UR(5s) | |||||||||||||||
| Dissipation Factor | ≤1%(20℃, 1KHz) | |||||||||||||||
| Insulation Resistance (20℃,1min) | ≥7500MΩ (CR≤ 0.33 uF) ≥2500S (CR＞0.33 uF) | |||||||||||||||
Dimensions

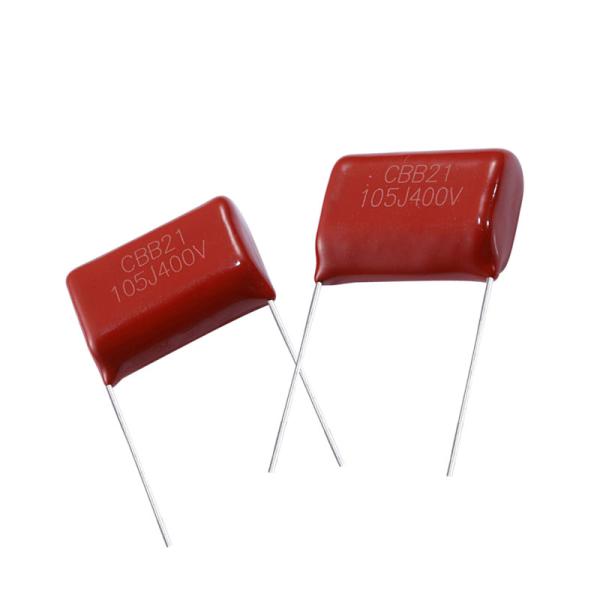

105J400V
| W(mm)±1.0 | T(mm)±1.0 | H(mm) | P(mm) | ||||
| 22 | 8.5 | 15 | 20 |

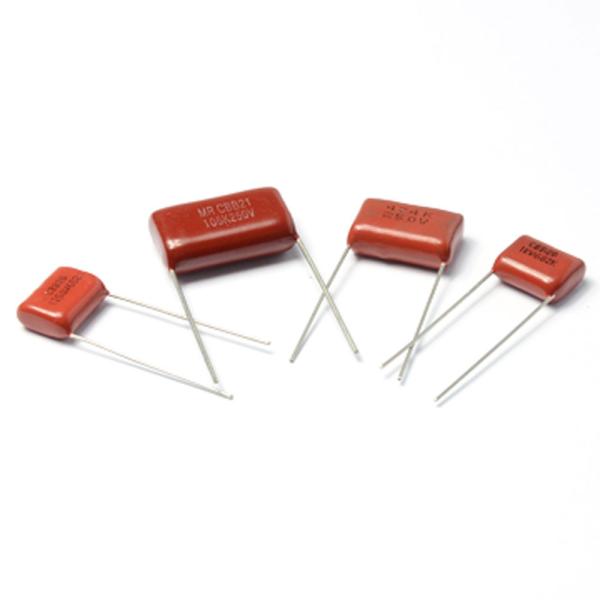

Product Details
FAQ Of Topmay Capacitor
1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
