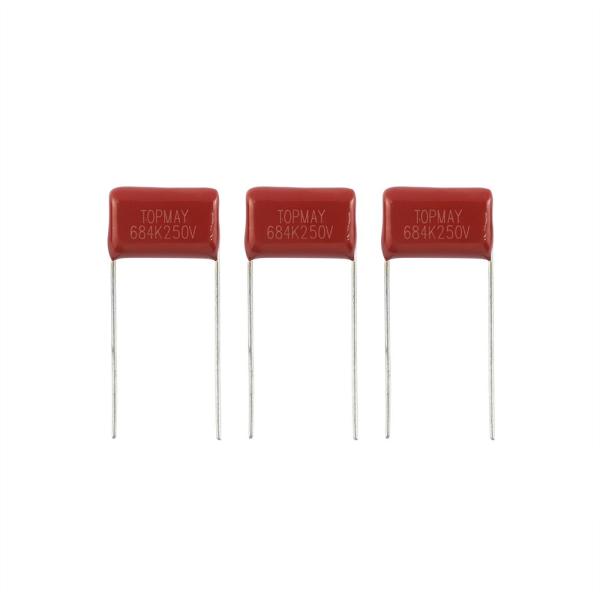

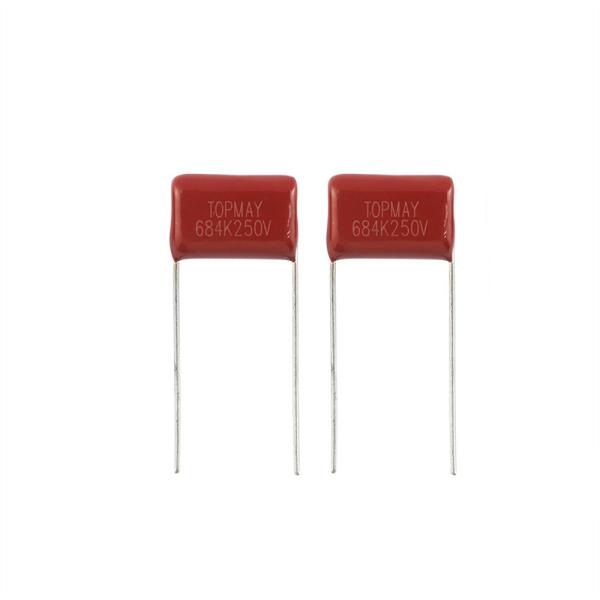

CBB21 Metallized Pp Film Capacitor MKP 684K250V For Filtering Circuits
CBB21 Metallized Pp Film Capacitor MKP 684K250V For Filtering Circuits
CBB21 Metallized Pp Film Capacitor MKP 684K250V For Filtering Circuits
CBB21 Metallized Pp Film Capacitor MKP 684K250V For Filtering Circuits
CBB21 Metallized Pp Film Capacitor MKP 684K250V For Filtering Circuits
CBB21 Metallized Pp Film Capacitor MKP 684K250V For Filtering Circuits
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCF15
Certification :
SGS( RoHS), UL
Place of Origin :
China
MOQ :
5000pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
15~20 working days
Packaging Details :
Bulk, Tape
Capacitance :
680nF
Voltage :
250VDC
Pitch :
15mm
Material :
Polypropylene
Tolerance :
+/-10%
Operating Temperature :
-40~+85C
Description

CBB21 Metallized Polypropylene Film Capacitor MKP 684K250V For Filtering Circuits

Cbb21/22 (MPP) Metallized polypropylene film capacitor belongs to the largest category of film capacitors. It is wound with metallized polypropylene film, sealed externally with epoxy resin, non-inductive structure, with less loss, small internal temperature rise, can withstand high pulse, large current, high frequency resistance, less capacity change, negative temperature coefficient and other advantages.

CBB21 capacitors are widely used in high frequency, DC, AC and pulse circuits and are widely used in high current applications.

Features

Metallized polypropylene film, epoxy resin coating

Low dissipation factor with high frequency
Small inherent temperature rise
High insulation resistance, good self-healing property
Suitable for DC, pulse, high frequency and high current circuits
S-shaping correction of color TV sets

Outline Drawing

Non-inductive, wound with metallized polypropylene film as the dielectric and
welectrode ,with copper-clad steel leads and epoxy resin coating.

Specifications

Reference Standard GB100190-88(IEC 60384-16)

CBB21 Metallized Pp Film Capacitor MKP 684K250V For Filtering Circuits
Climatic Category 40/85/21
Rated Voltage 250VAC
Capacitance Range 0.68uF
Capacitance Tolerance 10%(K)
Voltage Proof 1.6UR(5s)
Dissipation Factor

≤0.1%(20°C, 1KHz)

Insulation Resistance

(20℃ ,1min)

≥25000MΩ (CR≤ 0.33 uF)
≥7500S (CR>0.33 uF)

Dimensions
W(mm)±1.0 T(mm)±1.0 H(mm) P(mm)
17 6.2 11 15
Product Details:
CBB21 Metallized Pp Film Capacitor MKP 684K250V For Filtering Circuits
CBB21 Metallized Pp Film Capacitor MKP 684K250V For Filtering Circuits

CBB21 Metallized Pp Film Capacitor MKP 684K250V For Filtering Circuits

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details, Kindly contact us freely!
