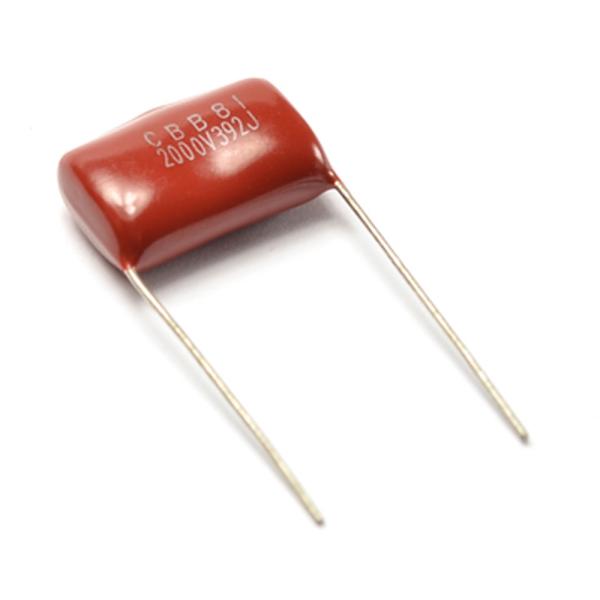

CBB81 392J2000V Metallized Polypropylene Film Capacitor For Switching Power Supply

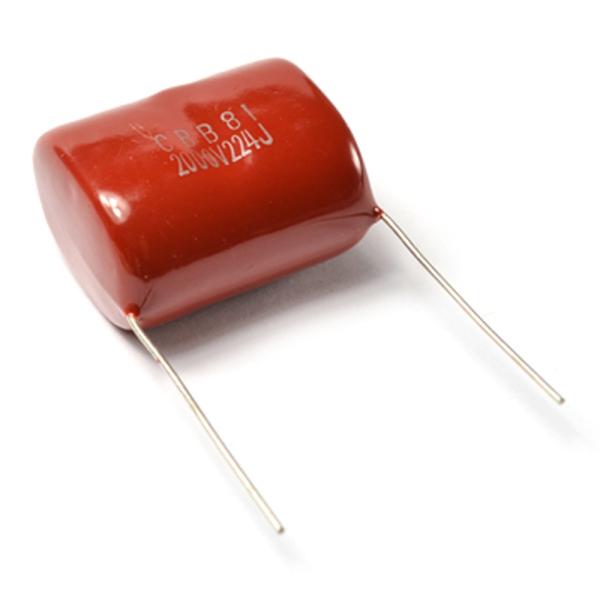

CBB81 capacitor is a kind of capacitor with metallized polypropylene film and aluminum foil in series, non-inductive winding, and wrapped in epoxy resin. It is very large and can achieve very high voltage, which is the most frequently used capacitor on the high voltage circuit.

Feature

• internal series structure
• low loss at high frequency
• strong overcurrent ability
• high insulation resistance
• long life, stable temperature
• loss Angle tangent decreases with the increase of working frequency

Application:

Electric mosquito bat, Switching power supply, Ultraviolet disinfection lamp, Ultrasonic mask electrical circuit, etc.

What is the role of CBB81 capacitor?

CBB81 capacitors are commonly used in high pulse, high current circuits. It can withstand high voltage, high frequency, large current, mostly used for resonant circuit. CBB81 capacitor is generally used for electrical appliances that need instant surge of high current.

CBB21 and CBB81: Although both are polypropylene film capacitors, there is still a big difference between the two. In some high-voltage and high-current circuits, CBB21 capacitor is no longer competent, so CBB81, a new product, is introduced. CBB81 capacitor is wound by single mask + aluminum foil + optical film, and its structure is more complex than CBB21. But it can withstand high frequency, high voltage, high current.

CBB81 has the advantage of high frequency, high voltage and high current resistance, but has the disadvantage of small capacity and large volume.

Specifications:

Referance Standard		GB10190 (IEC60384-14)
Climatic Category		40/85/21
Rated Voltage		2000V
Capacitance Range		0.0039uF
Capacitance Tolerance		±5%(J)
Voltage proof		1.6UR(5s)
Dissipation Factor		≤0.08%(20℃, 1kHz)
Insulation Resistance		≥25000MΩ (CR≤ 0.33 uF) ≥7500S (CR>0.33 uF)

Packing:
Bulk, Ammo, T&R

OUTSIDE MARKS FOR CAPACITANCE:

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details, Kindly contact us freely!

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
