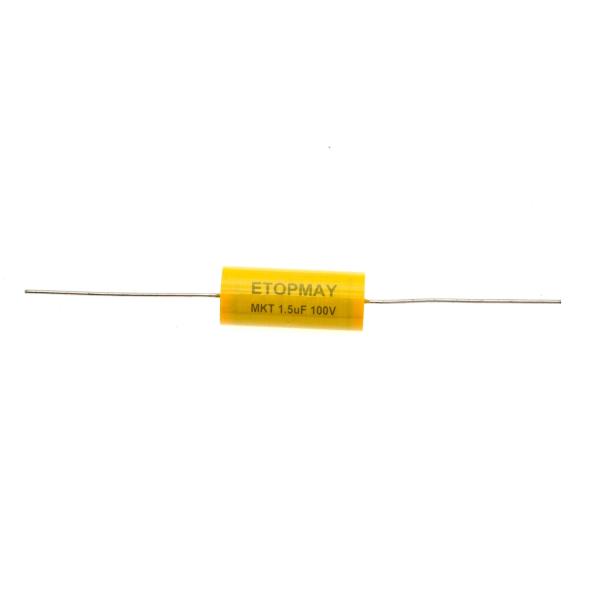

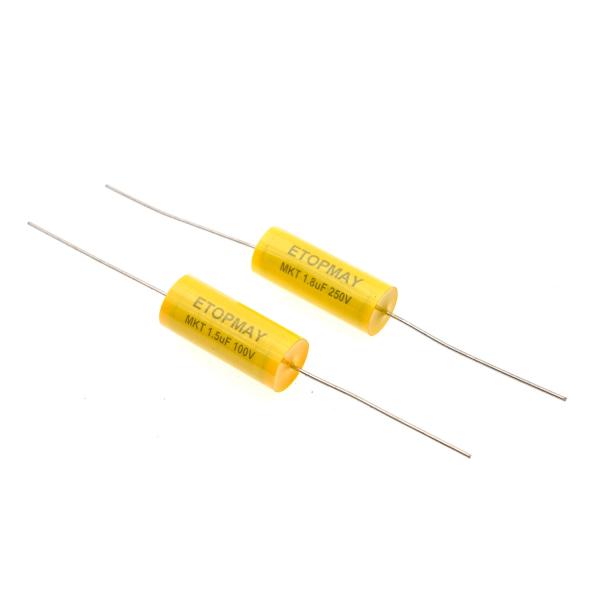

CL20 Axial Audio Film Capacitors Metallized Polyester 1.5uF 100V
CL20 Axial Audio Film Capacitors Metallized Polyester 1.5uF 100V
CL20 Axial Audio Film Capacitors Metallized Polyester 1.5uF 100V
CL20 Axial Audio Film Capacitors Metallized Polyester 1.5uF 100V
CL20 Axial Audio Film Capacitors Metallized Polyester 1.5uF 100V
CL20 Axial Audio Film Capacitors Metallized Polyester 1.5uF 100V
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCF11
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
2000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
25~30 working days
Packaging Details :
Bulk
Capacitance :
1.5uF
Tolerance :
+/-5% (J)
Rated Voltagee :
100VDC
Shape :
Cylindrical Round
Material :
Polyester
Sleeve Color :
Yellow
Description

CL20 Axial Cylindrical Metallized Polyester Film Capacitor 1.5uF 100V

Features

  • Non-inductive construction, wound with metallized Polyester film as dielectric;
  • Flat oval or Cylindrical round shape, low noise
  • Good self-healing property, good stability and reliability
  • Long life due to self-healing effect.
  • Axial lead, coated with high temperature adhesive tape, the epoxy potting
​Configuration
Coiled with dielectrics and electrodes made of metallized polyester films, conducting cp wire in horizontal direction.

Product Application:

Suitable for blocking, by-pass and coupling of DC and signals to VHF range. Widely used in filter, noise suppression and low pulse circuits.

Specifications:

Referance Standard GB 10190-88(IEC 60384-16) CL20 Axial Audio Film Capacitors Metallized Polyester 1.5uF 100V
Climatic Category 40/85/21
Rated Voltage 100V
Capacitance Range 1.5uF
Capacitance Tolerance ±5%(J)
Voltage proof 1.6UR(5s)
Dissipation Factor ≤0.1%(20℃, 1KHz)
Insulation Resistance ≥25000MΩ (CR≤ 0.33 uF) ≥7500S (CR≥0.33 uF) (20℃,1min)


Packing:
Bulk

Product Details

CL20 Axial Audio Film Capacitors Metallized Polyester 1.5uF 100V

OUTSIDE MARKS FOR CAPACITANCE:

PF 100 1000 10000 100000 1000000
NF 0.1 1.0 10.0 100.0 1000.0
μF 0.0001 0.001 0.01 0.1 1.0
Code 101 102 103 104 105

Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor

CL20 Axial Audio Film Capacitors Metallized Polyester 1.5uF 100V

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
