Audio Black Film Axial Polypropylene Capacitors Round 1500VDC
Audio Black Film Axial Polypropylene Capacitors Round 1500VDC
Audio Black Film Axial Polypropylene Capacitors Round 1500VDC
Audio Black Film Axial Polypropylene Capacitors Round 1500VDC
Audio Black Film Axial Polypropylene Capacitors Round 1500VDC
Audio Black Film Axial Polypropylene Capacitors Round 1500VDC
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCF20
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
2000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000pcs per month
Delivery Time :
25~35 working days after payment
Packaging Details :
Bulk
Capacitance :
1nF~1uF
Voltage :
1500VDC
Tolerance :
+/-10%
Shape :
Cylindrical( Round)
Color :
Black
Size :
For choice based on value
Description

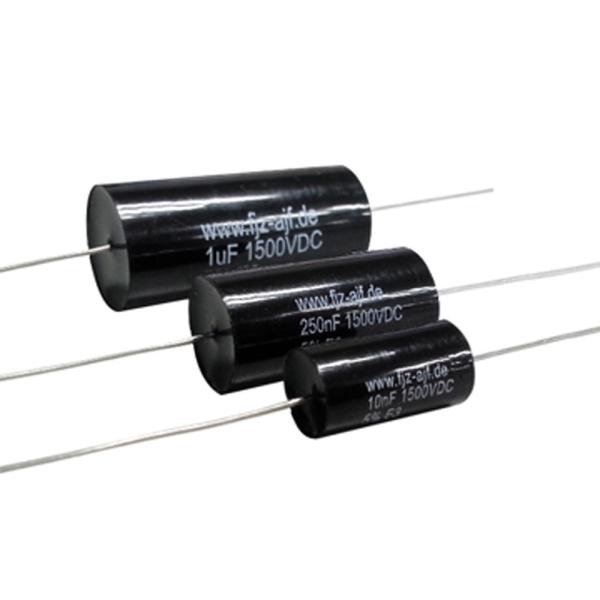

1500VDC Black Polypropylene Audio Capacitors Axial Round Film Capacitor

These axial leaded capacitors are rated at 1500VDC, wide capacitance range from 1nF to 1uF. The customized color in black makes them very suitable for repairing traditional classic radios of 1940's to 1960's.

Feature:

Low loss, low inductance

Superb stability

High Insulation resistance, long life due to self-healing effect.

Widely used in high frequency, DC, AC and pulse circuits.

Configuration

Non-inductive, wound with metallized polypropylene film as the dielectric and electrode, copper-clad steel leads or flexiable cord, for easy solder, outer wrapped of polypropelene and end sealed with epoxy resin.

Application

Widely used in communication equipment, radio, television, power supply, instruments and other products.

Referance Standard GB 10190-88(IEC 60384-16)
Audio Black Film Axial Polypropylene Capacitors Round 1500VDC
Operating Temperature -40℃~ +105℃
Rated Voltage 100V, 250V, 400V, 630V.DC
Capacitance Range 1nF ~ 1μF
Capacitance Tolerance ±10%(K)
Voltage proof 1.6UR(5s)
Dissipation Factor ≤0.1%(20℃, 1KHz)
Insulation Resistance ≥25000MΩ (CR≤ 0.33 uF) ≥7500S (CR≥0.33 uF) (20℃,1min)

Size for reference: Can be customized according to customer demand processing

Capacitance Voltage Size(D*L)mm Topmay P/N
1nF 1500VDC 11*25 TMCF20-102K1500VB
2.2nF 1500VDC 7*20 TMCF20-222K1500VB
3.3nF 1500VDC 7.5*20 TMCF20-332K1500VB
4.7nF 1500VDC 8.5*20 TMCF20-472K1500VB
6.8nF 1500VDC 10.5*20 TMCF20-682K1500VB
10nF 1500VDC 11.5*20 TMCF20-103K1500VB
15nF 1500VDC 12.5*20 TMCF20-153K1500VB
25nF 1500VDC 8*25 TMCF20-253K1500VB
33nF 1500VDC 11.5*25 TMCF20-333K1500VB
47nF 1500VDC 12.5*25 TMCF20-473K1500VB
68nF 1500VDC 15.5*25 TMCF20-683K1500VB
100nF 1500VDC 15.5*25 TMCF20-104K1500VB
250nF 1500VDC 15.5*31 TMCF20-254K1500VB
330nF 1500VDC 21.5*36 TMCF20-334K1500VB
470nF 1500VDC 12*46 TMCF20-474K1500VB
1uF 1500VDC 23*46 TMCF20-105K1500VB

Product Pictures

Audio Black Film Axial Polypropylene Capacitors Round 1500VDC

Audio Black Film Axial Polypropylene Capacitors Round 1500VDC

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
