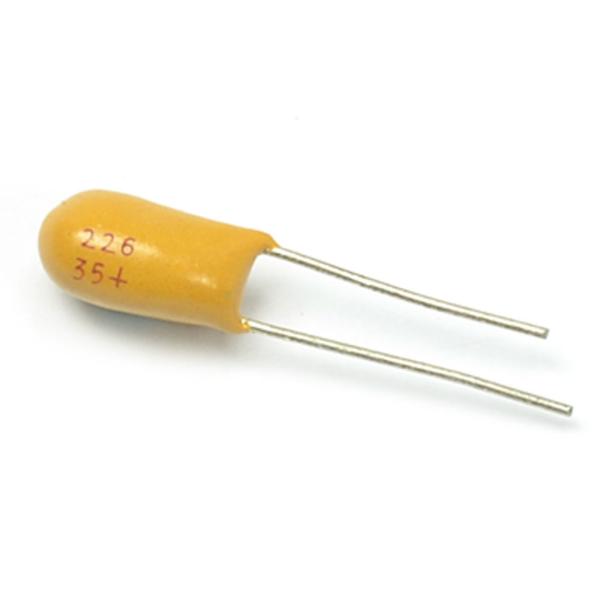

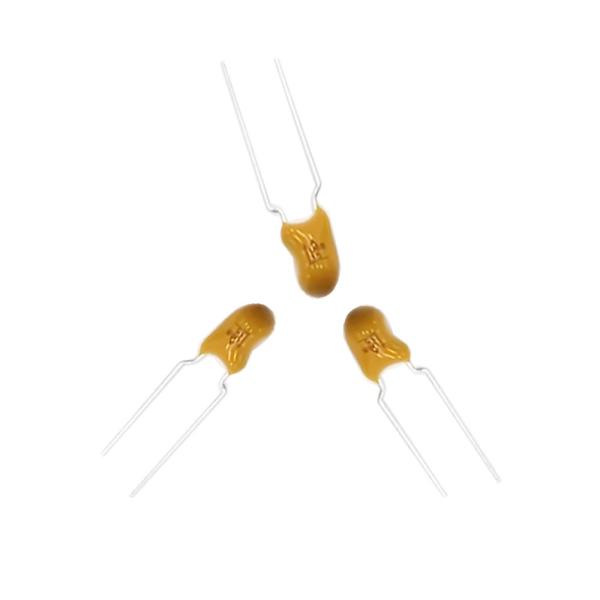

Dipped Tantalum Capacitor 22uF 35V Radial Solid Tantalum Capacitors

Dipped tantalum capacitor is one of the most popular through hole style capacitors. It is often used in commercial and industrial applications. Compared to other types of capacitors, it has a higher volumetric efficiency and superior frequency characteristics.

Features:

• Small size but large capacity.
• Wide temperature range of -55° to +125°C
• Durable and unlimited shelf life
• Low leakage current and impedance
• Polarized, dipped type

Application:

Dipped tantalum capacitors are widely used for bypassing, coupling, blocking, filtering and timing in wide range of commercial, industrial and military applications.

General characteristics

Table 1 Operating temperature:-55 +125 .

Capacitance Tolerance: 20%, 10%, 5%(special order).

Capacitance Range:0.1uF 330uF.. I 0 0.01C0U0 or 0.5uA(special order),(whichever is greater).

DC leakage current(20 ):I 0 0.02C0U0 or 1uA Dissipation factor (20 ):see table 1.

Temperature performance:see table 1.

Climatic category:55/125/10. Life test: 1000 hours.

Table 1

Part No: TMCT01-226M35VP5.08B

Exterior and Dimension

The lead spacing and form outline are very important in selecting your choice of dipped tantalum capacitor.

Lead spacing is determined is offered in a few common spreads. They are indicated in the picture below.

Company View

Shenzhen Topmay Electronic Co., Ltd is specialized in manufacturing a wide rangeof capacitors and resistors. The company headquarter is located in Shenzhen, a flourishing southern city that is recognized as one of the economic centers of China. Since established in 1998, Topmay deal globally based on the most competitive price and excellent service. Through many years’ hard work, it has gradually grown up to be an outstanding enterprise in the field of capacitors and resistors.

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
