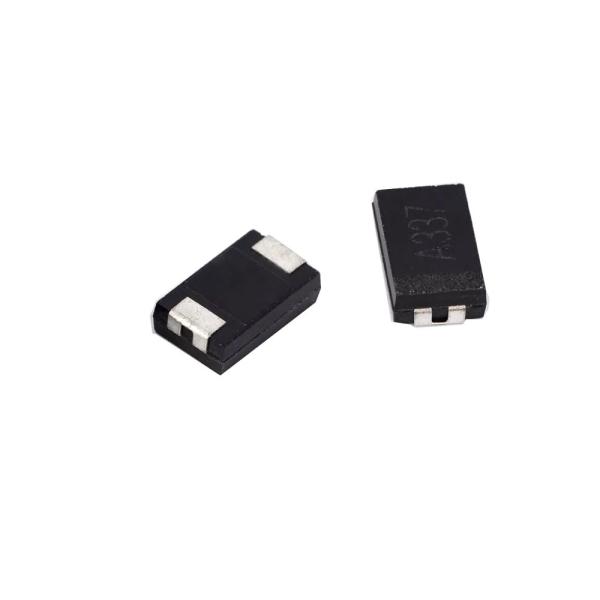

Surface Mount Polymer Tantalum Capacitor 20% 35V 33uF SMD 7343
Surface Mount Polymer Tantalum Capacitor 20% 35V 33uF SMD 7343
Surface Mount Polymer Tantalum Capacitor 20% 35V 33uF SMD 7343
Surface Mount Polymer Tantalum Capacitor 20% 35V 33uF SMD 7343
Surface Mount Polymer Tantalum Capacitor 20% 35V 33uF SMD 7343
Surface Mount Polymer Tantalum Capacitor 20% 35V 33uF SMD 7343
Surface Mount Polymer Tantalum Capacitor 20% 35V 33uF SMD 7343
Surface Mount Polymer Tantalum Capacitor 20% 35V 33uF SMD 7343
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCT07
Certification :
SGS( RHOS)
Place of Origin :
China
MOQ :
2000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100000pcs per month
Delivery Time :
25~30 working days
Packaging Details :
Tape&Reel
Capacitance :
33uF
Rated Voltage :
35V
Tolerance :
±20%
Operating Temperature Range :
-55℃＋ 125℃
D.F. :
10%@ 25℃ , 100Hz
ESR (Equivalent Series Resistance) :
60mΩ@ 100KHz
Leakage Current :
46uA @ 25℃
Application :
General Purpose
Package Type :
Surface Mount
Size/Dimension :
0.287"Lx0.169"W(7.30mmx4.30mm)
Package/ Case :
2917 (7343 Metric)
SPQ :
500pcs/reel
Description

Tantalum Capacitor Surface Mount Polymer Tantalum Capacitor 20% 35V 33uF SMD 7343

Brief Introduction

Conductive polymer electrolyte chip aluminum electrolytic capacitor uses aluminum foil as the capacitor matrix and conductive polymer polymerization layer as the cathode electrolyte. It is made by stacking and welding multiple layers of aluminum foil and encapsulated with epoxy resin. Due to the excellent conductive property of conductive polymer and its good adhesion with medium layer, it has ultra-low ESR and excellent temperature performance due to its multi-layer parallel structure.

Technical Characteristics

Product Name Conductive Polymer Chip Tantalum Capacitors
Part No. TMCT07-336M35VTE
Detailed Description CA55 33µF 20% 35V SMD 2917 (7343 Metric), 60 mOhm
DC Leakage Current(DCL) 46 µA @ 25℃
ESR (Equivalent Series Resistance) 60 mOhm @ 100KHz
Dissipation Factor(DF) 10% @ 25℃ & 100Hz
Size Code E CASE
Size / Dimension 0.287"Lx 0.169"W(7.30mm x 4.30mm)
Package Tape & Reel (TR)
Features General Purpose

Part No: TMCT07-336M35VTE

Part Number Naming Rule:

TMCT 07 _ 336 M 35V T E
Product Category Sub-Series 　 Capacitance Tolerance-20% Voltage Package:Tape&Reel Case Size

Dimensions and Case Size

Surface Mount Polymer Tantalum Capacitor 20% 35V 33uF SMD 7343

Size(mm):

Case Code L W H S W1
E 7.40±0.3 4.40±0.3 4.58±0.3 1.3±0.2 2.4±0.2

Application

Communications, 5G IOT, consumer electronics, automobile,medical equipments and etc., and also aerospace , drilling instrumentation and other industries for defense.
Surface Mount Polymer Tantalum Capacitor 20% 35V 33uF SMD 7343
Surface Mount Polymer Tantalum Capacitor 20% 35V 33uF SMD 7343

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

Surface Mount Polymer Tantalum Capacitor 20% 35V 33uF SMD 7343

Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
