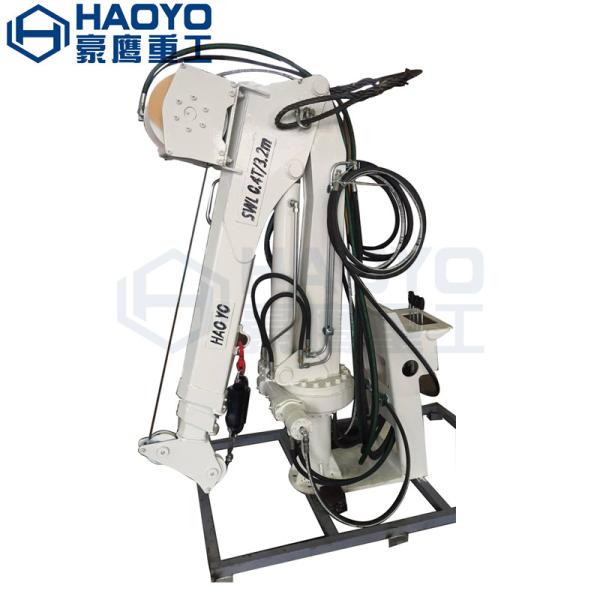

China 2 t Knuckle Marine Services Ship Deck Cargo Hose Crane
China 2 t Knuckle Marine Services Ship Deck Cargo Hose Crane
Specifications
Brand Name :
HAOYO
Model Number :
HAOYO-HC
Certification :
BV,CCS,NK,ABS,DNV,LR
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T,L/C
Supply Ability :
300 UNITS
Delivery Time :
90days
Packaging Details :
NUDE
Use Situation :
New
Color :
as required
Operation formal :
Ground operation
Shipment Packaging :
According to The Export Standards
Trademark :
HAOYO
Origin :
Shanghai
Sling Type :
Wire Rope
Type of crane :
knuckle boom marine crane
Application :
Deck crane,ship to ship crane,pipe handling crane
Features :
Stiff bow free booms with the dexterity for accurate, safe
Description

China 2 t Knuckle Marine Services Ship Deck Cargo Hose Crane

These knuckle boom cranes can be found on vessels with a big deck area and

are also used on fixed platforms. The costs compared with knuckle booms with

hydraulic extension are less high. Another advantage is that these cranes require

less maintenance due to the fact that there are fewer joints.

Please provide following necessary information,so we can quote right Model crane.

1. Crane SWL requested

2. Max. working radius of the crane

3. The crane will be used on ship, offshore platform or fixed platform (motor 380V

or 440V)

4. If you have any other special request for the crane, please advise us


China 2 t Knuckle Marine Services Ship Deck Cargo Hose Crane

Drawing of China 2 t Knuckle Marine Services Ship Deck Cargo Hose Crane


China 2 t Knuckle Marine Services Ship Deck Cargo Hose Crane

Technical Parameters

Crane Type

Outreach

(m)

 Lifting capacity(kg)

Lifting Moment
(kNm)

 Total Moment (kNm) Pedestal Outer Diameter (mm) Slewing (Angle) Operating Pressure (bar) Dead Weight (kg)
HC 2700 1.5-5 1745-500 25.6-25 25.6-25 27.2 325 200 230-260
HC4501 3.4-11 1180-230 38.9-24.2 44.9 450 400 300 560-760
HC6500 3.5-9.2 1600-480 55.7-43.8 58.7 450 400 300 530-670
HC8500 2.5-10.6 3450-620 85-65.5 93.7 450 400 300 700-1060
HC8501 3.5-13.8 2100-250 72-33.8 79.3 450 400 310 810-1230
HC11001 3.7-14 2550-390 93.4-54 104.8 450 400 310 820-1270
HC12000 4-14.3 2850-470 113-64.3 116.6 596 420 300 1080-1520
HC15500 4-14.3 3600-600 140.2-84 144.1 596 420 300 1190-1710
HC18500 4.1-14.3 4350-940 174.1-1 196.8 620 400 300 1820-2400
HC23500 4.1-16.4 5400-900 217-144.2 235.9 620 400 300 2190-3230
HC29002 4.1-21.1 6200-560 245.4-115.5 282.9 620 400 300 2360-2890
HC 32080 4-13.7 7700-1900 299.6-255.5 340 620 400 300 2740-4065
HC32002 4.1-20.4 7440-725 301-145.6 352 709 endless 300 2360-2890
HC41002 4.1-20.8 9160-1015 370.2-207.7 431 709 endless 300 2740-4065

Quick Details

STANDARDS OPTIONS
Automatic speed control Radio remote control
Low / high temperature operation Operator’s cabin with fan, heater, wiper and chair etc.
Oil return Standing platform
Continuous rotation system Overload protection
Power supply link system Electric hydraulic power unit
Long life surface treatment: anti-corrosion Winch
Structure is sand blasted and metalized Loading limited device
Double primer coat and two layers paint Cooling system for hydraulic oil
Special cylinder for marine environment Workman basket


Production Flow
China 2 t Knuckle Marine Services Ship Deck Cargo Hose Crane

Certifications
China 2 t Knuckle Marine Services Ship Deck Cargo Hose Crane
About us
China 2 t Knuckle Marine Services Ship Deck Cargo Hose Crane
1.Professional:Sales & Design department is to create the right type for the customer's
unique requirement. Work staffs in workshop are to ensure the strong structure and
good perform in every detail.

2.Price:We have our own factory,so we can control the cost & delivery time.

3.Service:HAOYO after sales service provides timely and efficient support,both to
our clients and partners.


Miss Wang ---Foregin trademan
Hp: 0086-17521634863
Email: cindy@haoyogroup.com

OFFICE ADD: NO. 500, JIANYUNRD,PUDONG,SHANGHAI
FACTORY ADD: INDUSTRIAL PARK, CHANGSHU, JIANGSU
Web: www.haoyogroup.com
