Telescopic Knuckle Boom Types of Vessel Crane Offshore Marine Ship Deck Crane
Telescopic Knuckle Boom Types of Vessel Crane Offshore Marine Ship Deck Crane
Specifications
Brand Name :
HAOYO
Model Number :
HY
Certification :
BV,CCS,DNV,ABS,LR
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T,L/C
Supply Ability :
300 UNITS
Delivery Time :
90 DAYS
Packaging Details :
NUDE
Price :
30000-50000USD
Use Situation :
New
Operation form :
Ground operation
Shipment Packing :
According to The Export Standards
Specification :
According To The Export Standards
Trademark :
HAOYO
Origin :
Shanghai
Sling Type :
Wire Rope
Power Source :
Electric Motor
Installation :
Overall Rapid Disassembly
Type of crane :
foldable boom marine crane
Application :
Service Crane, Provision and Cargo Lifting Crane, Service Crane, Fishing Crane
Features :
Flexible and Strong, Saving Space,Multi-function
Description

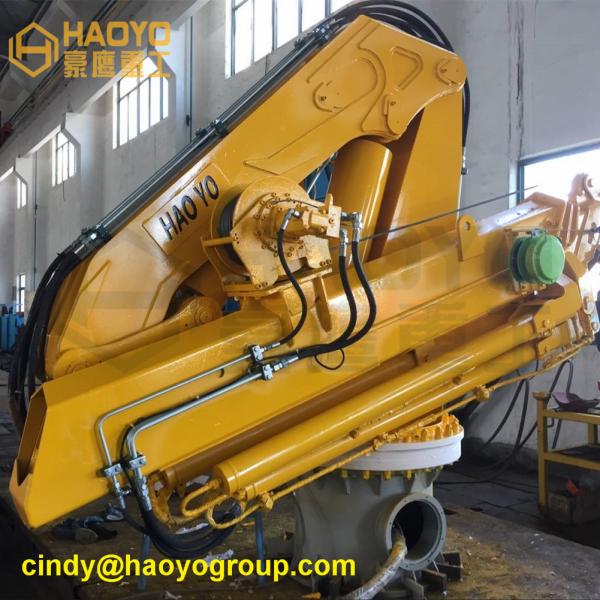

Telescopic Knuckle Boom Types of Vessel Crane Offshore

Foldable Hydraulic Crane

Because the full foldable boom structure, the hydraulic crane can load and unload

in strongly and flexibly.Due to the compact structure, the foldable boom crane is

installed on many types of the vessel especially the space is limited.Our cranes

have been designed for a wide range of applications including deck operations ,

shipboard,offshore platforms,fishing and sea farming industry and more.Our cranes

are also perfect for different installations .

Telescopic Knuckle Boom Types of Vessel Crane Offshore Marine Ship Deck Crane

Drawing(Telescopic Knuckle Boom Types of Vessel Crane Offshore)

Telescopic Knuckle Boom Types of Vessel Crane Offshore Marine Ship Deck Crane

Certificates(Telescopic Knuckle Boom Types of Vessel Crane Offshore)

Telescopic Knuckle Boom Types of Vessel Crane Offshore Marine Ship Deck Crane

Technical Patameters

MODEL Outreach(m) Safety Load(kN) Lifting Moment(kNm) Total Moment(r/min) Pedestal Diameter(mm) Dead Weight(t)
ECK 150 8.0-12.0 2.1-1.1 132-168 241 885 2.8-3.2
ECK 250 10.0-14.0 2.9-1.8 242-290 381 885 3.7-4.3
ECK 350 12.0-16.0 3.6-2.3 370-430 603 1095 5.3-6.3
ECK 550 14.0-18.0 4.7-3.2 573-660 980 1325 7.8-9.2
ECK 750 14.0-18.0 6.1-4.2 749-855 1375 1490 11.5-12.8
ECK1150 16.0-20.0 7.3-5.2 1040-1160 1765 1490 12.7-14.0
ECK1450 16.0-20.0 9.0-6.4 1268-1440 2555 1770 19.2-23.0
ECK 220 27.5 30,0 2200 4000 1800 25.0
ECK 300 30.0 30.0 3000 5000 2065 27.5
ECK 400 32.0 30.0 4000 6300 2050 30.0
ECK 500 35.0 35.0 5000 8000 2240 35.0
ECK 800 37.0 50.0 8000 11500 2271 55.0
ECK1000 40.0 60.0 10000 14400 2536 70.0
ECK1200 43.0 80.0 12000 18000 2550 100.0
ECK1600 45.0 100.0 16000 34000 3166 150.0
ECK2000 50.0 125.0 20000 44000 3987 200.0
ECK2500 50.0 150.0 25000 50000 4000 220.0
ECK3000 50.0 200.0 30000 60000 4500 275.0

More product(Telescopic Knuckle Boom Types of Vessel Crane Offshore)

Telescopic Knuckle Boom Types of Vessel Crane Offshore Marine Ship Deck Crane

Packaging&Delivery(Telescopic Knuckle Boom Types of Vessel Crane Offshore)

Packaging Details: Mechanical part packing by plastic bag, electric parts by wooden box or standard exporting packing/
Electrical and other parts are packaged by high quality plywood crates, main beams are packaged by Plastic Film
Delivery Detail: Within 30 days after received your advance payment

Telescopic Knuckle Boom Types of Vessel Crane Offshore Marine Ship Deck Crane

Our services

  • HAOYO has a strong and 24 hours stand by team, which is able for installation
  • and repair etc. urgent case.

HAOYO provides more than 13 months grantee period with spare parts and free

mending for all products.

  • HAOYO now is working with third part Service Company, so our customers can

  • get technical support all over the world.

  • HAOYO grab repair term is experienced in overhaul various brands and types grab.

  • HAOYO hydraulic and electric engineers had been worked in the area more than

  • 20 years,they are very profession at all relation components and their working principle.

  • HAOYO representatives are available to provide assistance almost anywhere in

  • the world.Due to HAOYO has subsidiaries of hydraulic and electric, nearly all spare

  • parts can be delivered directly from stock.

About us

Telescopic Knuckle Boom Types of Vessel Crane Offshore Marine Ship Deck Crane

1.Professional:Sales & Design department is to create the right type for the customer's
unique requirement. Work staffs in workshop are to ensure the strong structure and
good perform in every detail.

2.Price:We have our own factory,so we can control the cost & delivery time.

3.Service:HAOYO after sales service provides timely and efficient support,both to
our clients and partners.

Contact us


Miss Wang ---Foregin trademan

Hp: 0086-17521634863

Email: cindy@haoyogroup

OFFICE ADD: NO. 500, JIANYUNRD,PUDONG,SHANGHAI

FACTORY ADD: INDUSTRIAL PARK, CHANGSHU, JIANGSU

Web: www.haoyogroup.com
