Specifications
Brand Name :
HAOYO
Model Number :
HAOYO
Certification :
BV,CCS,NK,ABS,DNV,LR
Place of Origin :
China
MOQ :
1 unit
Price :
USD 90000 /SET
Payment Terms :
T/T,L/C
Supply Ability :
50 UNITS
Delivery Time :
90days
Packaging Details :
NUDE
Use Situation :
New
Color :
as required
Operation formal :
Ground operation
Shipment Packaging :
According to The Export Standards
Trademark :
HAOYO
Origin :
Shanghai
Control way :
hydraulic
Application :
Luxury Yacht, Oceanographic, Work boat, Oilfield, Coast Guard or Military industries
Features :
Stiff bow free booms with the dexterity for accurate, safe, and efficient material handling
Introduction :
The crane installed with lifting winches.The crane can’t extend and folded. But for its simple structure, it’s price and maintenance cost is the lowest.
Description

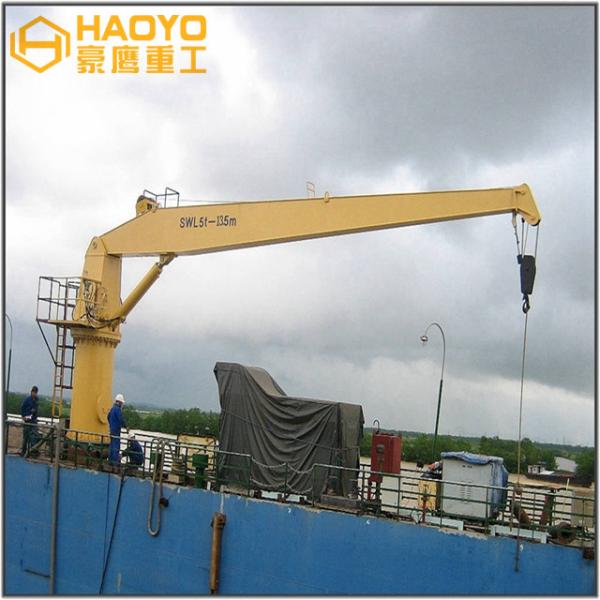

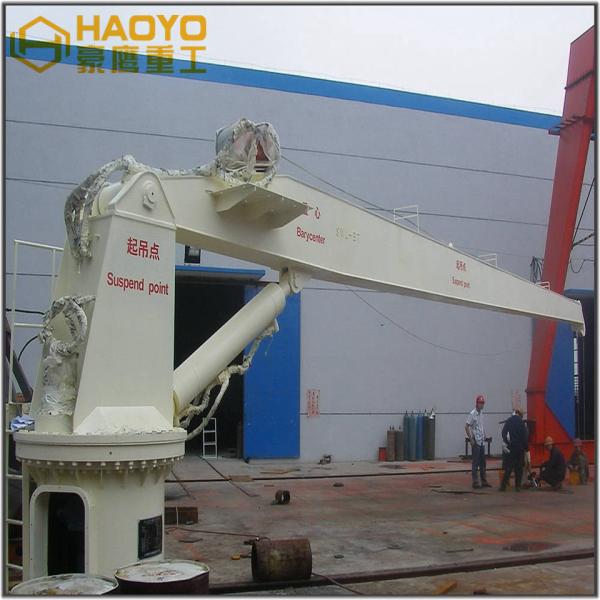

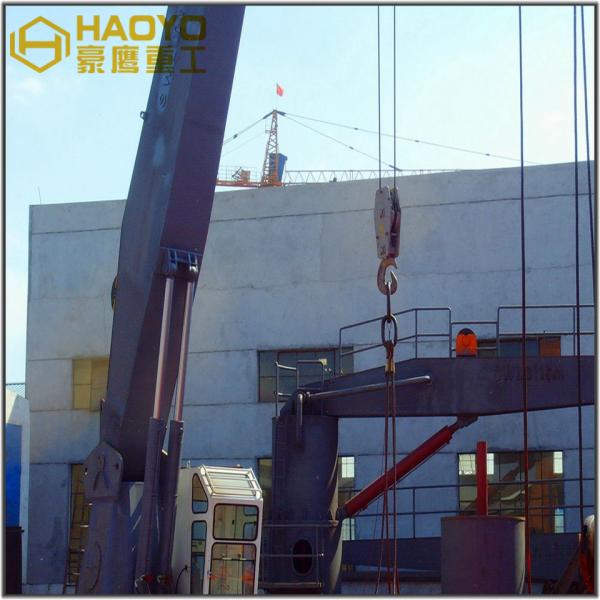

Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates

HAOYO stiff boom cranes are suitable equipped on the deck for bulk cargo ships or

offshore with enough free space. The crane installed with lifting winches. As lack of

hydraulic cylinder on the boom, the crane can’t extend and folded. But for its simple

structure, compare to the knuckle boom crane and telescopic crane, it’s price and

maintenance cost is the lowest.The cranes are available in the range from 140–30000 kNm

lifting moment and are supplied according to customer requirements. The most notable

features include: Stiff bow free booms with the dexterity for accurate, safe, and efficient

material handling.Stiff boom cranes are typically used in dock, on fixed installations

and in harbor conditions.

Please provide following necessary information,so we can quote right Model crane.

1. Crane SWL requested

2. Max. working radius of the crane

3. The crane is for hose handling or normal cargo

4. The crane will be used on ship, offshore plantform or fixed plantform (motor 380V

or 440V)

5. If you have any other special request for the crane, please advise us


Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane

Drawing of Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane


Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane

Technical Parameters of Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane

Crane Type Outreach(m) Lifting capacity(kg)

Lifting Moment
(kNm)

 Total Moment (kNm) Pedestal Outer Diameter (mm) Slewing (Angle °) Operating Pressure (bar) Dead Weight (kg)
HC 2700 1.5-5 1745-500 25.6-25 25.6-25 27.2 325 200 230-260
HC4501 3.4-11 1180-230 38.9-24.2 44.9 450 400 300 560-760
HC6500 3.5-9.2 1600-480 55.7-43.8 58.7 450 400 300 530-670
HC8500 2.5-10.6 3450-620 85-65.5 93.7 450 400 300 700-1060
HC8501 3.5-13.8 2100-250 72-33.8 79.3 450 400 310 810-1230
HC11001 3.7-14 2550-390 93.4-54 104.8 450 400 310 820-1270
HC12000 4-14.3 2850-470 113-64.3 116.6 596 420 300 1080-1520
HC15500 4-14.3 3600-600 140.2-84 144.1 596 420 300 1190-1710
HC18500 4.1-14.3 4350-940 174.1-1 196.8 620 400 300 1820-2400
HC23500 4.1-16.4 5400-900 217-144.2 235.9 620 400 300 2190-3230
HC29002 4.1-21.1 6200-560 245.4-115.5 282.9 620 400 300 2360-2890
HC 32080 4-13.7 7700-1900 299.6-255.5 340 620 400 300 2740-4065
HC32002 4.1-20.4 7440-725 301-145.6 352 709 endless 300 2360-2890
HC41002 4.1-20.8 9160-1015 370.2-207.7 431 709 endless 300 2740-4065


Quick Details(Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane)

STANDARDS OPTIONS
Automatic speed control Radio remote control
Low / high temperature operation Operator’s cabin with fan, heater, wiper and chair etc.
Oil return Standing platform
Continuous rotation system Overload protection
Power supply link system Electric hydraulic power unit
Long life surface treatment: anti-corrosion Winch
Structure is sand blasted and metalized Loading limited device
Double primer coat and two layers paint Cooling system for hydraulic oil
Special cylinder for marine environment Workman basket


Production Flow(Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane)


Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane
Certifications(Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane)


Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane

About us (Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane)


Offshore Pedestal Fixed Marine Cranes with ABS CCS Certificates Marine Ship Deck Crane

1.Professional:Sales & Design department is to create the right type for the customer's

unique requirement. Work staffs in workshop are to ensure the strong structure and good

perform in every detail.

2.Price:We have our own factory,so we can control the cost & delivery time.

3.Service:HAOYO after sales service provides timely and efficient support,both to our

clients and partners.

Contact Details

Miss cindy
Mobile:0086-17521634863

Office Add:No 500,JIANYUN ROAD,PUDONG,SHANGHAI
Factory Add 1:INDUSTRIAL PARK,CHANGSHU,JIANGSU
Facrory Add 2:SOUTH OF SHENG JIANGNAN ROAD PUDONG SHANGHAI
Web:www.haoyogroup.com
