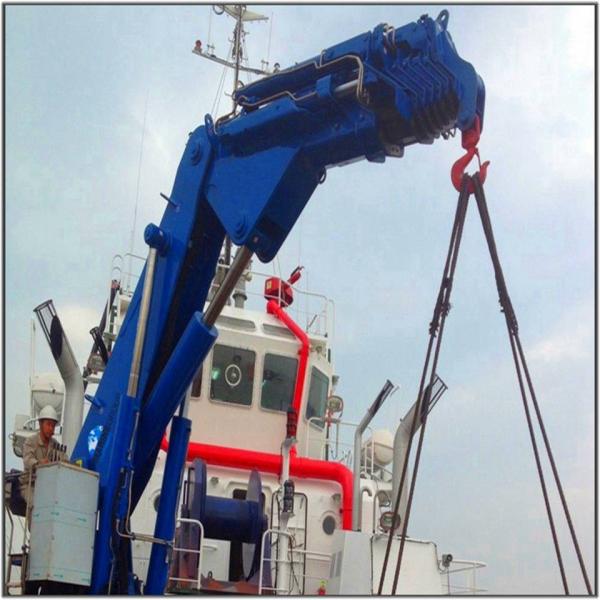

Hydraulic Knuckle Boom Crane Installation Manufacturer Marine Ship Deck Crane
Hydraulic Knuckle Boom Crane Installation Manufacturer Marine Ship Deck Crane
Specifications
Brand Name :
HAOYO
Model Number :
HAOYO-HC
Certification :
BV,CCS,NK,ABS,DNV,LR
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T,L/C
Supply Ability :
300 UNITS
Delivery Time :
90days
Packaging Details :
NUDE
Price :
50000-100000USD/Set
Use Situation :
New
Color :
as required
Operation formal :
Ground operation
Shipment Packaging :
According to The Export Standards
Trademark :
HAOYO
Origin :
Shanghai
Sling Type :
Wire Rope
Description

Hydraulic Knuckle Boom Crane Installation Manufacturer

These knuckle boom cranes can be found on vessels with a big deck area and are also

used on fixed platforms. The costs compared with knuckle booms with hydraulic extension

are less high. Another advantage is that these cranes require less maintenance due to

the fact that there are fewer joints.All of the cranes in the Knuckle Boom line offer several

key features that make them powerful solutions for the marine work environment. The

most notable of these features include: Fully foldable cranes for safe and secure storage,

when space is limited. Articulated booms with the dexterity for accurate, safe, and efficient

material handling. Telescopic booms for extended bow free reach, even under heavy loads.

Hydraulic Knuckle Boom Crane Installation Manufacturer Marine Ship Deck Crane

Drawing of Hydraulic Knuckle Boom Crane Installation Manufacturer
Hydraulic Knuckle Boom Crane Installation Manufacturer Marine Ship Deck Crane

Technical Parameters

Crane Type

Outreach

(m)

Lifting capacity

(kg)

Lifting Moment
(kNm)

 Total Moment (kNm) Pedestal Outer Diameter (mm) Slewing (Angle)

Operating Pressure

(bar)

 Dead Weight (kg)
HC 2700 1.5-5 1745-500 25.6-25 25.6-25 27.2 325 200 230-260
HC4501 3.4-11 1180-230 38.9-24.2 44.9 450 400 300 560-760
HC6500 3.5-9.2 1600-480 55.7-43.8 58.7 450 400 300 530-670
HC8500 2.5-10.6 3450-620 85-65.5 93.7 450 400 300 700-1060
HC8501 3.5-13.8 2100-250 72-33.8 79.3 450 400 310 810-1230
HC11001 3.7-14 2550-390 93.4-54 104.8 450 400 310 820-1270
HC12000 4-14.3 2850-470 113-64.3 116.6 596 420 300 1080-1520
HC15500 4-14.3 3600-600 140.2-84 144.1 596 420 300 1190-1710
HC18500 4.1-14.3 4350-940 174.1-1 196.8 620 400 300 1820-2400
HC23500 4.1-16.4 5400-900 217-144.2 235.9 620 400 300 2190-3230
HC29002 4.1-21.1 6200-560 245.4-115.5 282.9 620 400 300 2360-2890
HC 32080 4-13.7 7700-1900 299.6-255.5 340 620 400 300 2740-4065
HC32002 4.1-20.4 7440-725 301-145.6 352 709 endless 300 2360-2890
HC41002 4.1-20.8 9160-1015 370.2-207.7 431 709 endless 300 2740-4065

Certifications(Hydraulic Knuckle Boom Crane Installation Manufacturer)

Hydraulic Knuckle Boom Crane Installation Manufacturer Marine Ship Deck Crane
Quick Details(Hydraulic Knuckle Boom Crane Installation Manufacturer)

STANDARDS OPTIONS
Automatic speed control Radio remote control
Low / high temperature operation Operator’s cabin with fan, heater, wiper and chair etc.
Oil return Standing platform
Continuous rotation system Overload protection
Power supply link system Electric hydraulic power unit
Long life surface treatment: anti-corrosion Winch
Structure is sand blasted and metalized Loading limited device
Double primer coat and two layers paint Cooling system for hydraulic oil
Special cylinder for marine environment Workman basket


Production Flow(Hydraulic Knuckle Boom Crane Installation Manufacturer)
Hydraulic Knuckle Boom Crane Installation Manufacturer Marine Ship Deck Crane

About us
Hydraulic Knuckle Boom Crane Installation Manufacturer Marine Ship Deck Crane

Contact us


Miss Wang ---Foregin trademan
Hp: 0086-17521634863
Email: cindy@haoyogroup.com
