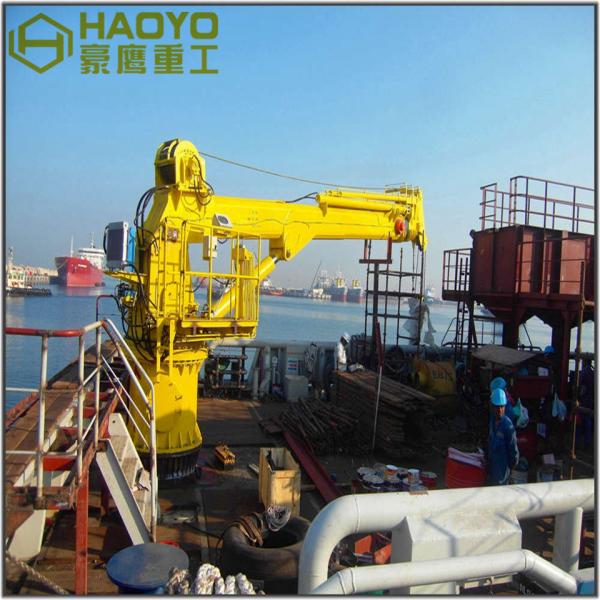

Hydraulic Telescopic Boom Cargo Hose Handling Crane Marine Ship Deck Crane
Hydraulic Telescopic Boom Cargo Hose Handling Crane Marine Ship Deck Crane
Specifications
Brand Name :
HAOYO
Model Number :
HAOYO
Certification :
BV,CCS,NK,ABS,DNV,LR
Place of Origin :
China
MOQ :
1 unit
Price :
20000-30000USD/Set
Payment Terms :
T/T,L/C
Supply Ability :
300 UNITS
Delivery Time :
90days
Packaging Details :
NUDE
Color :
as required
Use Situation :
New
Operation formal :
Ground operation
Shipment Packaging :
According to The Export Standards
Trademark :
HAOYO
Origin :
Shanghai
Sling Type :
Wire Rope
Description

Hydraulic Telescopic Boom Cargo Hose Handling Crane Marine Ship Deck Crane

All of the cranes in the Telescopic Boom line offer several key features that make

them powerful solutions for the marine work environment. The most notable of these

features include:Extended boom reach with the dexterity for accurate, safe, and

efficient material handling.

1.Telescopic Marine Crane is composed of base, arm frame, tower, hydraulic winch,

telescopic oil cylinder, Amplitude oil cylinder, hydraulic rotary mechanism, operating

platform, hydraulic transmission parts, electric controlling part and etc.

2.The base is cylinder structure, can be welded on the deck, also can connect with

deck by high strength bolts. Connection mode must to be marked.

3.Arm frame and tower are box structure. Hydraulic winch controls the goods rising

and drop. Telescopic oil cylinder controls level the telescopic crane boom. Amplitude

oil cylinder controls goods correct hook-on point and landing point.

4. Swing mechanism for controlling crane turning right or left turn. Operation platform

is used for operation and maintenance debugging. Hydraulic transmission parts for

the system to provide pressure oil; The electrical control system mainly control motor

stops, operation.

Hydraulic Telescopic Boom Cargo Hose Handling Crane Marine Ship Deck Crane

Drawing(Hydraulic Telescopic Boom Cargo Hose Handling Crane )

Hydraulic Telescopic Boom Cargo Hose Handling Crane Marine Ship Deck Crane

Technical Parameters(Hydraulic Telescopic Boom Cargo Hose Handling Crane)

MODEL Safety Load
(KN)		 Max Outreach
(m)		 Lifting Speed (m/min) Slewing Speed
(r/min)		 Luffing Time
(s)		 Hoisting Height
(m)		 Slewing Angle(°)

Permissible Heeling(transverse

/longitudinal)(°)

Power

(kW)
10 10 6~20 15 1 60 30 360° 2° /5° 7.5
15 15 8~22 15 1 60 30 360° 2° /5° 11
20 20 5~24 15 1 60 30 360° 2° /5° 15
30 30 8~25 15 0.9 70 30 360° 2° /5° 22
50 50 12~25 15 0.75 80 30 360° 2° /5° 37
80 80 12~25 15 0.75 100 40 360° 2° /5° 55
100 100 12~25 15 0.75 110 40 360° 2° /5° 75
150 150 12~28 15 0.6 110 30 360° 2° /5° 90
200 200 16~30 15 0.6 120 35 270° 2° /5° 75*2
250 250 20~35 15 0.5 130 40 270° 2° /5° 90*2
300 300 35 15 0.4 140 40 270° 2° /5° 90*2
350 350 20~40 15 0.5 150 45 360° 2° /5° 110*2
400 400 20~40 15 0.5 150 45 360° 2° /5° 140*2
450 450 25~40 15 0.45 160 50 360° 2° /5° 140*2
500 500 20~40 15 0.45 170 50 360° 2° /5° 165*2

Production Flow(Hydraulic Telescopic Boom Cargo Hose Handling Crane)

Hydraulic Telescopic Boom Cargo Hose Handling Crane Marine Ship Deck Crane

Certifications(Hydraulic Telescopic Boom Cargo Hose Handling Crane)

Hydraulic Telescopic Boom Cargo Hose Handling Crane Marine Ship Deck Crane

Packaging & Delivery

Hydraulic Telescopic Boom Cargo Hose Handling Crane Marine Ship Deck Crane

Shipping details

♦ check all the items and packaged well before loading.

♦ You can check loading or send picture to you.

♦ After shipping make documents for you,like B/L,packing list,voice according

to your requirements.

Company view

Hydraulic Telescopic Boom Cargo Hose Handling Crane Marine Ship Deck Crane


Contact us

Miss Wang ---Foregin trademan

Hp: 0086-17521634863

Email: cindy@haoyogroup.com

OFFICE ADD: NO. 500, JIANYUNRD,PUDONG,SHANGHAI

FACTORY ADD: INDUSTRIAL PARK, CHANGSHU, JIANGSU

Web: www.haoyogroup.com
