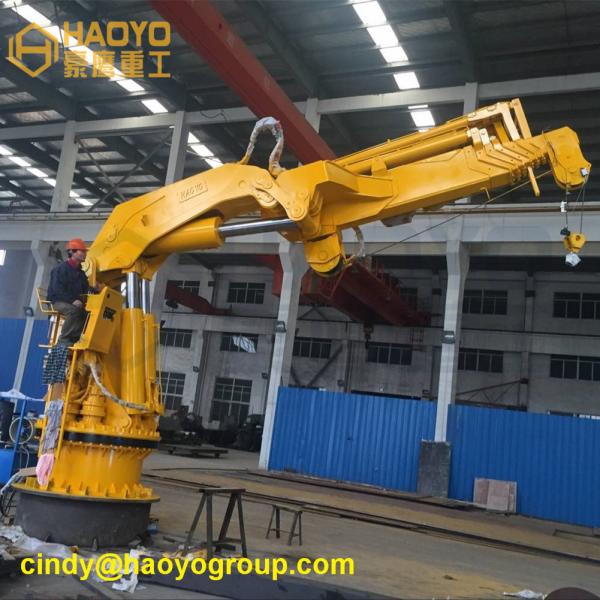

Telescopic Hydraulic Knuckle Boom Marine Boat Crane for sale Marine Ship Deck Crane
Telescopic Hydraulic Knuckle Boom Marine Boat Crane for sale Marine Ship Deck Crane
Specifications
Brand Name :
HAOYO
Model Number :
HY
Certification :
BV,CCS,DNV,ABS
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T,L/C
Supply Ability :
300 UNITS
Delivery Time :
90 DAYS
Packaging Details :
NUDE
Price :
30000-50000USD/Set
Use Situation :
New
Operation form :
Ground operation
Shipment Packing :
According to The Export Standards
Specification :
According To The Export Standards
Trademark :
HAOYO
Origin :
Shanghai
Sling Type :
Wire Rope
Power Source :
Electric Motor
Installation :
Overall Rapid Disassembly
Type of crane :
foldable boom marine crane
Application :
Service Crane, Provision and Cargo Lifting Crane, Service Crane, Fishing Crane
Features :
Flexible and Strong, Saving Space,Multi-function
Description

Telescopic Hydraulic Knuckle Boom Marine Boat Crane for sale

Telescopic knuckle folding boom marine ship deck crane are suitable when the deck

space is limited.Telescoping Boom hydraulic marine is designed for general cargo

handling and service onboard ships and offshore units.The crane is most suitable

when the amount of space on deck is ample. These cranes offer a cost-effective

alternative to fixed booms. The crane is fixed where the lift is mostly done by the

winch. Cannot be hydraulically extended and retracted and have no knuckle function.

Telescopic Hydraulic Knuckle Boom Marine Boat Crane for sale Marine Ship Deck Crane

Drawing(Telescopic Hydraulic Knuckle Boom Marine Boat Crane for sale )

Telescopic Hydraulic Knuckle Boom Marine Boat Crane for sale Marine Ship Deck Crane

Technical Patameters

MODEL Outreach
(m)		 Safety Load(kN) Lifting Moment(kNm) Total Moment (r/min) Pedestal Diameter (mm) Dead Weight (t)
ECK 150 8.0-12.0 2.1-1.1 132-168 241 885 2.8-3.2
ECK 250 10.0-14.0 2.9-1.8 242-290 381 885 3.7-4.3
ECK 350 12.0-16.0 3.6-2.3 370-430 603 1095 5.3-6.3
ECK 550 14.0-18.0 4.7-3.2 573-660 980 1325 7.8-9.2
ECK 750 14.0-18.0 6.1-4.2 749-855 1375 1490 11.5-12.8
ECK1150 16.0-20.0 7.3-5.2 1040-1160 1765 1490 12.7-14.0
ECK1450 16.0-20.0 9.0-6.4 1268-1440 2555 1770 19.2-23.0
ECK 220 27.5 30,0 2200 4000 1800 25.0
ECK 300 30.0 30.0 3000 5000 2065 27.5
ECK 400 32.0 30.0 4000 6300 2050 30.0
ECK 500 35.0 35.0 5000 8000 2240 35.0
ECK 800 37.0 50.0 8000 11500 2271 55.0
ECK1000 40.0 60.0 10000 14400 2536 70.0
ECK1200 43.0 80.0 12000 18000 2550 100.0
ECK1600 45.0 100.0 16000 34000 3166 150.0
ECK2000 50.0 125.0 20000 44000 3987 200.0
ECK2500 50.0 150.0 25000 50000 4000 220.0
ECK3000 50.0 200.0 30000 60000 4500 275.0
