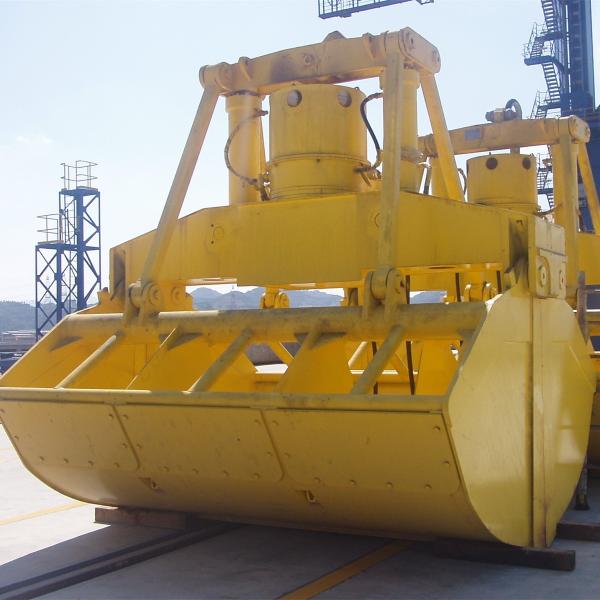

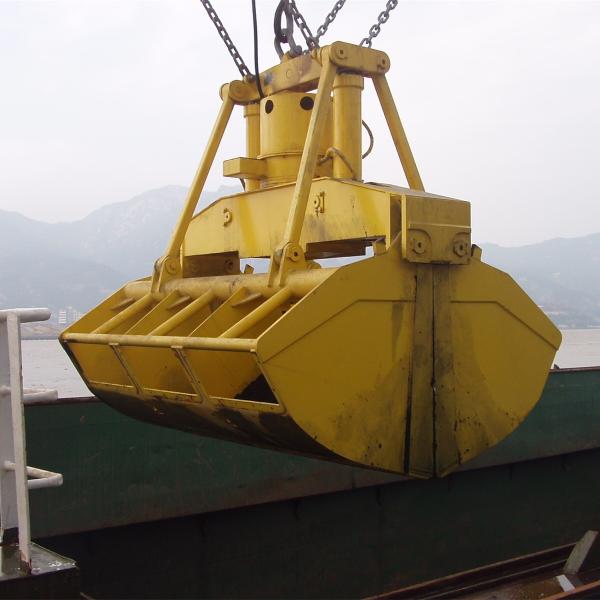

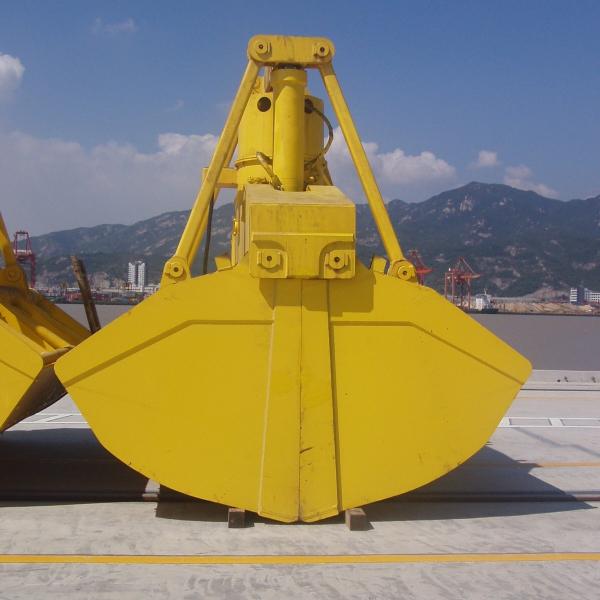

10cbm Leakage Proof Motor Electric Hydraulic Clamshell grab Bucket
10cbm Leakage Proof Motor Electric Hydraulic Clamshell grab Bucket
10cbm Leakage Proof Motor Electric Hydraulic Clamshell grab Bucket
10cbm Leakage Proof Motor Electric Hydraulic Clamshell grab Bucket
10cbm Leakage Proof Motor Electric Hydraulic Clamshell grab Bucket
10cbm Leakage Proof Motor Electric Hydraulic Clamshell grab Bucket
Specifications
Brand Name :
HAOYO(EUMESS)
Model Number :
EHD
Certification :
BV,CCS
Place of Origin :
China
MOQ :
1 UNIT
Price :
15000~50000 USD
Payment Terms :
T/T
Supply Ability :
300 UNITS
Delivery Time :
50 DAYS
Packaging Details :
NUDE
Material :
Q345
Volume :
10m3
power :
45kw
color :
as required
Description

10cbm Leakage Proof Motor Electric Hydraulic Clamshell grab Bucket10cbm Leakage Proof Motor Electric Hydraulic Clamshell grab Bucket10cbm Leakage Proof Motor Electric Hydraulic Clamshell grab Bucket

10cbm Leakage Proof Motor Electric Hydraulic Clamshell grab Bucket

Technical Parameter of Leakage Proof Single Rope Motor Electric Hydraulic Clamshell grab Buckets

Crane Capacity (t)

Volume

(m³)

Cargo Density

(t/m³)

Cargo Weight (t)

Grab Weight (t)

Grab Model
(EH)

Mark

10

3-6m³

2.0-1.0

6

4

EH10-6-4

12

3-6m³

2.5-1.25

7.5

4.5

EH12-6-4.5

16

4-8m³

2.5-1.25

10

6

EH16-8-6

20

5-10m³

2.55-1.25

12.5

7.5

EH20-10-7.5

24

6-12m³

2.55-1.28

15.3

8.7

EH24-12-8.7

HOT

25

6-12m³

2.67-1.33

16

9

EH25-12-9

HOT

28

6-15m³

3.0-1.2

18

10

EH28-15-10

HOT

36

8-20m³

2.88-1.15

23

13

EH36-20-13

HOT

40

10-30m³

2.52-0.84

25.2

14.8

EH36-20-13

50

12-30m³

2.52-0.84

32

18

EH50-30-18.5

You can choose the grab type according PARAMETERS.

If there is no your grab type in the parameters, we can design the suitable type according your information.

Introduction of Leakage Proof Single Rope Motor Electric Hydraulic Clamshell grab Bucket

1.Electric Hydraulic clamshell grab is in High Handling effect, especially for high viscosity

materials such as nickel mine;

2. Electric Hydraulic clamshell grab is in High efficiency, equal work time can handle 20%

material more than remote control grab;

3. Electric Hydraulic clamshell grab is in High safety performance, falls on any point of the

materials, won’t effect effects the equipment;

4. The wire drum protects electric Hydraulic clamshell grab is in from side to side when

working, especially when cleaning the vessel;

Advantages of Leakage Proof Single Rope Motor Electric Hydraulic Clamshell grab Bucket

  • High Handling effect
  • High safety performance
  • Enhanced ease and convenience of operation.
  • Shockless,noiseless and smooth operation.
  • BV,CCS certificate supply
  • Import key parts
  • Stable power supply

10cbm Leakage Proof Motor Electric Hydraulic Clamshell grab Bucket

Certificate for Leakage Proof Single Rope Motor Electric Hydraulic Clamshell grab Bucket

10cbm Leakage Proof Motor Electric Hydraulic Clamshell grab Bucket

If any of the following information can be provided in your inquiry, it is very preciated :

1.The kind of grab you need ( Remote Control Grabs, Electric Hydraulic Grabs,clamshell

grab,orange peel grab, single rope grab,two rope grab or four rope grab)

2. Your crane lifting capacity (SWL)?

3. The material the grab unload (name or density)?
4. The volume of the grab and the material the grab unload?

We can provide exact drawing for you with above information you give to us.
