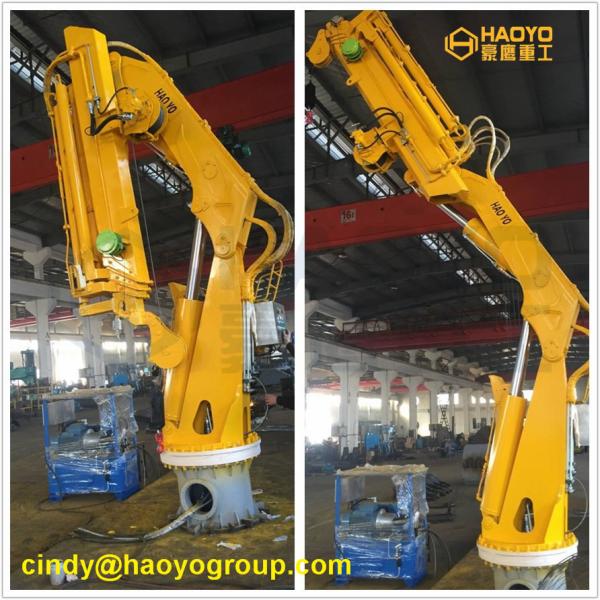

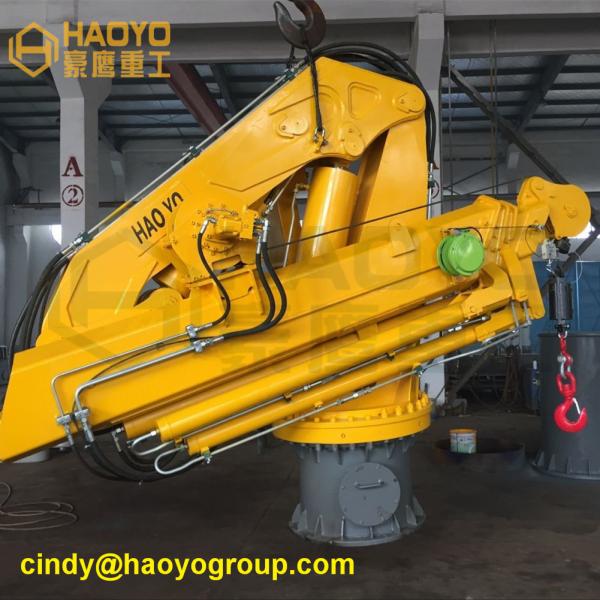

HAOYO Hot Sale 1ton Folding Small Boat Marine Crane with Hydraulic Winch
HAOYO Hot Sale 1ton Folding Small Boat Marine Crane with Hydraulic Winch
Specifications
Brand Name :
HAOYO
Model Number :
RC25
Certification :
BV,CCS,CE,DNV,LR,ABS
Place of Origin :
China
MOQ :
1 unit
Price :
30000-50000USD/set
Payment Terms :
T/T,L/C
Supply Ability :
300 UNITS
Delivery Time :
90 DAYS
Packaging Details :
NUDE
Color :
as required
Use Situation :
New
Operation formal :
Ground operation
Shipment Packaging :
According to The Export Standards
Trademark :
HAOYO
Origin :
Shanghai
Sling Type :
Wire Rope
Type of crane :
foldable boom marine crane
Application :
Service Crane, Provision and Cargo Lifting Crane, Service Crane, Fishing Crane
Features :
Flexible and Strong, Saving Space,Multi-function
Description

HAOYO Hot Sale 1ton Folding Small Boat Marine Crane with Hydraulic Winch

The foldable boom cranes are suitable when the deck space is limited.Their design

combines maximum performances with flexible working operations. These cranes are

handy and allow comfortable working operations in all operative conditions. The full

foldable boom with structure can load and unload in strongly and flexibly.The foldable

boom cranes have diverse applications including service cranes, cargo handling cranes,

fishing and fishing cranes.

As a direct manufacturer ,we are specialize in all types crane such as fixed boom crane

telescopic boom crane, knuckle boom crane, folding arm crane, and other marine and

port machine. We can give you a low price and our experienced engineers can meet

customer different requirement and work condition.For after sale service we will give

you 18 months guarantee period with top technical support, engineers can service

overseas.

HAOYO Hot Sale 1ton Folding Small Boat Marine Crane with Hydraulic Winch

Drawing

HAOYO Hot Sale 1ton Folding Small Boat Marine Crane with Hydraulic Winch
Technical Parameters

MODEL Outreach
(m)		 Safety Load(kN) Lifting Moment(kNm) Total Moment (r/min) Pedestal Diameter (mm) Dead Weight (t)
ECK 150 8.0-12.0 2.1-1.1 132-168 241 885 2.8-3.2
ECK 250 10.0-14.0 2.9-1.8 242-290 381 885 3.7-4.3
ECK 350 12.0-16.0 3.6-2.3 370-430 603 1095 5.3-6.3
ECK 550 14.0-18.0 4.7-3.2 573-660 980 1325 7.8-9.2
ECK 750 14.0-18.0 6.1-4.2 749-855 1375 1490 11.5-12.8
ECK1150 16.0-20.0 7.3-5.2 1040-1160 1765 1490 12.7-14.0
ECK1450 16.0-20.0 9.0-6.4 1268-1440 2555 1770 19.2-23.0
ECK 220 27.5 30,0 2200 4000 1800 25.0
ECK 300 30.0 30.0 3000 5000 2065 27.5
ECK 400 32.0 30.0 4000 6300 2050 30.0
ECK 500 35.0 35.0 5000 8000 2240 35.0
ECK 800 37.0 50.0 8000 11500 2271 55.0
ECK1000 40.0 60.0 10000 14400 2536 70.0
ECK1200 43.0 80.0 12000 18000 2550 100.0
ECK1600 45.0 100.0 16000 34000 3166 150.0
ECK2000 50.0 125.0 20000 44000 3987 200.0
ECK2500 50.0 150.0 25000 50000 4000 220.0
ECK3000 50.0 200.0 30000 60000 4500 275.0
Component
Brand
Origin
Multitandem valve
Nord
Danfoss
HBS
Sweden
Danmark
Italy
Oil Pump
Leduc
PZB
OMFB
France
Italy
Italy
Balance valve
HBS
VALLA
Italy
Italy
High pressure hose
Eaton
Manuli
USA
Italy
Sealing
Trelleborg
Germany
Electric motor
ABB
Siemens
China

Certifications
HAOYO Hot Sale 1ton Folding Small Boat Marine Crane with Hydraulic Winch

Packaging & Delivery
HAOYO Hot Sale 1ton Folding Small Boat Marine Crane with Hydraulic Winch
Shipping details

♦ check all the items and packaged well before loading.

♦ You can check loading or send picture to you.

♦ After shipping make documents for you,like B/L,packing list,voice according

to your requirements.

About HAOYO


HAOYO Hot Sale 1ton Folding Small Boat Marine Crane with Hydraulic Winch

1.Professional:Sales & Design department is to create the right type for the customer's
unique requirement. Work staffs in workshop are to ensure the strong structure and
good perform in every detail.

2.Price:We have our own factory,so we can control the cost & delivery time.

3.Service:HAOYO after sales service provides timely and efficient support,both to
our clients and partners.

Contact Us


Miss Cindy
Mb: 0086-17521634863
Email: cindy@haoyogroup.com


OFFICE ADD: NO. 500, JIANYUNRD,PUDONG,SHANGHAI
FACTORY ADD: INDUSTRIAL PARK, CHANGSHU, JIANGSU
Web:www.haoyogroup.com
