Specifications
Brand Name :
HAOYO
Model Number :
HAOYO
Certification :
BV,CCS,NK,ABS,LR,DNV
Place of Origin :
China
MOQ :
1 unit
Price :
20000-30000USD/Set
Payment Terms :
T/T,L/C
Supply Ability :
300 UNITS
Delivery Time :
90days
Packaging Details :
NUDE
Color :
as required
Use Situation :
New
Operation formal :
Ground operation
Shipment Packaging :
According to The Export Standards
Trademark :
HAOYO
Origin :
Shanghai
Sling Type :
Wire Rope
Features :
low weight and less complex design, simple maintenance
Application :
Deck crane,ship to ship crane,pipe handling crane, Provision cranes,Service cranes
Description

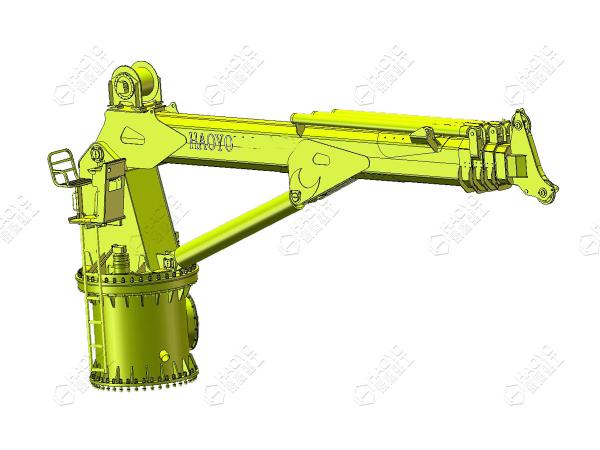

Telescopic Boom Ship to Shore Marine Deck Crane Cost for sale

Telescopic boom cranes can be hydraulic extended and retracted without a knuckle

function.These cranes should always be executed with a hoisting winch installation.

1.Telescopic Marine Crane is composed of base, arm frame, tower, hydraulic winch,

telescopic oil cylinder, Amplitude oil cylinder, hydraulic rotary mechanism, operating

platform, hydraulic transmission parts, electric controlling part and etc.

2.The base is cylinder structure, can be welded on the deck, also can connect with deck

by high strength bolts. Connection mode must to be marked.

3.Arm frame and tower are box structure. Hydraulic winch controls the goods rising and

drop. Telescopic oil cylinder controls level the telescopic crane boom. Amplitude oil cylinder

controls goods correct hook-on point and landing point.

4. Swing mechanism for controlling crane turning right or left turn. Operation platform is

used for operation and maintenance debugging. Hydraulic transmission parts for the

system to provide pressure oil; The electrical control system mainly control motor stops,

operation.

Telescopic Boom Ship to Shore Marine Deck Crane Cost for sale Marine Ship Deck Crane

Drawing(Telescopic Boom Ship to Shore Marine Deck Crane Cost for sale)

Telescopic Boom Ship to Shore Marine Deck Crane Cost for sale Marine Ship Deck Crane

Technical Parameters

MODEL Safety Load
(KN)		 Max Outreach
(m)

Lifting Speed

(m/min)

 Slewing Speed
(r/min)		 Luffing Time
(s)		 Hoisting Height
(m)		 Slewing Angle(°) Permissible Heeling(transverse/
longitudinal)(°)

Power

(kW)
10 10 6~20 15 1 60 30 360° 2° /5° 7.5
15 15 8~22 15 1 60 30 360° 2° /5° 11
20 20 5~24 15 1 60 30 360° 2° /5° 15
30 30 8~25 15 0.9 70 30 360° 2° /5° 22
50 50 12~25 15 0.75 80 30 360° 2° /5° 37
80 80 12~25 15 0.75 100 40 360° 2° /5° 55
100 100 12~25 15 0.75 110 40 360° 2° /5° 75
150 150 12~28 15 0.6 110 30 360° 2° /5° 90
200 200 16~30 15 0.6 120 35 270° 2° /5° 75*2
250 250 20~35 15 0.5 130 40 270° 2° /5° 90*2
300 300 35 15 0.4 140 40 270° 2° /5° 90*2
350 350 20~40 15 0.5 150 45 360° 2° /5° 110*2
400 400 20~40 15 0.5 150 45 360° 2° /5° 140*2
450 450 25~40 15 0.45 160 50 360° 2° /5° 140*2
500 500 20~40 15 0.45 170 50 360° 2° /5° 165*2

Processing Flow(Telescopic Boom Ship to Shore Marine Deck Crane Cost for sale)

Telescopic Boom Ship to Shore Marine Deck Crane Cost for sale Marine Ship Deck Crane

Certifications(Telescopic Boom Ship to Shore Marine Deck Crane Cost for sale)

Telescopic Boom Ship to Shore Marine Deck Crane Cost for sale Marine Ship Deck Crane

Packaging & Delivery

Telescopic Boom Ship to Shore Marine Deck Crane Cost for sale Marine Ship Deck Crane

Shipping details

♦ check all items and packaging before loading.

♦ can check the loaded or send pictures to you.

♦ shipping for you file, such as the bill of lading, packing list, according to your requirements.
