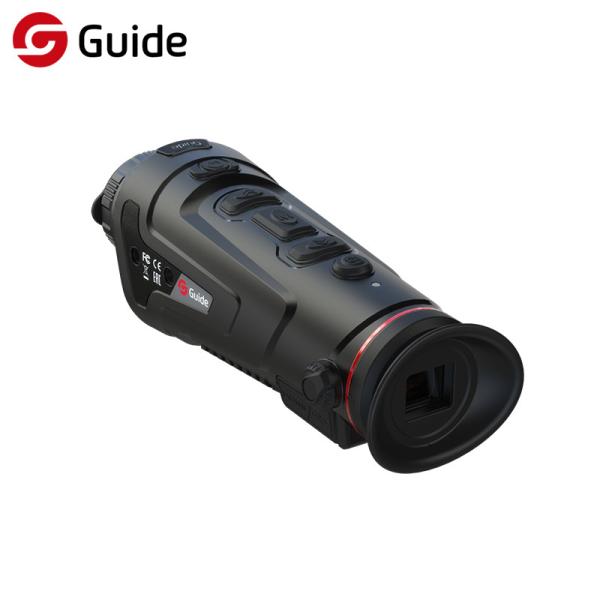

Guide TK Gen2 Kitalpha Series Handheld Thermal Imaging Monocular Hunting Scope Thermal Imaging Monocular Night Vision
Guide TK Gen2 Kitalpha Series Handheld Thermal Imaging Monocular Hunting Scope Thermal Imaging Monocular Night Vision
Guide TK Gen2 Kitalpha Series Handheld Thermal Imaging Monocular Hunting Scope Thermal Imaging Monocular Night Vision
Guide TK Gen2 Kitalpha Series Handheld Thermal Imaging Monocular Hunting Scope Thermal Imaging Monocular Night Vision
Guide TK Gen2 Kitalpha Series Handheld Thermal Imaging Monocular Hunting Scope Thermal Imaging Monocular Night Vision
Guide TK Gen2 Kitalpha Series Handheld Thermal Imaging Monocular Hunting Scope Thermal Imaging Monocular Night Vision
Guide TK Gen2 Kitalpha Series Handheld Thermal Imaging Monocular Hunting Scope Thermal Imaging Monocular Night Vision
Guide TK Gen2 Kitalpha Series Handheld Thermal Imaging Monocular Hunting Scope Thermal Imaging Monocular Night Vision
Guide TK Gen2 Kitalpha Series Handheld Thermal Imaging Monocular Hunting Scope Thermal Imaging Monocular Night Vision
Guide TK Gen2 Kitalpha Series Handheld Thermal Imaging Monocular Hunting Scope Thermal Imaging Monocular Night Vision
Guide TK Gen2 Kitalpha Series Handheld Thermal Imaging Monocular Hunting Scope Thermal Imaging Monocular Night Vision
Guide TK Gen2 Kitalpha Series Handheld Thermal Imaging Monocular Hunting Scope Thermal Imaging Monocular Night Vision
Specifications
Brand Name :
Guide
Model Number :
TK 421/431/451/611/621/631
Certification :
IP66/FCC/CE/Rohs/EAC/un38.3
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
7-10 Working Days
Packaging Details :
Standard Exporting Package
Kind :
Thermal Imaging Monocular
Encapsulation :
IP66
Detector Type :
400×300@17μm/640×480@12μm
Frame :
50Hz
NETD :
≤50mk @ F1 25℃
Spectral Range :
8～14μm
Description

Guide TK Gen2 Kitalpha Series Handheld Thermal Imaging Monocular Hunting Scope Thermal Imaging Monocular Night Vision

Description

Equipped with Guide's new self-developed infrared detector and the patented image processing technology, the TK Gen2 Kitalpha Series captures sharp imaging and is packed with powerful features like image and video recording, smooth zoom, pseudo-color adjustment, approximate ranging and PIP. Personalized image observation is supported in different scene modes. The built-in laser indicator and illuminator facilitate itself to be operated in harsh environment.

Features

Featuring the new self-developed infrared metal detector, TK Kitalpha Series comes with 400x300 and 640x480 thermal resolution. The 3DNR and PureIR adaptive filtering algorithm provides superior image quality and detailed vision in complex environments.

Model TK421 TK431 TK451 TK611 TK621 TK631
IR Resolution 400×300@17μm 640×480@12μm
NETD ≤50mk @ F1 25℃
Focal Length 25mm F1.1 35mm F1.2 50mm F1.2 19mm F1.0 25mm F1.0 35mm F1.0
Focus Manual focusing
FOV 15.4°×11.6° 11.1×8.3 7.8×5.8 22.9×17.2 17.5×13.1 12.5×9.4
Output Frame Frequency 50Hz
Optical Zoom 1.7x 2.3x 3.3x 1.1x 1.5x 2.0x
Digital Zoom 1x—4x 1x—8x
Battery Operating Time Battery continuous working time ≥ 5 hours @ 25 ℃ (only observe the state) Battery continuous working time ≥ 4.5 hours @ 25 ℃ (only observe the state)
USB Type C (USB 2.0 standard) interface, chargeable and data access
Video Interface Micro HDMI
WIFI Transmission of real-time video via WIFI for remote control, 2.4G frequency band, distance up to 15m
Internal Storage 16GB
Working temperature -10℃~50℃
Certifications IP66/FCC/CE/Rohs/EAC/un38.3
Weight ≤470g ≤485g ≤535g ≤490g ≤560g
Size 192*65*71mm 214*65*71mm 192*65*71mm 214*65*71mm
