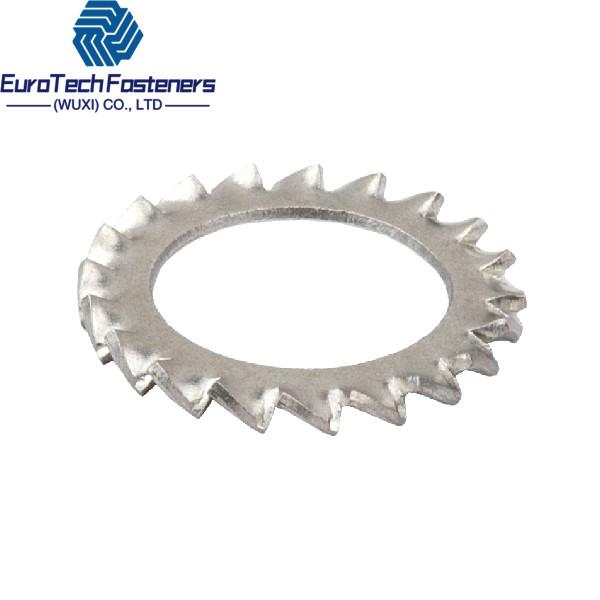

Star Countersunk Internal External Tooth Lock Washer DIN 6797 A Spring Steel Zinc Plated
Star Countersunk Internal External Tooth Lock Washer DIN 6797 A Spring Steel Zinc Plated
Star Countersunk Internal External Tooth Lock Washer DIN 6797 A Spring Steel Zinc Plated
Star Countersunk Internal External Tooth Lock Washer DIN 6797 A Spring Steel Zinc Plated
Specifications
Name :
Star Countersunk Internal External Tooth Lock Washer DIN 6797 A Spring Steel Zinc Plated
Keyword :
External Tooth Lock Washer
Typical Size :
10mm Wave Washer 12mm Wave Washer 14mm Wave Washer 15mm Wave Washer 16mm Wave Washer 17mm Wave Washer 19mm Wave Washer 24mm Wave Washer 30mm Wave Washer 6mm Wave Washer 8mm Wave Washer Spring Wave Washer 10mm
Surface treatment :
Zn- Plated, Ni-plated, Passivated, Tin-plated
Material :
Stainless Steel, Carbon Steel ,Paino Wire or as required
Finished :
Electroplating , Heating ,Clean ,Rust-proof or as required
Size :
M2~M60
Color :
White,black,silver,gold or as your requirement
Model Number :
Din
Place of Origin :
Jiangsu, China
Brand Name :
Ouji Fasteners
Certification :
ISO, GB
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Wooden case packing
Delivery Time :
3-5 working days
Payment Terms :
L/C, T/T
Supply Ability :
3 million pieces per week
Description

Star Countersunk Internal External Tooth Lock Washer DIN 6797 A Spring Steel Zinc Plated

Description

Our Locking Washers are made from metal, with either a stainless steel or zinc plated finish. These External Tooth Lock Washers have been developed for locking screws, bolts and nuts in place, and offer ideal prevention for the loosening of PCB spacers caused by vibrations.The Tooth Lock Washer, also known as an Electrical Contact Washer, has tooth-like serrations on the external diameter that help the toothed washer prevent bolted joints from loosening, through the use of friction.Our stainless steel toothed washers offer good corrosion and wear resistance. The zinc plated external tooth washer option, is ideal for applications where a high mechanical strength is needed. The lower material cost makes it an alternative to brass, when conductivity is not a critical issue. Zinc plating provides a professional finish and is RoHS compliant.

This external tooth lock washer is ideal for added security in fixings and fastenings. They function in the same way as a standard washer, by distributing the load of a bolt against a surface material, but have a locking action that prevents turning of the fastener, meaning there is less chance of the fixing loosening over time or under repeated stress. As such they are commonly used wherever vibration is a factor.

Specification

Material
1.StainlessSteel:SS201,SS303,SS304,SS316,SS410,SS420
2.Steel:C45(K1045), C46(K1046),C20
3.Carbon Steel: 1010,1035,1045
4.Aluminum or Aluminum Alloy:Al6061,Al6063,Al7075,etc
5.Brass:H59,H62,Copper,Bronze
Grade
SAE J429 Gr.2, 5,8; ASTM A307Gr.A,A193 B7,B8,B8M,A194 2H, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9 and etc.
Finish
Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G and etc.
Thread
UNC,UNF,UEF,UN,UNS
Standard
ISO, DIN, ANSI, JIS, BS and Non-standard
Sample Service
Samples are all in free.
Certificate
ISO9001,CE, SGS, BV
Advantage
1. Competitive price; 2. OEM service available
Packing
Bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand
Payment terms
FOB, CIF, CFR, L/C, or others.
Delivery method
by sea, by air or by express service
Lead Time
7-15 work days after order confirmed
Application
Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile: Home Decorating and etc.
Notes
Special specifications and marks can be made according to customers requirements;

Size M2 M2.5 M3 M3.5 M4 M5 M6 M8
Diameter (ID) 2.2MM 2.7MM 3.2MM 3.2MM 4.3MM 5.3MM 6.4MM 8.4MM
Diameter (OD) 4.5MM 5.5MM 6MM 6MM 8MM 10MM 11MM 15MM
Thickness (T) 0.3MM 0.4MM 0.4MM 0.5MM 0.5MM 0.6MM 0.7MM 0.8MM

Size M10 M12 M14 M16 M18 M20 M22 M24
Diameter (ID) 10.5MM 13MM 15MM 17MM 19MM 21MM 23MM 25MM
Diameter (OD) 18MM 20.5MM 24MM 26MM 30MM 33MM 36MM 38MM
Thickness (T) 0.9MM 1.0MM 1.0MM 1.2MM 1.4MM 1.4MM 1.5MM 1.5MM

Features and Benefits
Shakeproof Washers - External
Bright zinc plated for corrosion-resistance
Ideal for dynamic loads and vibration environments

Applications
External tooth lock washers, sometimes known as star washers, are a type of washer specifically designed to prevent loosening in larger fastener heads (as opposed to internal tooth types that are better for smaller fastener heads.) They are designed to fortify fastenings against dynamic loads, and as such are used in machinery or materials that are often subjected to vibration or continuous movement. They might typically be used in;

Domestic appliances such as washers and dryers
Industrial machinery
Automotive industries
