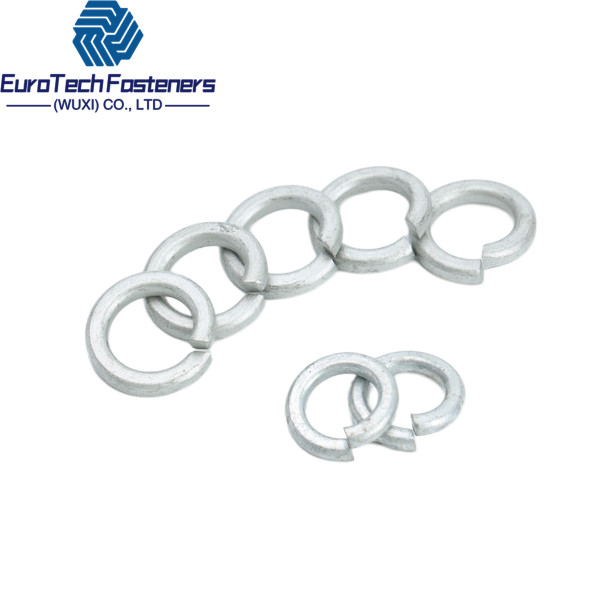

Dacromet Grower Spring Washer Din 127 Iso Spring Lock Washer Din 127 B A2 M8 M4 Metric Square Ends
Dacromet Grower Spring Washer Din 127 Iso Spring Lock Washer Din 127 B A2 M8 M4 Metric Square Ends
Dacromet Grower Spring Washer Din 127 Iso Spring Lock Washer Din 127 B A2 M8 M4 Metric Square Ends
Dacromet Grower Spring Washer Din 127 Iso Spring Lock Washer Din 127 B A2 M8 M4 Metric Square Ends
Specifications
Name :
Dacromet Spring Washer Din 127 Iso Spring Lock Washer Din 127 B A2 M8 M4 Metric Square Ends
Keyword :
Spring Lock Washer
Finish :
zinc plated,zinc blue,zinc yellow,black oxide,Dacromet,nickel,plish
Style :
Split, Flat
Material :
Brass, copper, Carbon steel, alloy steel ,Stainless steel
Model Number :
Din
Certificate :
ISO Certificate
Available Material :
Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr12
Place of Origin :
Jiangsu, China
Brand Name :
Ouji Fasteners
Certification :
ISO, GB
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Wooden case packing
Delivery Time :
3-5 working days
Payment Terms :
L/C, T/T
Supply Ability :
3 million pieces per week
Description

Dacromet Grower Spring Washer Din 127 Iso Spring Lock Washer Din 127 B A2 M8 M4 Metric Square Ends
Description

Metric DIN 127 Helical Spring Split Lock Washers are commonly used metric lock washers – It is a split metal ring that is bent into a helical shape. Split Lock Washers are a left hand helix and allow the nut to be
tightened in a right hand direction only. When compressed by tightening the nut, the washer bites into the
substrate and exerts a spring force between the bolt and the substrate creating frictional resistance to rotation. DIN 127 are available in two forms, type A and type B. Type DIN 127 A have bent up tang at
both ends of the washer. Type B simply have square/straight ends.
unique fastener products from stock in inch and metric standard in a variety of materials and finishes. The
following sizes of DIN 127 B Helical Spring Lock Washers are available for immediate shipping from stock:
Diameters ranging from M3 to M72 in steel and stainless steel 301, A4 and 316Ti.

Specification

Product name
Spring washer
Measurement system
Metric, Imperial (Inch)
Application
Heavy Industry, Retail Industry, General Industry, Automotive Industry
Place of Origin
China
Zhejiang
Material
Carbon steel; Stainless steel
Surface treatment
Plain.Black.Zinc Plate. HDG
Size
Customer's Demand
Packing
Cartons+plastic Bags
MOQ
1 Pcs
Color
white, Blue, etc

dimensions in mm
SizeFor threadd1 min.d1 max.d2 max.bsh min.h max.krWeight kg /1000pcs
3M33,13,46,21,3 ± 0,10,8 ± 0,11,92,10,150,20,11
3,5M3,53,63,96,71,3 ± 0,10,8 ± 0,11,92,20,150,20,12
4M44,14,47,61,5 ± 0,10,9 ± 0,12,12,50,150,20,18
5M55,15,49,21,8 ± 0,11,2 ± 0,12,73,20,150,20,36
6M66,46,511,82,5 ± 0,151,6 ± 0,13,64,20,20,30,83
7M77,17,512,82,5 ± 0,151,6 ± 0,13,64,20,20,30,93
8M88,18,514,83 ± 0,152 ± 0,14,65,40,30,31,6
10M1010,210,718,13,5 ± 0,22,2 ± 0,1555,90,30,52,53
12M1212,212,721,14 ± 0,22,5 ± 0,155,86,80,413,82
14M1414,214,724,14,5 ± 0,23 ± 0,156,880,416,01
16M1616,21727,45 ± 0,23,5 ± 0,27,89,20,418,91
18M1818,21929,45 ± 0,23,5 ± 0,27,89,20,419,73
20M2020,221,233,66 ± 0,24 ± 0,28,810,40,4115,2
22M2222,523,535,96 ± 0,24 ± 0,28,810,40,4116,5
24M2424,525,5407 ± 0,255 ± 0,211130,51,626,2
27M2727,528,5437 ± 0,255 ± 0,211130,51,628,7
30M3030,531,748,28 ± 0,256 ± 0,213,616,10,81,644,3
36M3636,537,758,210 ± 0,256 ± 0,213,616,10,81,667,3
39M3939,540,761,210 ± 0,256 ± 0,213,616,10,81,671,7
42M4242,543,766,212 ± 0,257 ± 0,2515,618,40,82111
45M4545,546,771,212 ± 0,257 ± 0,2515,618,40,82117
48M484950,67512 ± 0,257 ± 0,2515,618,412123
52M525354,68314 ± 0,258 ± 0,251821,212162
56M565758,58714 ± 0,258 ± 0,251821,212193
60M606162,59114 ± 0,258 ± 0,251821,212203
64M646566,59514 ± 0,258 ± 0,251821,212218
68M686970,59914 ± 0,258 ± 0,251821,212228
72M727374,510314 ± 0,258 ± 0,251821,212240
80M808182,511114 ± 0,258 ± 0,251821,212262
90M909192,512114 ± 0,258 ± 0,251821,212290
100M100101102,513114 ± 0,258 ± 0,251821,212318
