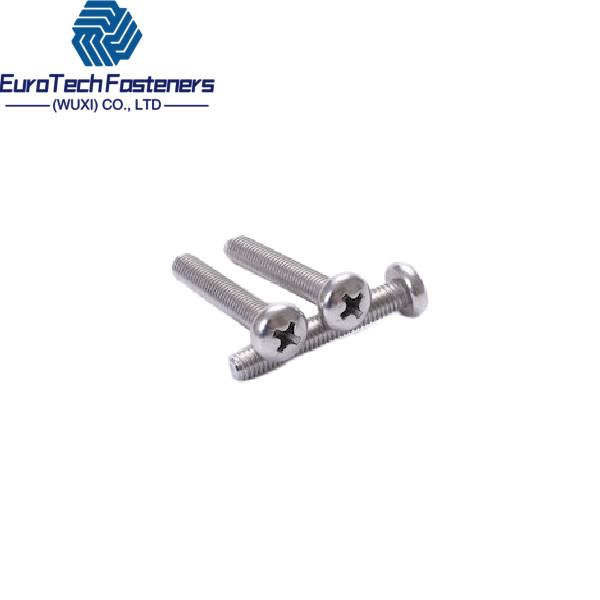

Cross Recessed Pan Head Machine Screw Zinc Galvanized Iso 7045 Din 7985 A2 M 2.5x20 A4
Cross Recessed Pan Head Machine Screw Zinc Galvanized Iso 7045 Din 7985 A2 M 2.5x20 A4
Cross Recessed Pan Head Machine Screw Zinc Galvanized Iso 7045 Din 7985 A2 M 2.5x20 A4
Cross Recessed Pan Head Machine Screw Zinc Galvanized Iso 7045 Din 7985 A2 M 2.5x20 A4
Specifications
Name :
Cross Recessed Pan Head Machine Screw Galvanized Iso 7045 Din 7985 A2 M 2.5x20 A4
Keyword :
cross recessed pan head screw
Standard :
Iso 7045
Surface treatment :
Plain, Zinc Electroplating,Hot Dip Galvanizing
Head Style :
Pan, Truss, Flat, Round, HEX, hex flanged head
Thread Direction :
Right Hand
Tolerance :
+/-0.05mm
Grade :
ST-CL4.8/8.8 SS-A2-50 A2-70 A4-70
Size :
M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10
Drawing Format :
Step,dwg,igs,pdf
Length :
2~40mm
Thread Size :
#12-24
Material :
stainless steel, steel, brass, aluminum, plastic
Place of Origin :
Jiangsu, China
Brand Name :
Ouji Fasteners
Certification :
ISO, GB
Model Number :
Din
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Wooden case packing
Delivery Time :
3-5 working days
Payment Terms :
L/C, T/T
Supply Ability :
3 million pieces per week
Description

Cross Recessed Pan Head Machine Screw Zinc Galvanized Iso 7045 Din 7985 A2 M 2.5x20 A4

Description

Metric DIN 7985 are cross recessed (Phillips) raised cheese head (Pan Head) machine screws. Machine screws are externally
threaded fasteners designed to be mated with threaded nuts or tapped holes in the parts they are designed to hold
together. DIN 7985 cross recessed (Phillips) raised cheese head (Pan Head) machine screws can be used for many
applications. The pan head is cylindrical head with a slightly rounded top surface and a flat bearing surface underneath. This
head style is ideal for most applications where a protruding head is acceptable These screws are available in steel as well as
stainless steel A2 and A4. Aspen Fasteners offers over 500.000 unique fastener products from stock in inch and metric
standard in a variety of materials and finishes. The following sizes of metric DIN 7985 cross recessed (Phillips) raised cheese

Specification

Standard DIN, BS, ANSI, JIS, GB and so on
Head Type Hexagon ,Hex anti-theft,Inner Torx,Inner Torx anti-theft,Cross groove,Triangle,square,spanner,Y-Type, S-Type and so on
Tail Type Concave Point,Flat Point,cone point,cone point,Dog Point,bead,knurled and so on
Raw Material 1, Carbon Steel: C1008, C1010, C1022,35K, 45K, 10B21 and so on
2, Aluminum6061/6063/7075 and so on
3, Stainless Steel: SS201, SS301, SS303, SS304, SS316, SS416, SS420 and so on
4, Brass:C36000, C37700, C38500, C27200, C28000 and so on
5, Nylon
Surface treatment Hot dip galvanized,Trivalent zinc,Yellow zinc plated,Black oxide,Chromeplate,Nickel plating,Copper plating, Silver plating,Anodic oxidation,Dacromet and so on
Shank Diameter M2mm-M18mm , #2---#14
Heat Treatment Heat treatment with the material, and heat treatment with the product or carbonation
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
Certifications ISO9001,ROHS,SGS
Sample Availability Samples are available.

EN ISO 7045 Weight (KG/M)

l/d M1.6 M2 M2.5 M3 M3.5 M4 M5 M6 M8 M10
3 0.099 0.178 0.338
4 0.111 0.196 0.366 0.544
5 0.123 0.215 0.396 0.588 0.891 1.3
6 0.134 0.233 0.426 0.632 0.951 1.38 2.32
8 0.157 0.27 0.486 0.72 1.07 1.53 2.57 4.37
10 0.18 0.307 0.546 0.808 1.19 1.69 2.81 4.72 9.96
12 0.203 0.344 0.606 0.896 1.31 1.84 3.06 5.07 10.6 19.8
14 0.226 0.381 0.666 0.984 1.43 2 3.31 5.42 11.2 20.8
16 0.245 0.418 0.726 1.07 1.55 2.15 3.58 5.78 11.9 21.8
20 0.492 0.846 1.25 1.79 2.46 4.05 6.48 13.2 23.8
25 0.996 1.47 2.09 2.85 4.67 7.36 14.8 26.3
30 1.69 2.39 3.23 5.29 8.24 16.4 28.8
35 2.68 3.62 5.91 9.12 18 31.3
40 4.01 6.52 10 19.6 33.9
45 7.14 10.9 21.2 36.4
50 11.8 22.8 38.9
55 12.6 24.4 41.4
60 13.5 26 43.9

Metric Thread - A4 Stainless Steel

Machine screws are fully threaded screws that are specifically designed to be used in pre-tapped holes or used with conforming nuts and washers in through holes. Machine screws are available in an array of configurations, materials, driver head types and sizes.
As their name implies, machine screws are used to fasten various components together in appliances, tools, machines, electronic devices, vehicles amongst a whole host of other objects. Machine screws are similar to a bolt but have a socket in the head which allows it to be turned with a screwdriver.

Are they easy to assemble?

Our pan head machine screws have been designed to give the user an easy assembling experience.

When are they used?

The pan head with cross recess screws are an excellent solution when you need to affix varied parts and components of machines together.

Features & Benefits

• Good corrosion resistance
• Recyclable
• Non-magnetic
Pozidriv, sometimes shortened to Pozi, stands for “positive drive”. This head type has a cross recess in the centre with four small indentations around it creating 8 points of contact. This design provides improved engagement and contact with the screwdriver and prevents ejection force when tightening or loosening the machine screw.

Typical size

din 7985h
din7985h
din 7985a
din 7985 a
din 7985 a2
din 7985 a4
din 7985 iso 7045
din 7985 m2
din 7985 m2 5
din 7985 m3
din 7985 m3x6
din 7985 m4
din 7985 m5
din 7985 m6
din 7985 screw
din 7985t
din 7985z
iso 7045 din 7985
screw din 7985
din 7985 a2-70
