J1772 22KW Wall Mounted Smart Car Charging Cable Wifi Connect 32A 3 Phase Ev Charging Cable Type 2 To Type 2
J1772 22KW Wall Mounted Smart Car Charging Cable Wifi Connect 32A 3 Phase Ev Charging Cable Type 2 To Type 2
Specifications
Brand Name :
TOPSUN
Model Number :
CBEN-ev16-P
Certification :
TUV,CE,RoHS
Place of Origin :
China
MOQ :
10 sets
Delivery Time :
5~10 days
Packaging Details :
carton
Material :
PC/Silicon Rubber/Themo Plastic
Pin :
Copper with silver plated
Working Voltage :
110V~450V
Color :
White, Black or other
Output Power :
22KW
Payment :
RFID Card; Energy Meter,APP
Display :
4.3' Color touch screen
Enclosure :
Plastic
Description

Wall Mounted EV Charging Station 22KW 32A 3 Phase Wifi Type 1 2 EV Charger

It is easy to install, stable in performance, and provides complete protection function. The LCD display can show the charging status, user friendly. It supports 4G/Ethernet/WiFi communication with party system for remote monitoring/maintain/upgrade. The charger can optionally equip with a column support installed outdoors.
Simple installation: no complicated installation process is required, it can be used when power is connected.

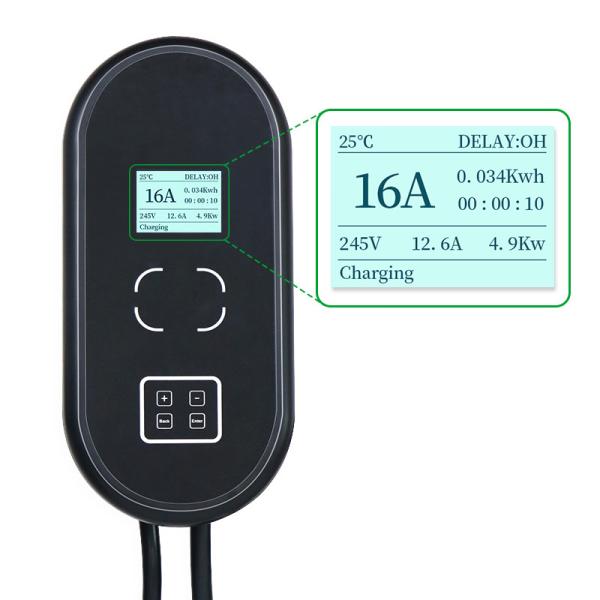

4.3 Inch LCD Display: LCD screen can display the real-time charging status, including time, voltage, current, power and temperature.
IP55, Strong and Durable: Support outdoor harsh environment,waterproof and dust-proof. Rugged shell which could resist the rolling and crash of the car.
Easy to install and use: The installation process is simple, payment is convenient and fast, supports IC card
swiping. Fully compatible with all EV in the market.
Specifications Product Name Portable EV Charger
Plug for EV IEC 62196 Type 2
Plug for Wall Socket Blue CEE plug, red CEE plug, etc.
Electric Parameters Rated Voltage 110V~450V AC
Rated Current 10-32A VC,1 / 3 phase
Frequency 50/60Hz
Insulation Resistance ＞1000MΩ
Terminal Temperature Rise ＜50K
Withstand Voltage 2000V
Contact Resistance 0.5mΩ
Mechanical Performance Mechanical Life ＞10000 times no-load plug in/out.
Coupled Insertion Force 45N～100N
Withstandable Impact Dropping from a 1m-height and running-over by a 2T vehicle.
Material Enclosure Thermoplastic, flame retardant grade UL94 V-0
Cable Material TPE
Terminals/Pins Copper alloy, silver plating
Safety and Warranty Ingress Protection IP54
Certification CE/ TUV/ UL
Certification Standard IEC 62196-1-2016/ IEC 62196-2-2016
Charging Protection Over current, residual current, short circuit, surge, over/under
voltage, over/under frequency, and over/under temperature
protection;
Warranty 2 years
Environment Work Temperature -30℃~+50℃
Work Humidity 5%~95%
Work Altitude <2000m

Each charger will be fully inspection to ensure product performance in good condition:

Withstand voltage insulation test - start high voltage machine test
Charging preparation -- measuring input voltage
Charging connection confirmation - measuring resistance
Ready to charge - measure current
Ready to charge - measuring frequency
Start up and charging stage - measure the output voltage
Start up and charging phase - measuring output current
Normal charge end test - measure output voltage
CP Disconnection Test: measure the output voltage after resuming charging
CP ground test - measure output voltage
Input overvoltage protection - measure output voltage
Input overvoltage protection - automatic recovery function, measuring output voltage
Input undervoltage protection - measure output voltage
Input undervoltage protection - automatic recovery function, measuring output voltage
Leakage protection - measuring output voltage
Overcurrent protection - measuring output current
Over current protection - automatic recovery function, measuring output current
