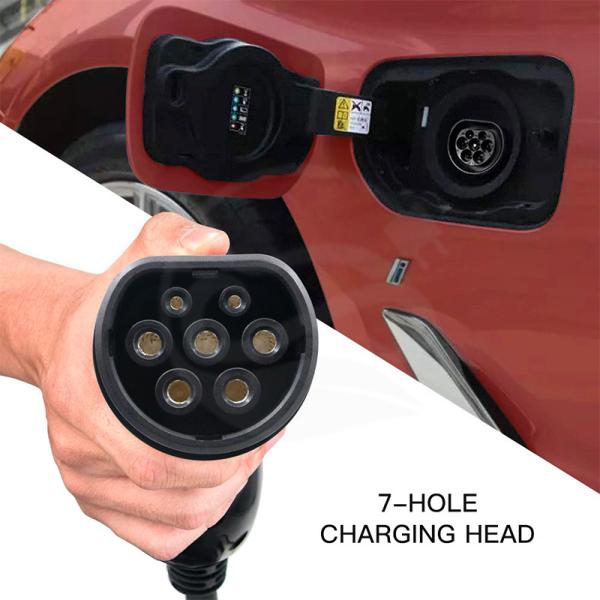

5 Meter 16A EV Charger Cable 220VAC 22kw Type 2 Charging Mode 3
5 Meter 16A EV Charger Cable 220VAC 22kw Type 2 Charging Mode 3
Specifications
Brand Name :
TOPSUN
Model Number :
SAE J1772
Certification :
TUV, CE, UL
MOQ :
10 sets
Delivery Time :
5~10 days
Packaging Details :
Carton
Name :
Type 1 Electric Car Charger Cable
Rated Voltage :
220V~250V
Rated Current :
16A 1 phase
IP :
IP54
Conductor :
Bare Copper
Working Life: :
more than 10000 times
Warrenty :
3 years
Description
5 Meters Long Cable 16A Type 1 SAE J1772 EV Electric Car Charger EV Charging Cable
Applications
Chevrolet Volt, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Mia, Mia Electric Van,Mitsubishi-I Miev, Mitsubishi Outlander Phev, Nissan NV200 SE Van, Nissan Leaf, Peugeot Ion, Renault Fluence,Renault Kangoo, Smiths Edison Van, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Vauxhall Ampera...
Specification
The Product Definition
Mechanical Behavior
Standard
IEC 62196-2
Insertion & Pullout Times
> 10,000 times
Charging Mode
Mode 3
Insertion & Pullout Times
> 150 N
Current Type
AC
Withstanding Impact Force
2t car run over force
Ambient Condition
Electrical Characteristics
Ambient Temperature(working)
-40℃~90℃
Rated Current
16A/32A
Ambient Temperature(storage)
-40℃~80℃
Rated Voltage
250Vac/480Vac
Ingress Protection
IP55(mated)
Insulation Resistance
<5,000MOhm
Cable Configuration
16A Single Phase
3*2.5mm2+1*0.75mm2
16A Three Phase
5*2.5mm2+1*0.75mm2
32A Single Phase
3*6mm2+1*0.75mm2
32A Three Phase
5*6mm2+1*0.75mm2

Electrical Performance

1. Rated current:16A/32A/63A
2. Operating voltage: 250V AC
3. Insulation resisitance:>1000M(DC500V)
4. Therminal temperature rise:<50K
5. Withstand voltage:2000V
6. Vibration resistance:Meet JDQ53.36.1.1-53.36.1.2 requirements
7. Contact impedance: 0.5m Max

Mechanical properties

1. Mechanical life: no-load plug in/pull out >10000 times
2. Insertion and Extration Force: 45N<F<80N
