IP54 SAEJ1772 Mode 3 Charging Cable Home Car Electric Charging Station
IP54 SAEJ1772 Mode 3 Charging Cable Home Car Electric Charging Station
Specifications
Brand Name :
TOPSUN
Model Number :
T-UL-EV32
Certification :
TUV, CE, UL
MOQ :
10 sets
Delivery Time :
5~10 days
Packaging Details :
Carton
Connector :
Type 1 to Type 2 Mlae
Rated Voltage :
220V~250V
Rated Current :
16A 1 phase
IP :
IP54
Standard :
SAE J1772 / IEC 62196
Certificate :
TUV, CE,UL
Working Temperature :
-30℃~+50℃
Working Life: :
more than 10000 times
Warrenty :
3 years
Description

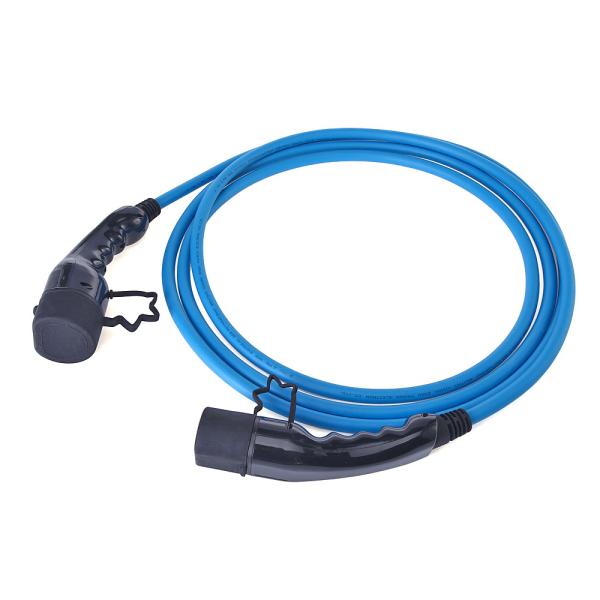

16A Type 1 to Type 2 EV charging cable

Parameters
Rated current: 16A
Working voltage: 220V AC
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact impedance: 0.5m Ω Max
Vibration resistance: Meet JDQ 53.3 requirements
Working temperature: -30°C ~+ 50°C
UL, TUV approved

Charging Cable Spec
TUV or UL 3*2.5mm2+2*0.5mm2
Cord length: 5m or customized
Orange or Black

Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber

Product Parameters

TypeT-UL-ev16-LTPlug the power80N<F<100N
ColorBlack/WhitePatch life≥10000
Rated Current16AFire ratingUL94 V-0
Rated Voltage220V~250VWaterproof ratingIP54
Resistance Voltage2000VOperating Temperature-30°C to50°C
Insulation resistance>1000MΩCable Specifications3*2.5mm2 -2*0.5mm2
Contact resistanceless than 0.5mΩThe main materialPC/Copper Alloy


Functional definition:

MarkFunctional Definition
1-(L1)AC power
2-(L2)AC power
3-(L3)AC power
4-(N)Neutral
5-(PE)PE
6-(CP)Control Confirmation
7-(PP)

Connection Confirmation


Why Choose Us:

1, we are manufacturer. And we had always adhered to the customer-oriented, excelsior as criterion, and win the market with quality to meet demand.
2, OEM Service Offered, Design Service Offered. We have one team with around 20 years’ experience and set up national standards for automotive connectors in China.

3, Fast delivery and 100% checking before shipment. Now we're exporting to worldwide with competitive prices , good quality and excellent services.
