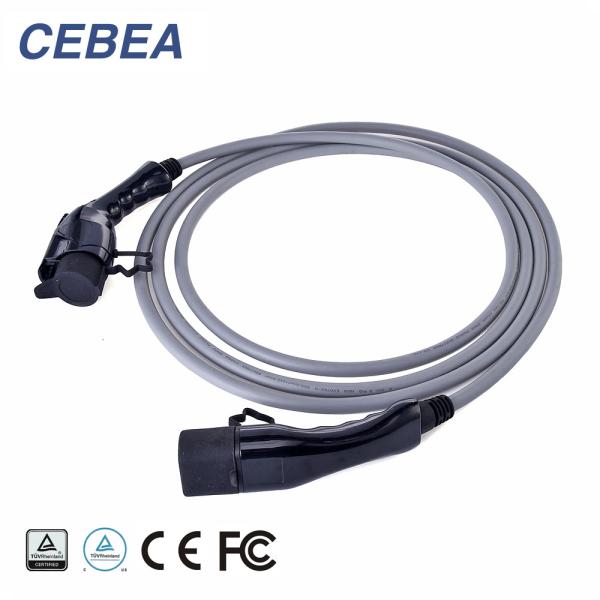

EVSE AC Charging EV Charger Cable Type 2 32A SAE J1172 IP54
EVSE AC Charging EV Charger Cable Type 2 32A SAE J1172 IP54
Specifications
Brand Name :
TOPSUN
Model Number :
T-EN-EV32
Certification :
TUV, CE, UL
MOQ :
10 sets
Delivery Time :
5~10 days
Packaging Details :
Carton
Connector :
SAE J1172
Rated Voltage :
220V~250V
Rated Current :
32A 1 phase
IP :
IP54
Standard :
IEC 62196
Color :
Blue, Green, Orange, Black, White, Grey
Working Life: :
more than 10000 times
Warrenty :
3 years
Description

EVSE charger AC Level 2 Fast Charging Type 1 32A Portable EV Charger SAE J1172 ev charging cable

Features:

* Easy: Charge at home, at work or anywhere with the socket. No installation is required, just an intuitive pairing process. Plug and charge, wherever you are.

*Safe: Protecting Earthing detection

*Visual: LCD screen show the real-time charging data
Product Paramenters
Product Definition
Stadnard
IEC 62196-2:2016
Charging Mode
Mode 2
Power Plug Type
Schuko/Other
Current Type
AC
Housing Color
white/black
Cable Color
Black
Electric Parameter
Rated Current
16A, 1Phase
Rated Voltage
220V-250V
Power Pin Numbert
3 ( L1, N, PE )
Signal Pin Numbert
2 ( PP, CP )
Signal Pin Current
2A
Insulation Resistance
≥5MΩ
Ambient condition
AmbientTemperature
( working )
-30℃--50℃
AmbientTemperature
( storage )
-40℃--80℃
Ingress Protection
IP54
Mechanical Performance
Insertion & Pullout Times
＞10000 times
Insertion & Pullout Force
45N～100N
Withstanding Impact Force
Affordable 1 meter height fell or 2 ton car run over presure
Major Material
Plug Material
Reinforced Thermoplastic, UL94V-0
Housing Material
Reinforced Thermoplastic, UL94V-0
Cap Material
PUR
Pin Material
Copper Alloy, Silver Plated
Cable Configuration
Single Phase 16A
3*2.5mm²+1*0.5mm²
Cable Style
flat cable
Cable Material
TPE

Functional definition:

Nissan LEAF, Nissan eNV-2000, VW eGolf Chevy Volt, Chevy Bolt, Chevy Spark Toyota Prius Plug-In, Prius Prime,Toyota Rav4 EV Hyundai Ioniq,Kia Soul EV, Mercedes B Class Electric Drive,BMW i3 and i8 Ford Focus Electric, Ford C-Max Energy, Ford Fusion Energy, Fiat 500e ZERO motorcycle , Brammo motorcycle ,Smart Electric Drive, Karma Fisker, Mitsubishi iMiev, Cadillac ELR Porsche Cayenne S-E, Porsche Panamera S-E ,Honda Accord Plug-In Hybrid, Honda Fit EV ,Smart ,Honda
Tesla Model S, Tesla Model X (* need to use with Tesla charging adapter)
