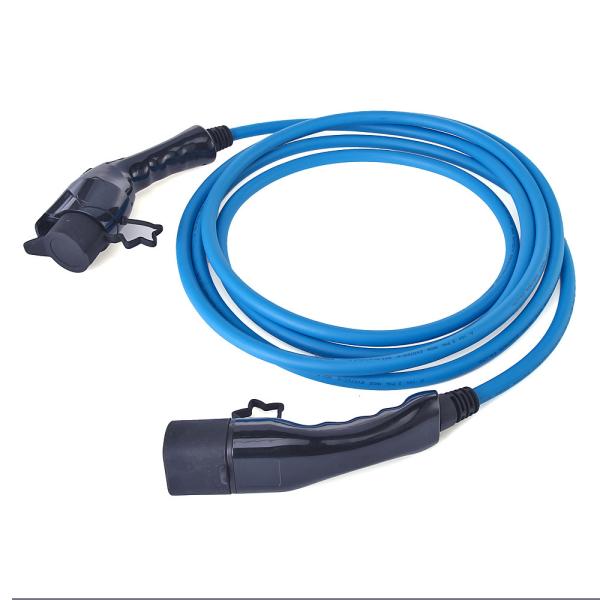

16.4ft IP66 Level 3 Evse Charging Cable Type 1 Type 2 Charger 100VAC
16.4ft IP66 Level 3 Evse Charging Cable Type 1 Type 2 Charger 100VAC
Specifications
Brand Name :
TOPSUN
Model Number :
T-EN-EV32
Certification :
TUV, CE, UL
MOQ :
10 sets
Delivery Time :
5~10 days
Packaging Details :
Carton
connector standard :
type 2 to type 2
Rated Voltage :
220V~250V
length :
5m (16.4ft)
packing size :
15.7*15*3.15(in)
Standard :
IEC 62196
IP Grade :
IP65 IP66
Working Temperature :
-30℃~+50℃
Working Life: :
more than 10000 times
Warrenty :
3 years
Description

Level 3 EV Charger Type 2 To Type 2 EV Charging Cable

CAUTION:
1. Don't submerge the ev charging box in water.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A scoket. It is suggested that the power distribution is done by the professionals.
7.Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this ev chargingbox when the cable is damaged.
9. The ev charging box is only for ev charging using.
10. Don't use this device with an extension cord or adaptor.

Input & Output
Input voltage/Output voltage
100~250V AC
Max. output current
16A
Input frequency
47~63Hz
Charging interface type
Type2 Female to Male
Max. output power
11KW
Protection
Over voltage protection
yes
Earth leakage protection
yes
Under voltage protection
yes
Over-temp protection
yes
Over load protection
yes
Lightning protection
yes
Short circuit protection
yes
Function and Accessory
Ethernet/WIFI/4G
No
LED Indicator light
No
LCD
No
Intelligent power adjustment
yes
RCD
Type A
RFID
No
Working environment
Protection degree
IP54
Maximum altitude
<2000m
Environment temperature
-40℃ ~ +50℃
Cooling
Natural air cooling
Relative humidity
0-95% non-condensing
Standby power consumpiton
<8W
Package
Dimension (W/H/D)
249/104/48mm
Weight
3KG
Certificate
CE

FEATURES OF PLUG


Integrated Plug
The intergrated plug is designed to be more rugged and even could resist the rolling and crash of the car.
IP66 ensure the perfect work outdoors in any environment including rain and snow.

Heat Sensor
Heat sensor in the plug is equipped to detect the temperature of the car-end and the wall-end plug, which could fundamentally guarantees the safety.


Arcing Design
Owing to the special design, pins could be automatically cleaned during each plug-in process to ensure that no arcing occurs during use.

Long Working Life
Compatible with all types of electric vehicles that meet the type1 /2 standard, with a service life of more than 50,000 times
