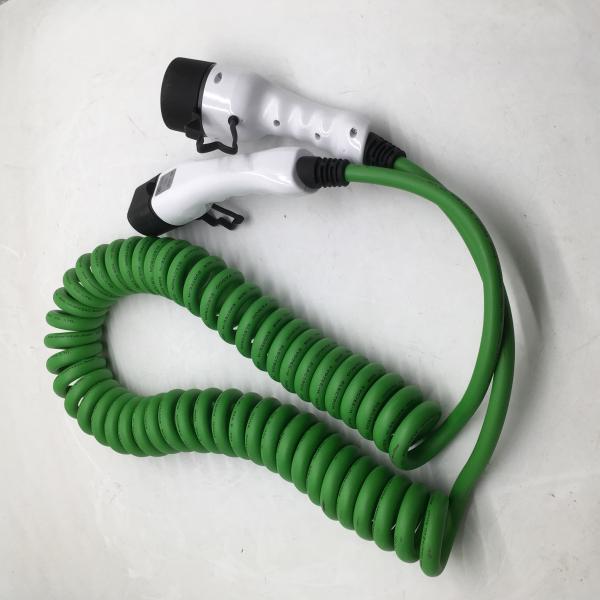

22kw IP44 EV Charger Cable Type 2 To Type 2 Electric Vehicle Charging Plug
22kw IP44 EV Charger Cable Type 2 To Type 2 Electric Vehicle Charging Plug
Specifications
Brand Name :
TOPSUN
Model Number :
T-EN-EV32
Certification :
TUV, CE, UL
MOQ :
10 sets
Delivery Time :
5~10 days
Packaging Details :
Carton
Name :
EV Electric Car Charger
Connector :
Type 2 To Type 2
Rated Voltage :
220V~250V
Rated Current :
32A 1 phase
Power :
22KW
Standard :
LEC 62196-2
Insulation resistance :
> 1000M Ω
Working Life: :
more than 10000 times
Warrenty :
36 Month Warranty
Description

12 Month Warranty 22kw Type 2 To Type 2 Electric Car Charger Iec 62196-2 Ev Plug Charging Cable

Product Features

The Features of Zencar EV Cable

1. Standard Connector. It can be identified by EV (with Type 2 inlet) correctly and charge effectively.
2. Rugged design. Its structural strength is sufficient enough to support the rolling of an electric car.
3. Unique Arc Extinguishing technique makes sure that there won't have any electric sparks when plugging in and plugging out.
4. Safe & Reliable. The cable is made of flame-retardant TPE (TPU) material, which can withstand the direct fire combustion within a safe time.
5. Durable. The advanced Crimping Technology ensures a working life of over 3000 times safe plugging in or out without any off-line error.
Product Details Sho

Type 1 Plug & Socket
16A - 32A - 70A
Type 2 Plug & Socket
16A - 32A - 63A
Cable
Single and three phase with different color
Warranty
12 month
Certificate
TUV - CE - Rohs
Pin
Copper alloy, Silver
IP Grade
IP 44
Operating Voltage
250V
Withstand Voltage
2000V
Operating Temperature
-30℃~50℃

Product Parameters

Type EN-ev32-LT Plug the power 80N<F<100N
Color Black/White Patch life ≥10000
Rated Current 32A Fire rating UL94 V-0
Rated Voltage 220V~250V Waterproof rating IP54
Resistance Voltage 2000V Operating Temperature -30°C to50°C
Insulation resistance >1000MΩ Cable Specifications 3*6mm2 -2*0.5mm2
Contact resistance less than 0.5mΩ The main material PC/Copper Alloy

Functional definition:

Mark Functional Definition
1-(L1) AC power
2-(L2) AC power
3-(L3) AC power
4-(N) Neutral
5-(PE) PE
6-(CP) Control Confirmation
7-(PP)

Connection Confirmation

Why Choose Us:

1, we are manufacturer. And we had always adhered to the customer-oriented, excelsior as criterion, and win the market with quality to meet demand.

2, OEM Service Offered, Design Service Offered. We have one team with around 20 years’ experience and set up national standards for automotive connectors in China.

3, Fast delivery and 100% checking before shipment. Now we're exporting to worldwide with competitive prices , good quality and excellent services.
