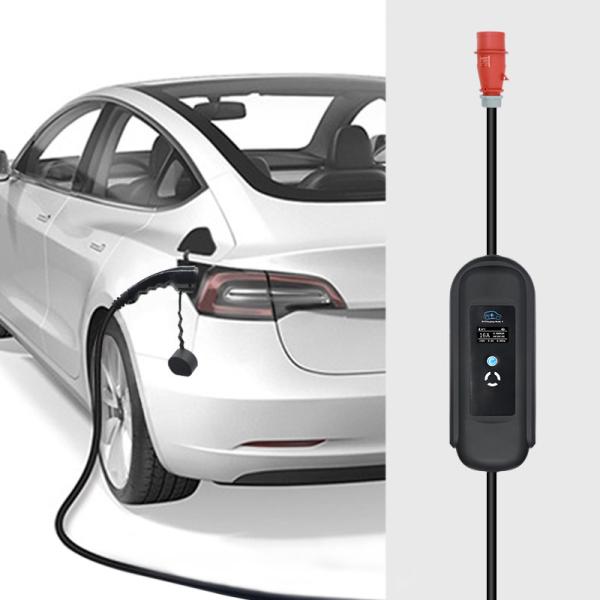

13A 3 Phase Car EV Charger IEC 62196 10A Level 2 Electric Vehicle 1415V
13A 3 Phase Car EV Charger IEC 62196 10A Level 2 Electric Vehicle 1415V
Specifications
Product Name :
EV Charger Charging Station
Cable Length :
5M(16.4ft)
Charging Capacity :
Up To 22KW
Charging standard :
IEC 62196-2
Operating Temperature :
-30℃~+50℃
Current :
8A 10A 13A 16A 32A
nsulation resistance :
>1000MΩ
Charging Standard :
level 1 level 2 level 3
Description

3 Phase 22K EV Wall Mount Box Fast Electric Car EV Charger Charging Station

Mechanical Properties
Mechanical life: no-load plug in 1 pull out > 10000times
Impact of external force :can afford 1m drop and 2t vehicle run over pressure

Electrical Performance
The rated current:16A(8/10/13/16A) 32A(8/10/13/16/32A)
The ratedvoltage:250V1415V
Insulation resistance:> 1000MQ ( DC500V) Terminal temperature rise: <50K
Withstand voltage:2000V Contact Resistance:0 5mQMax
Coupled insertion force: > 45N < 80N Operating temperature: 30C ~+50 C

Control Box Function
Leakage protection (restart recovery)
Over voltage and under -voltage protection (self- check recovery)
Lightning protection
Over current protection
Overheating protection
Black/other colors need to be customized

Applied Materials
Shell Material:thermoplastics flame retardant grade UL94-voContact bush: Copper alloy, silver plating
Pin: Copper alloy silver + thermoplastic on the top

Features
1. Conform to the provisions and requirements of 62196-2 IEC 2010 SHEET
2-lle.
2. Product assembly conforms to IEC 61851-1 -2010 charging mode 3 connection mode B2.3.Reliable materials,flame retardant,pressure resis-
tance, abrasion resistance ,impact resistance,lmpact resistance and oil resistance.
3. Excellent protection performance,IP65 protection level of the plug (work-

Wallbox Product parameters
Product Name
7kw 11kw 22kw Wallbox AC Fast Electric EV Charging Station EV Car Charger
standrd
IEC standard
certificates
TUV,UKCA,CE,FCC
Product Type
FE-AM3-16
FE-AM3-16P3
FE-AM3-32
FE-AM3-32P3
AC Voltage Power Input
240v±10%
380V±10%
240v±10%
380V±10%
AC Power Output
16A/3.5kw
16A/11KW
32A/7KW
32A/22KW
Current Adjustable
8-16A
8-16A
8-32A
8-32A
Rated Frequency
50/60HZ
Charging Connector
IEC 62196-2 (Type 2/Mennekes) plug
Connector Type
SAE J1772 (Type 1)
IEC 62196-2 (Type 2)
Internet Connection
NFC/wifi
Insulation resistance:
>1000MΩ(DC500V)
Contact Resistance
0.5mΩMax
Operating temperature:-
-30℃~+50℃
Protection:Type B RCD
Over Voltage Protection
yes
Under Voltage Protection
yes
Over Load Protection
yes
Short Circuit Protection
yes
Earth Leakage Protection
yes
Ground Protection
yes
Over-temp Protection
yes
Surge Protection
yes
Charging Cable Length
5m or Customize Length
Application:
AC Home Charging
IP Degree
IP55
Control:
Auto/Button/Card
Withstand voltage:
2000V
Contact Resistance
0.5mΩMax
Mechanical life:
no-load plug in / pull out > 10000times
